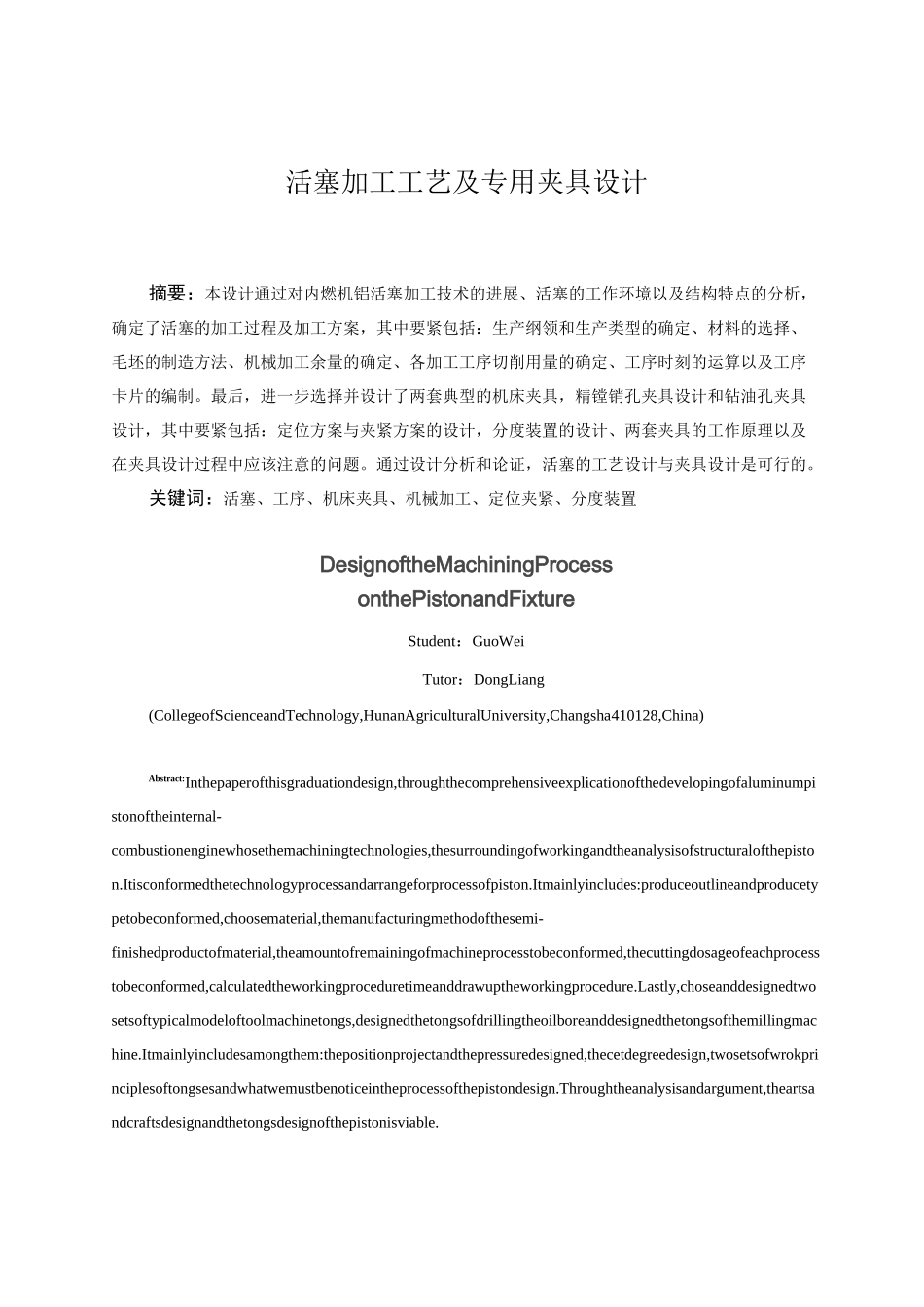

活塞加工工艺及专用夹具设计摘要:本设计通过对内燃机铝活塞加工技术的进展、活塞的工作环境以及结构特点的分析,确定了活塞的加工过程及加工方案,其中要紧包括:生产纲领和生产类型的确定、材料的选择、毛坯的制造方法、机械加工余量的确定、各加工工序切削用量的确定、工序时刻的运算以及工序卡片的编制。最后,进一步选择并设计了两套典型的机床夹具,精镗销孔夹具设计和钻油孔夹具设计,其中要紧包括:定位方案与夹紧方案的设计,分度装置的设计、两套夹具的工作原理以及在夹具设计过程中应该注意的问题。通过设计分析和论证,活塞的工艺设计与夹具设计是可行的。关键词:活塞、工序、机床夹具、机械加工、定位夹紧、分度装置DesignoftheMachiningProcessonthePistonandFixtureStudent:GuoWeiTutor:DongLiang(CollegeofScienceandTechnology,HunanAgriculturalUniversity,Changsha410128,China)Abstract:Inthepaperofthisgraduationdesign,throughthecomprehensiveexplicationofthedevelopingofaluminumpistonoftheinternal-combustionenginewhosethemachiningtechnologies,thesurroundingofworkingandtheanalysisofstructuralofthepiston.Itisconformedthetechnologyprocessandarrangeforprocessofpiston.Itmainlyincludes:produceoutlineandproducetypetobeconformed,choosematerial,themanufacturingmethodofthesemi-finishedproductofmaterial,theamountofremainingofmachineprocesstobeconformed,thecuttingdosageofeachprocesstobeconformed,calculatedtheworkingproceduretimeanddrawuptheworkingprocedure.Lastly,choseanddesignedtwosetsoftypicalmodeloftoolmachinetongs,designedthetongsofdrillingtheoilboreanddesignedthetongsofthemillingmachine.Itmainlyincludesamongthem:thepositionprojectandthepressuredesigned,thecetdegreedesign,twosetsofwrokprinciplesoftongsesandwhatwemustbenoticeintheprocessofthepistondesign.Throughtheanalysisandargument,theartsandcraftsdesignandthetongsdesignofthepistonisviable.andclamping;indexingdevice1绪论1.1本课题的研究意义,国内外研究现状、水平和进展趋势活塞是发动机中的重要零件之一。它在工作时承担发动机汽缸内高温气体的压力,并通过活塞销、连杆将压力传给曲轴。因此活塞是在高温、高压和连续变负载下工作的。发动机活塞的材料为铝合金,它的导热性好、重量轻...
