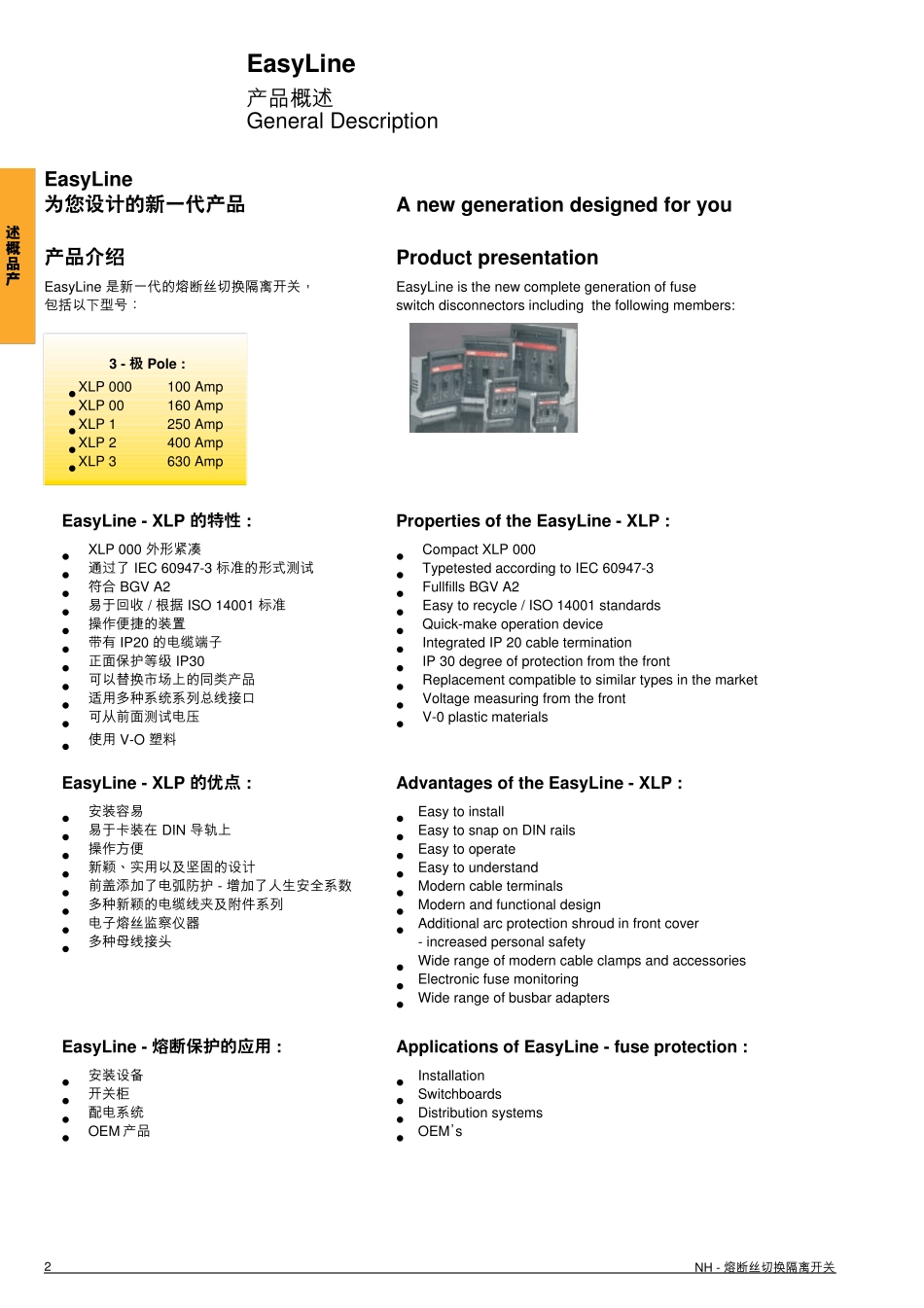

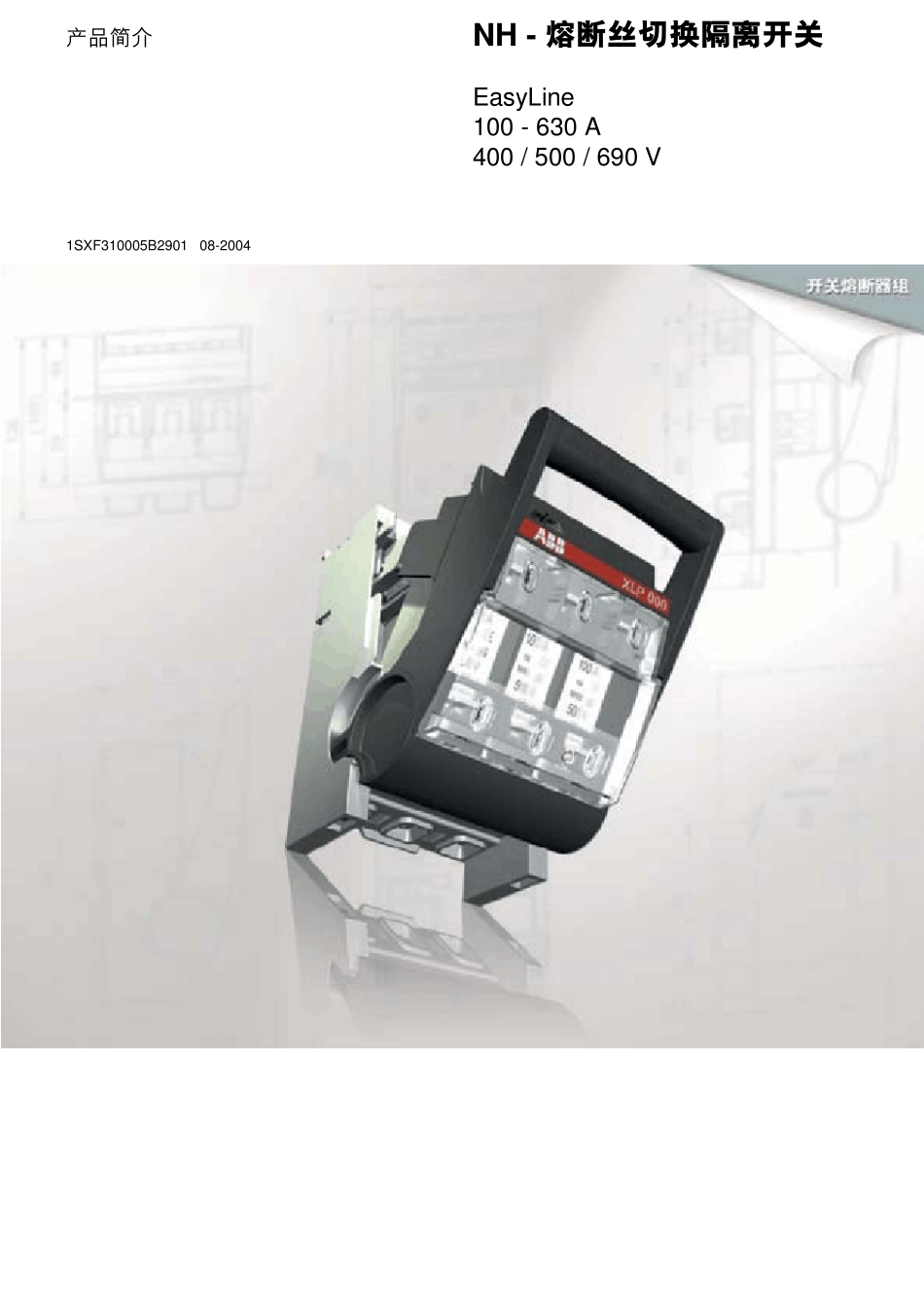

N H - 熔斷絲切換隔離開關EasyLine100 - 630 A400 / 500 / 690 V產品簡介1SXF310005B2901 08-20042產品概述NH - 熔斷絲切換隔離開關EasyLine產品概述General DescriptionEasyLine為您設計的新一代產品A new generation designed for you產品介紹Product presentationEasyLine 是新一代的熔斷絲切換隔離開關，EasyLine is the new complete generation of fuse包括以下型號：switch disconnectors including the following members: 3 - 極 Pole :● XLP 000100 Amp● XLP 00160 Amp● XLP 1250 Amp● XLP 2400 Amp● XLP 3630 AmpEasyLine - XLP 的特性 :Properties of the EasyLine - XLP :●XLP 000 外形緊湊●Compact XLP 000●通過了 IEC 60947-3 標準的形式測試●Typetested according to IEC 60947-3●符合 BGV A2●Fullfills BGV A2●易於回收 / 根據 ISO 14001 標準●Easy to recycle / ISO 14001 standards●操作便捷的裝置●Quick-make operation device●帶有 IP20 的電纜端子●Integrated IP 20 cable termination●正面保護等級 IP30●IP 30 degree of protection from the front●可以替換市場上的同類產品●Replacement compatible to similar types in the market●適用多種系統系列總線接口●Voltage measuring from the front●可從前面測試電壓●V-0 plastic materials●使用 V-O 塑料EasyLine - XLP 的優點 :Advantages of the EasyLine - XLP :●安裝容易●Easy to install●易於卡裝在 DIN 導軌上●Easy to snap on DIN rails●操作方便●Easy to operate●新穎、實用以及堅固的設計●Easy to understand●前蓋添加了電弧防護 - 增加了人生安全系數●Modern cable terminals●多種新穎的電纜線夾及附件系列●Modern and functional design●電子熔絲監察儀器●Additional arc protection shroud in front cover●多種母線接頭- increased personal safety●Wide range of modern cable clamps and accessories●Electronic fuse monitoring●Wide range of busbar adaptersEasyLine - 熔斷保護的應用 :Applications of EasyLine - fuse protection :●安裝設備●Installation●開關櫃●Switchboards●配電系統●Distribution sy...
