ADS1115应用电路图

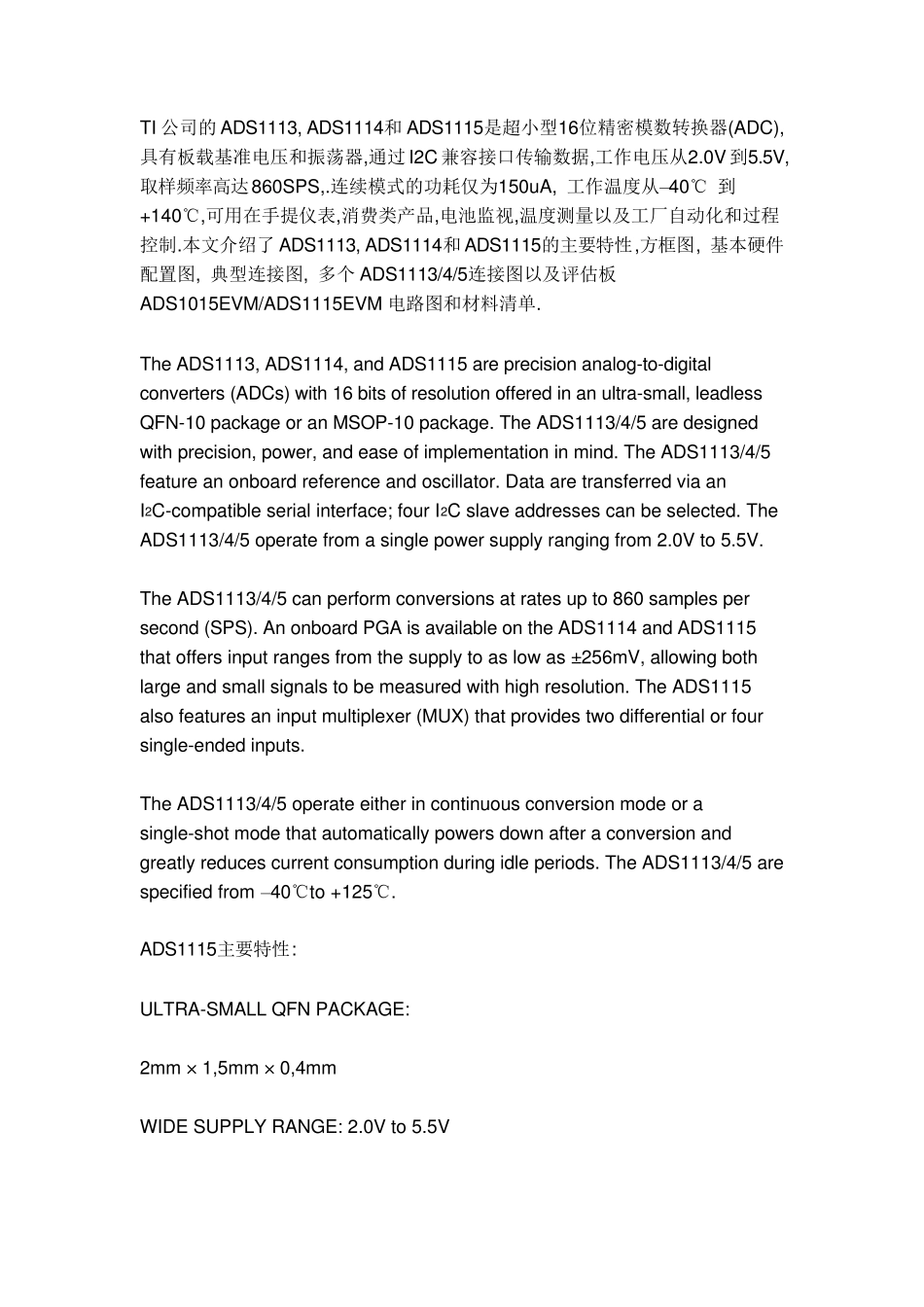

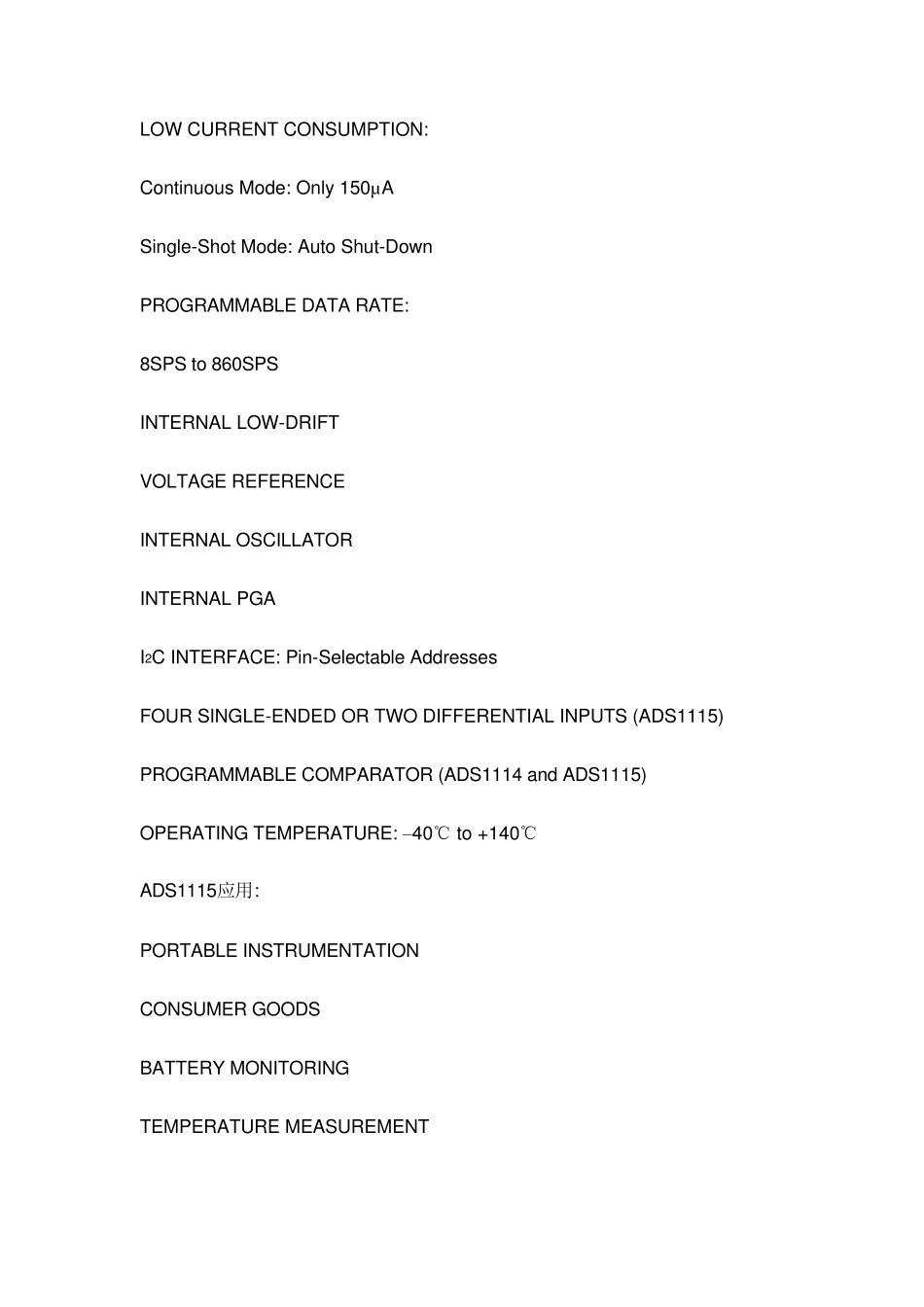

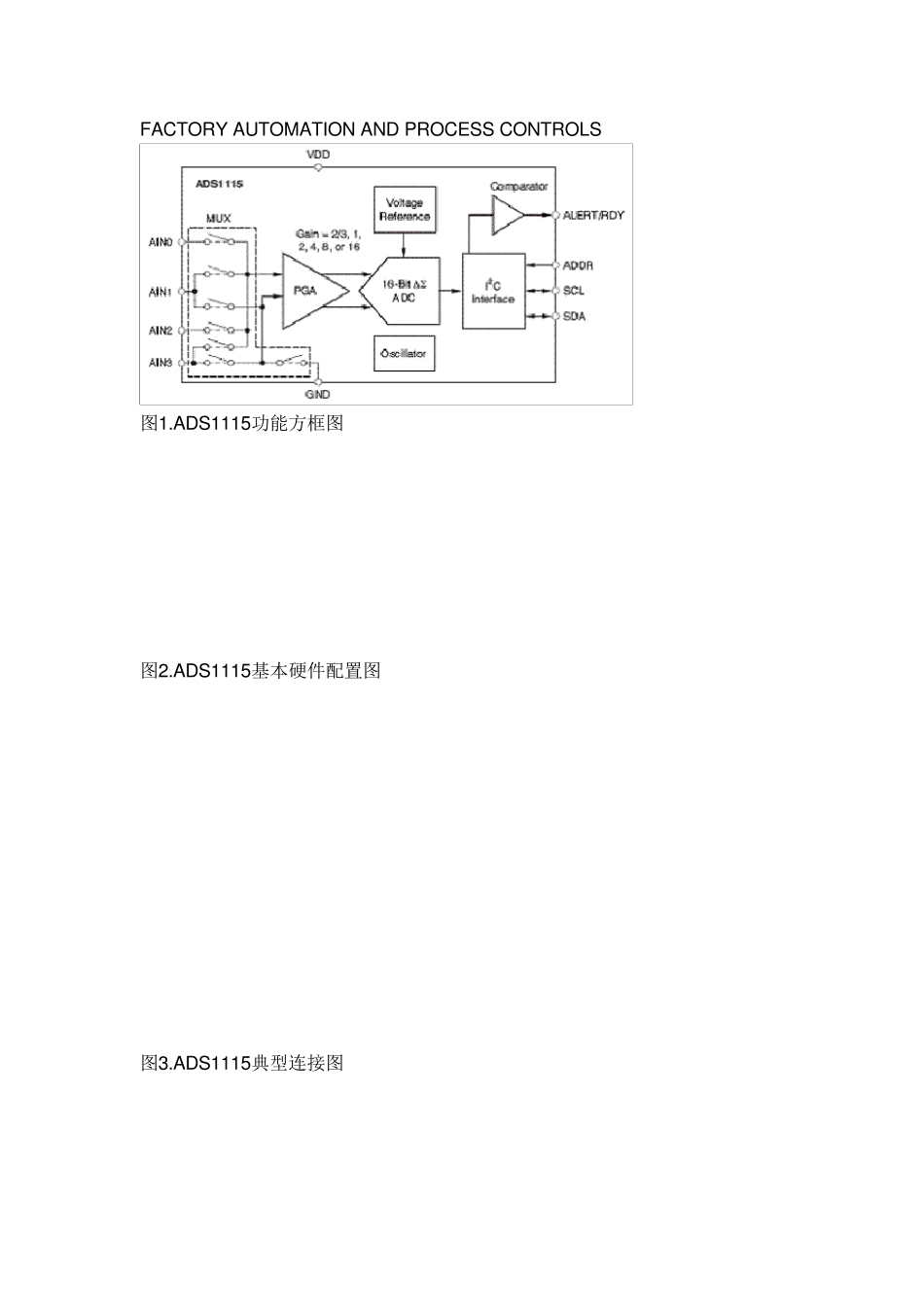

TI 公司的ADS1113, ADS1114和ADS1115是超小型16位精密模数转换器(ADC),具有板载基准电压和振荡器,通过I2C 兼容接口传输数据,工作电压从2.0V 到5.5V,取样频率高达860SPS,.连续模式的功耗仅为150uA, 工作温度从–40℃ 到+140℃,可用在手提仪表,消费类产品,电池监视,温度测量以及工厂自动化和过程控制.本文介绍了 ADS1113, ADS1114和ADS1115的主要特性,方框图, 基本硬件配置图, 典型连接图, 多个 ADS1113/4/5连接图以及评估板ADS1015EVM/ADS1115EVM 电路图和材料清单. The ADS1113, ADS1114, and ADS1115 are precision analog-to-digital converters (ADCs) with 16 bits of resolution offered in an ultra-small, leadless QFN-10 package or an MSOP-10 package. The ADS1113/4/5 are designed with precision, power, and ease of implementation in mind. The ADS1113/4/5 feature an onboard reference and oscillator. Data are transferred via an I2C-compatible serial interface; four I2C slave addresses can be selected. The ADS1113/4/5 operate from a single power supply ranging from 2.0V to 5.5V. The ADS1113/4/5 can perform conversions at rates up to 860 samples per second (SPS). An onboard PGA is available on the ADS1114 and ADS1115 that offers input ranges from the supply to as low as ±256mV, allowing both large and small signals to be measured with high resolution. The ADS1115 also features an input multiplexer (MUX) that provides two differential or four single-ended inputs. The ADS1113/4/5 operate either in continuous conversion mode or a single-shot mode that automatically powers down after a conversion and greatly reduces current consumption during idle periods. The ADS1113/4/5 are specified from –40℃to +125℃. ADS1115主要特性: ULTRA-SMALL QFN PACKAGE: 2mm × 1,5mm × 0,4mm WIDE SUPPLY RANGE: 2.0V to 5.5V LOW CURRENT CONSUMPTION: Continuous Mode: Only 150µA Single-Shot Mode: Auto Shut-Down PROGRAMMABLE DAT...
