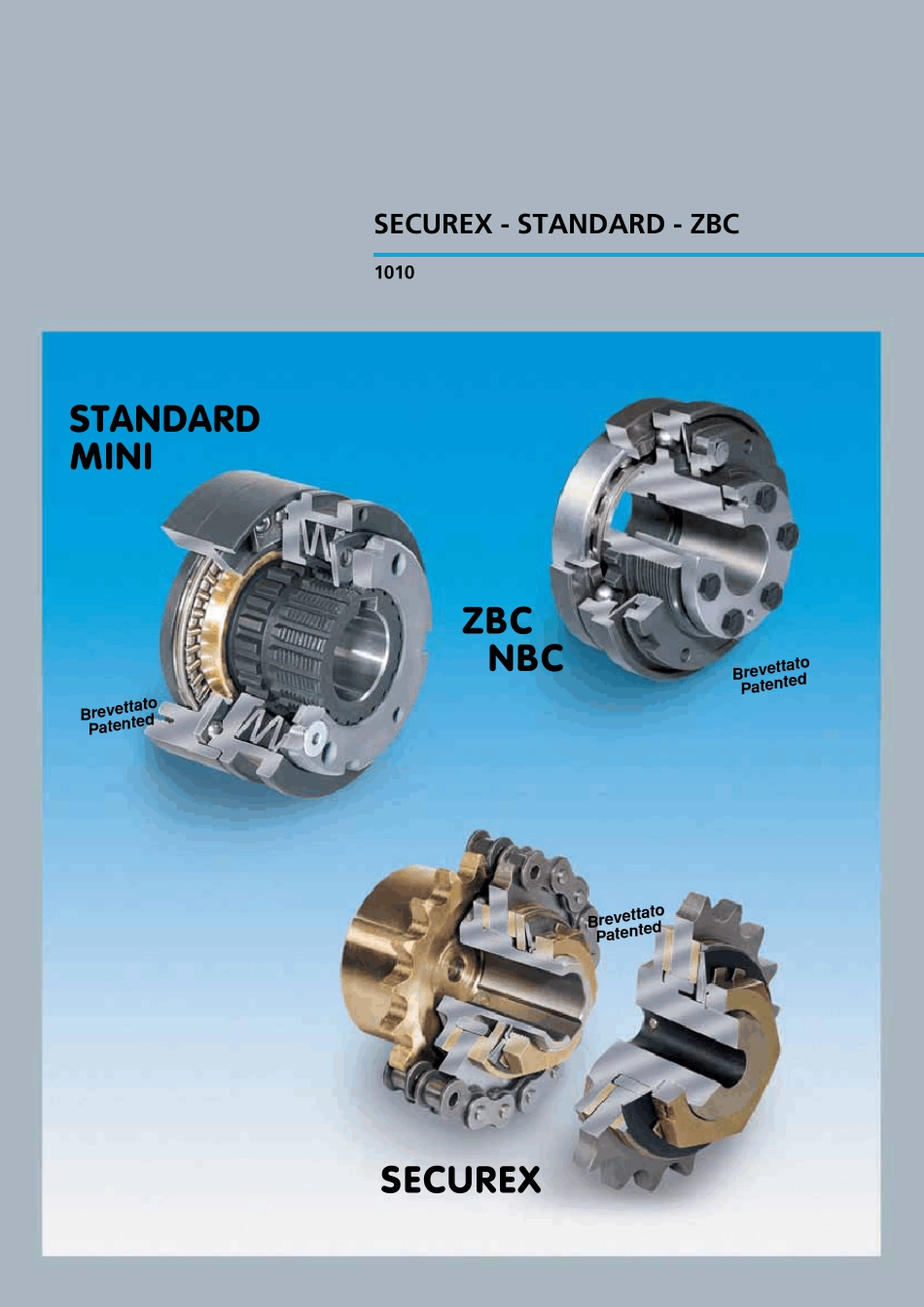

Brev ettatoPatentedSTANDARDMINISECUREXBrev ettatoPatentedBrev ettatoPatentedZBC NBCSECUREX - STANDARD - ZBC10102Fig.118N° taccheNr of indentationsOT (Nm )CoppiaTorquemaxAA1B1BminINNESTATO - ENGAGEDABINNESTATO - ENGAGEDB1DISINNESTATO - DISENGAGEDA1DISINNESTATO - DISENGAGEDTmin.INNESTATOENGAGEDTmax.INNESTATOENGAGED000NmT(Nm)Nr of indentationsN° taccheTorqueCoppiaCOPPIA MASSIMA - MAXIMUM TORQUECOPPIA MINIMA - MINIMUM TORQUEZBC - NBCPRINCIPIO DI FUNZIONAMENTO - HOW IT WORKS* d max con sede chiavetta DIN 6885/3 - d max with keyway seat according to DIN 6885/3➀ Gioco angolare fra entrata e uscita tendente a zero - Angular Backlash between input and output close to zero.➁ SAFEGUARD Si reinserisce automaticamente in posizione angolare casuale quando il sovraccarico è rimosso. Per velocità medio-alte.SAFEGUARD R per coppie alte e velocità basse.Re-engage automatically in a random angular position when the overload is removed. For Medium-High Speed.SAFEGUARD R for high torque - low speed.➂ SYNCHRON Si reinserisce automaticamente in posizione fissa ogni 360°. Per velocità medie.Re-engage automatically after 360° in the same angular position every time. For medium speed.➃ SAFE LIFTING In caso di sovraccarico l'interuttore fornisce un segnale senza interrompere la trasmissione di coppia. Per velocità molto alte.In case of overload the switch give a signal without interruption of the torque transmission. For very high speed.➄ ROTA FREE In caso di sovraccarico entrata e uscita si sganciano e l’uscita rallenta folle. Per velocità molto alte. Reinserimento manuale.In case of overload input and output are disconnected and output slow down idle. For very high speeds. Manual re-engagement.TABELLA GENERALE PER SELEZIONE - SELECTION GENERAL CH...
