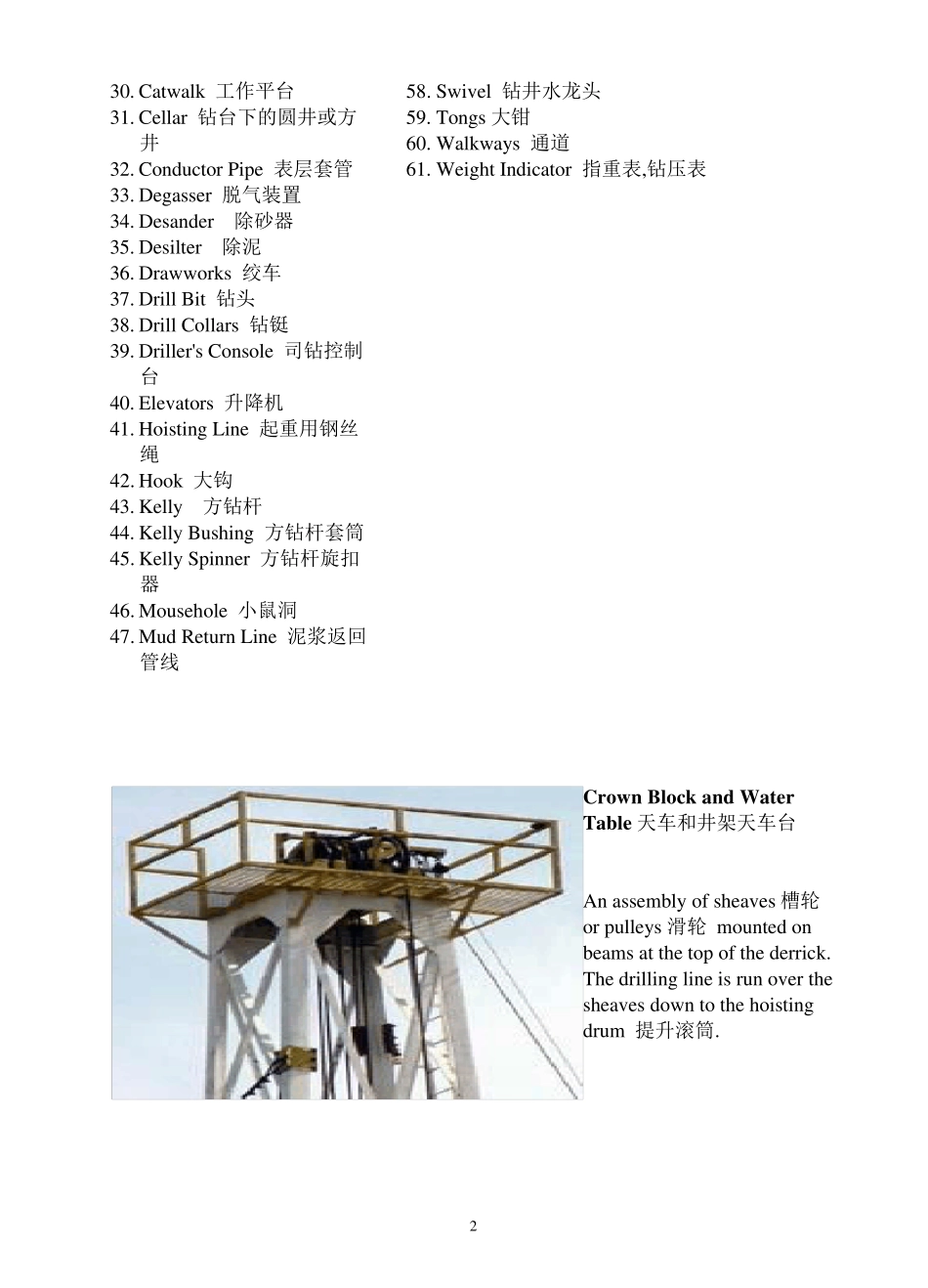

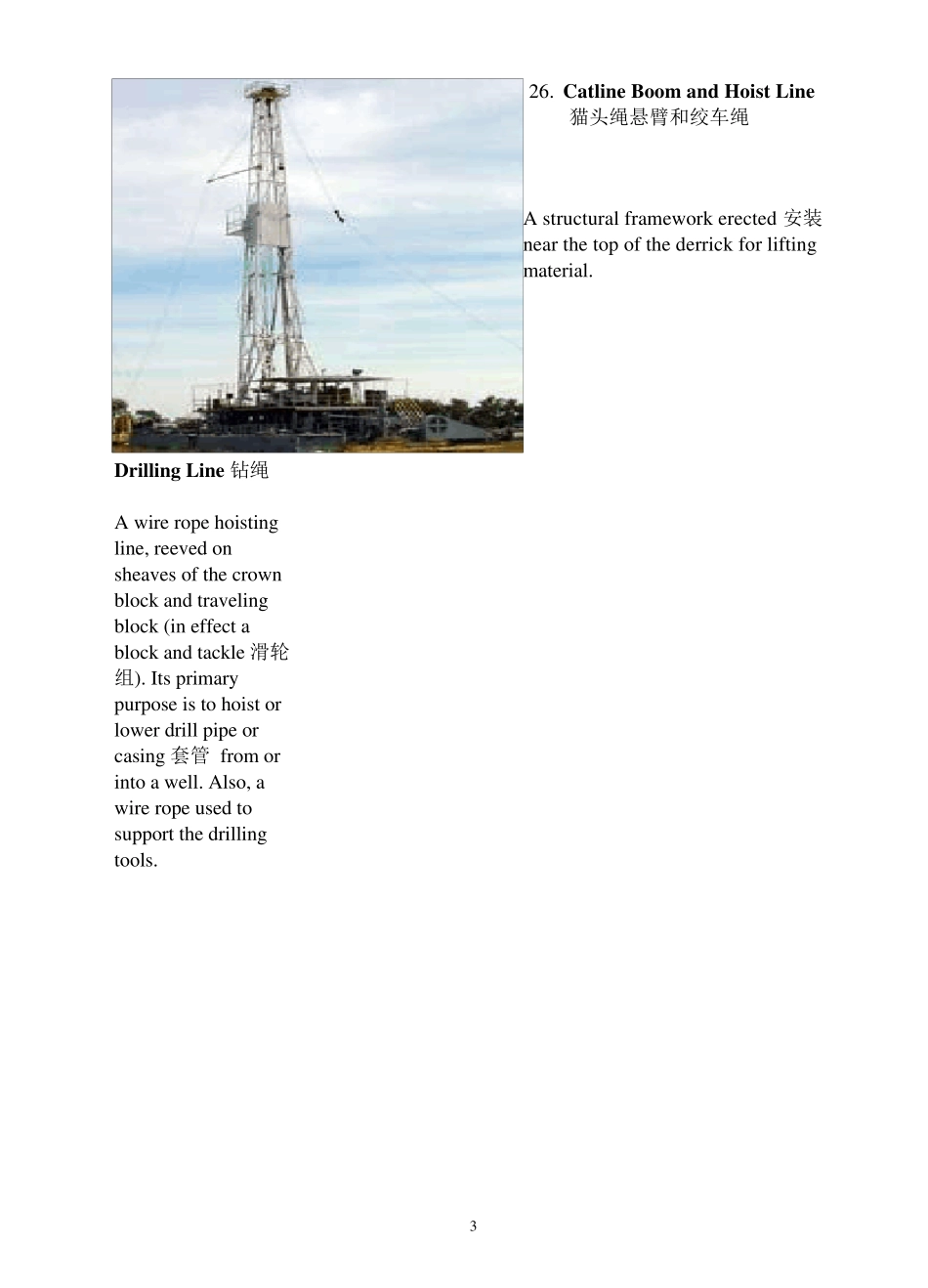

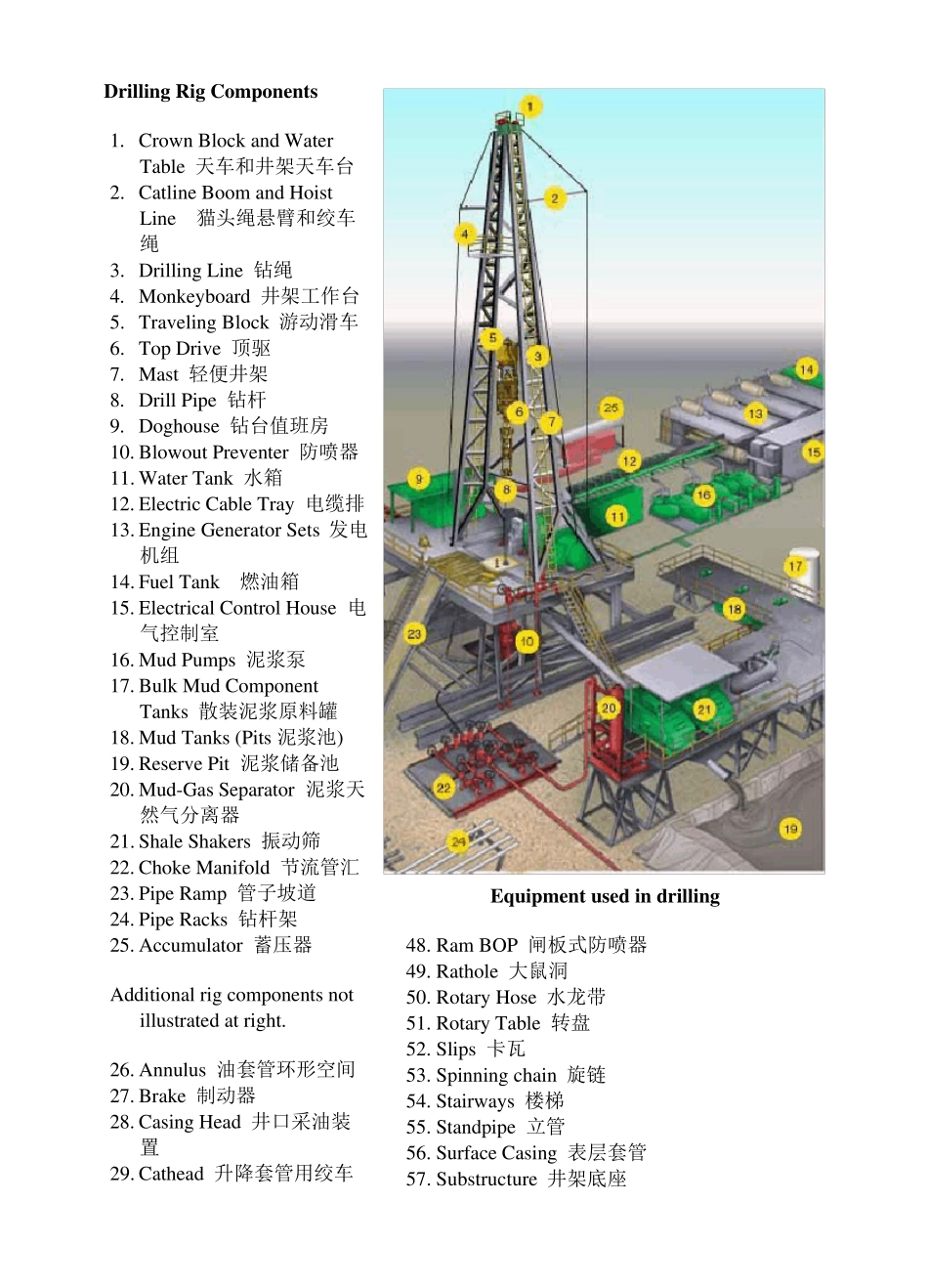

Drilling Rig Components 1. Crown Block and Water Table 天车和井架天车台 2. Catline Boom and Hoist Line 猫头绳悬臂和绞车绳 3. Drilling Line 钻绳 4. Monkeyboard 井架工作台 5. Traveling Block 游动滑车 6. Top Drive 顶驱 7. Mast 轻便井架 8. Drill Pipe 钻杆 9. Doghouse 钻台值班房 10. Blowout Preventer 防喷器 11. Water Tank 水箱 12. Electric Cable Tray 电缆排 13. Engine Generator Sets 发电机组 14. Fuel Tank 燃油箱 15. Electrical Control House 电气控制室 16. Mud Pumps 泥浆泵 17. Bulk Mud Component Tanks 散装泥浆原料罐 18. Mud Tanks (Pits 泥浆池) 19. Reserve Pit 泥浆储备池 20. Mud-Gas Separator 泥浆天然气分离器 21. Shale Shakers 振动筛 22. Choke Manifold 节流管汇 23. Pipe Ramp 管子坡道 24. Pipe Racks 钻杆架 25. Accumulator 蓄压器 Additional rig components not illustrated at right. 26. Annulus 油套管环形空间 27. Brake 制动器 28. Casing Head 井口采油装置 29. Cathead 升降套管用绞车 Equ ipment u sed in drilling 48. Ram BOP 闸板式防喷器 49. Rathole 大鼠洞 50. Rotary Hose 水龙带 51. Rotary Table 转盘 52. Slips 卡瓦 53. Spinning chain 旋链 54. Stairways 楼梯 55. Standpipe 立管 56. Surface Casing 表层套管 57. Substructure 井架底座 2 Crow n Block and Water Table 天车和井架天车台 An assembly of sheaves 槽轮 or pulleys 滑轮 mounted on beams at the top of the derrick. The drilling line is run over the sheaves down to the hoisting drum 提升滚筒. 30. Catwalk 工作平台 31. Cellar 钻台下的圆井或方井 32. Conductor Pipe 表层套管 33. Degasser 脱气装置 34. Desander 除砂器 35. Desilter 除泥 36. Drawworks 绞车 37. Drill Bit 钻头 38. Drill Collars 钻铤 39. Driller's Console 司钻控制台 40. Elevators 升降机 41. Hoisting Line 起重用钢丝绳 42. Hook 大钩 43. Kelly 方钻杆 44. Kelly Bushing 方钻杆套筒 45. Kelly Spinner 方钻杆旋扣器 46. Mous...
