ECLIPS成像测井曲线名称及含义VIP专享

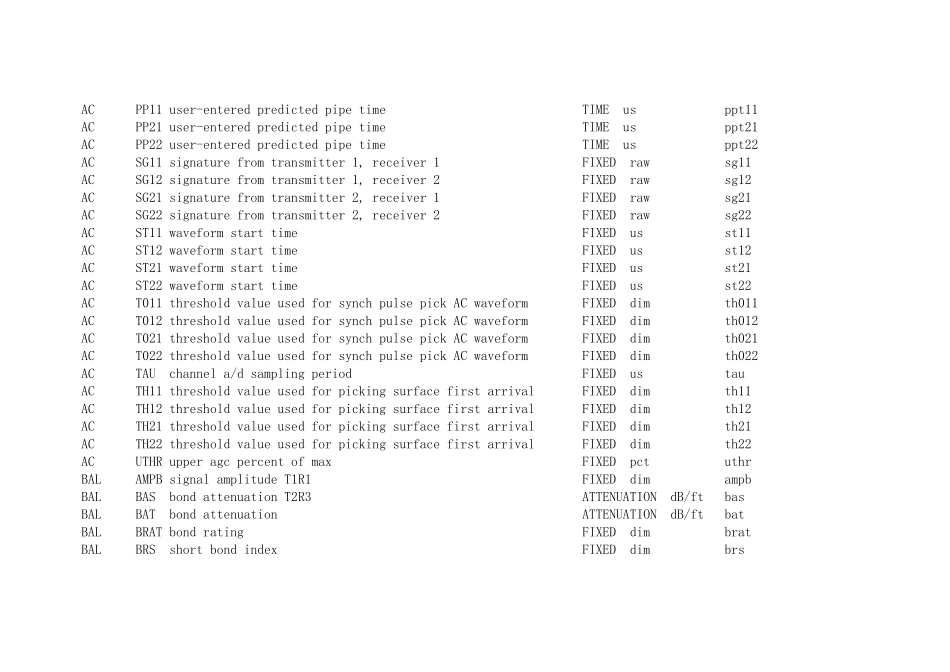

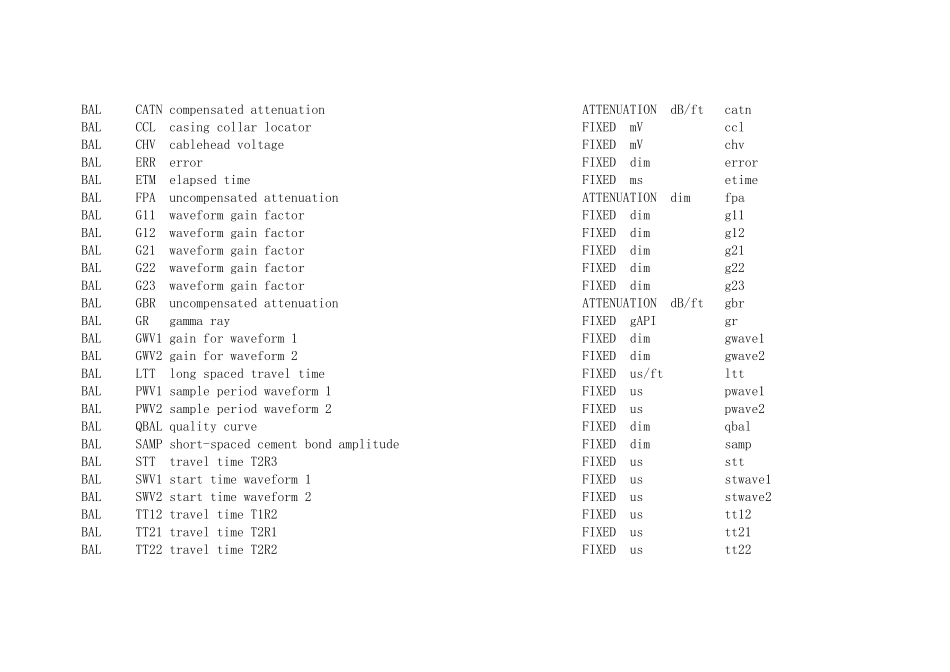

Baker Atlas ECLIPS 成像测井曲线名称及含义 方法 LIS 名称 含义 单位 ECLIPS 名称 4CAL C13 caliper axis from arms 1 and 3 DIAMETER in c13 4CAL C24 caliper axis from arms 2 and 4 DIAMETER in c24 AC AM11 amplitude for 5 foot spacing FIXED dim amp11 AC AM12 amplitude T1R2 FIXED dim amp12 AC AM21 amplitude T2R1 FIXED dim amp21 AC AM22 amplitude T2R2 FIXED dim amp22 AC DT interval transit time over 24 inch interval ACOU-SLOW us/ft dt AC FA12 fixed gate amplitude in cbl FIXED raw fga12 AC FA22 fixed gate amplitude in cbl FIXED raw fga22 AC FP11 fixed gate pick for cbl FIXED us fgp11 AC FP12 fixed gate pick for cbl FIXED us fgp12 AC FP21 fixed gate pick for cbl FIXED us fgp21 AC FP22 fixed gate pick for cbl FIXED us fgp22 AC GD11 waveform gain factor (db) in analog acoustic FIXED dB gnd11 AC GD12 waveform gain factor (db) in analog acoustic FIXED dB gnd12 AC GD21 waveform gain factor (db) in analog acoustic FIXED dB gnd21 AC GD22 waveform gain factor (db) in analog acoustic FIXED dB gnd22 AC GN11 waveform gain factor FIXED dim gn11 AC GN12 waveform gain factor FIXED dim gn12 AC GN21 waveform gain factor FIXED dim gn21 AC GN22 waveform gain factor FIXED dim gn22 AC LTHR lower agc percent of max FIXED pct lthr AC PP11 user-entered predicted pipe time TIME us ppt11 AC PP21 user-entered predicted pipe time TIME us ppt21 AC PP22 user-entered predicted pipe time TIME us ppt22 AC SG11 signature from transmitter 1, receiver 1 FIXED raw sg11 AC SG12 signature from transmitter 1, receiver 2 FIXED raw sg12 AC SG21 signature from transmitter 2, receiver 1 FIXED raw sg21 AC SG22 signature from transmitter 2, receiver 2 FIXED raw sg22 AC ST11 waveform start time FIXED us st11 AC ST12 ...
