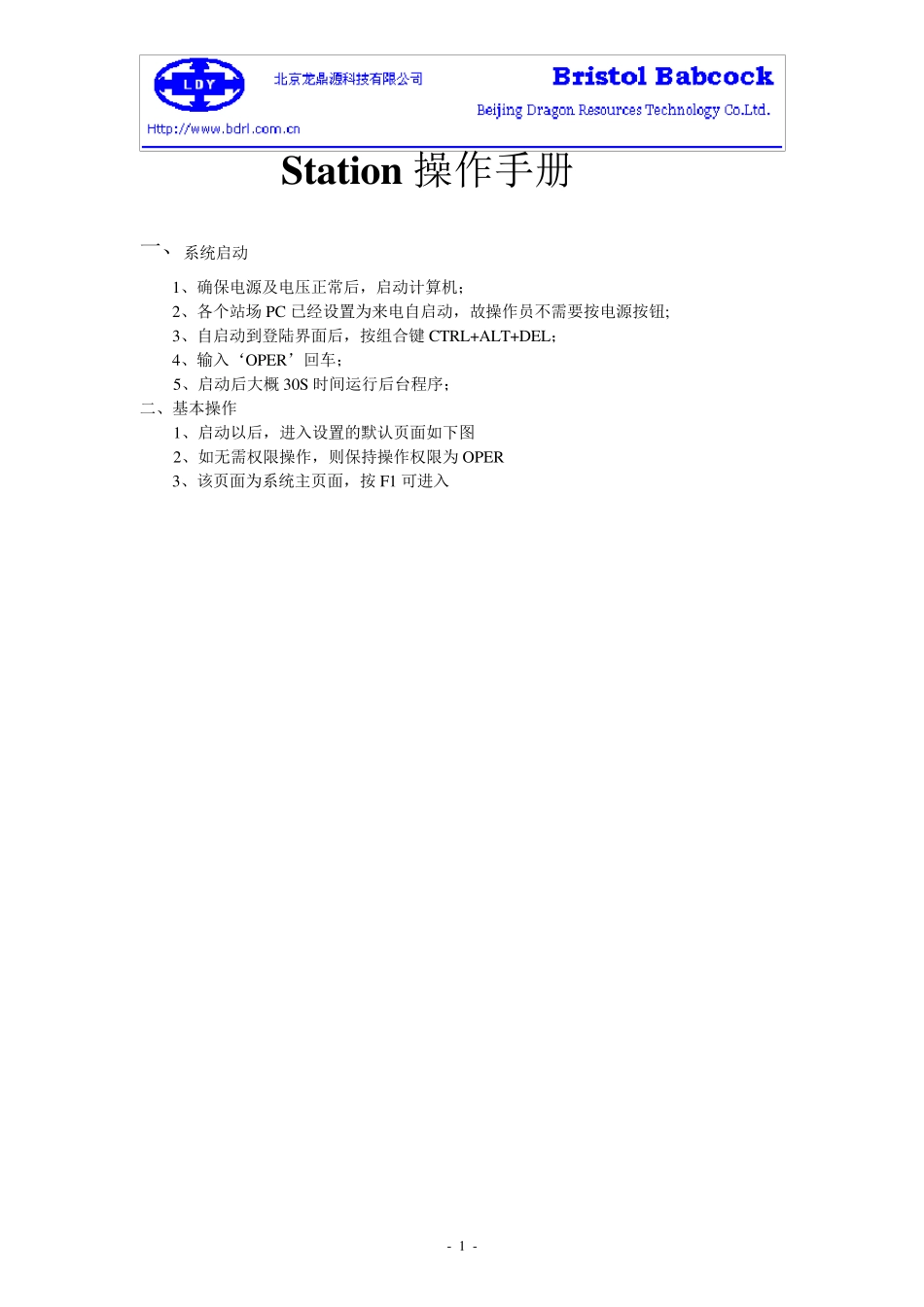

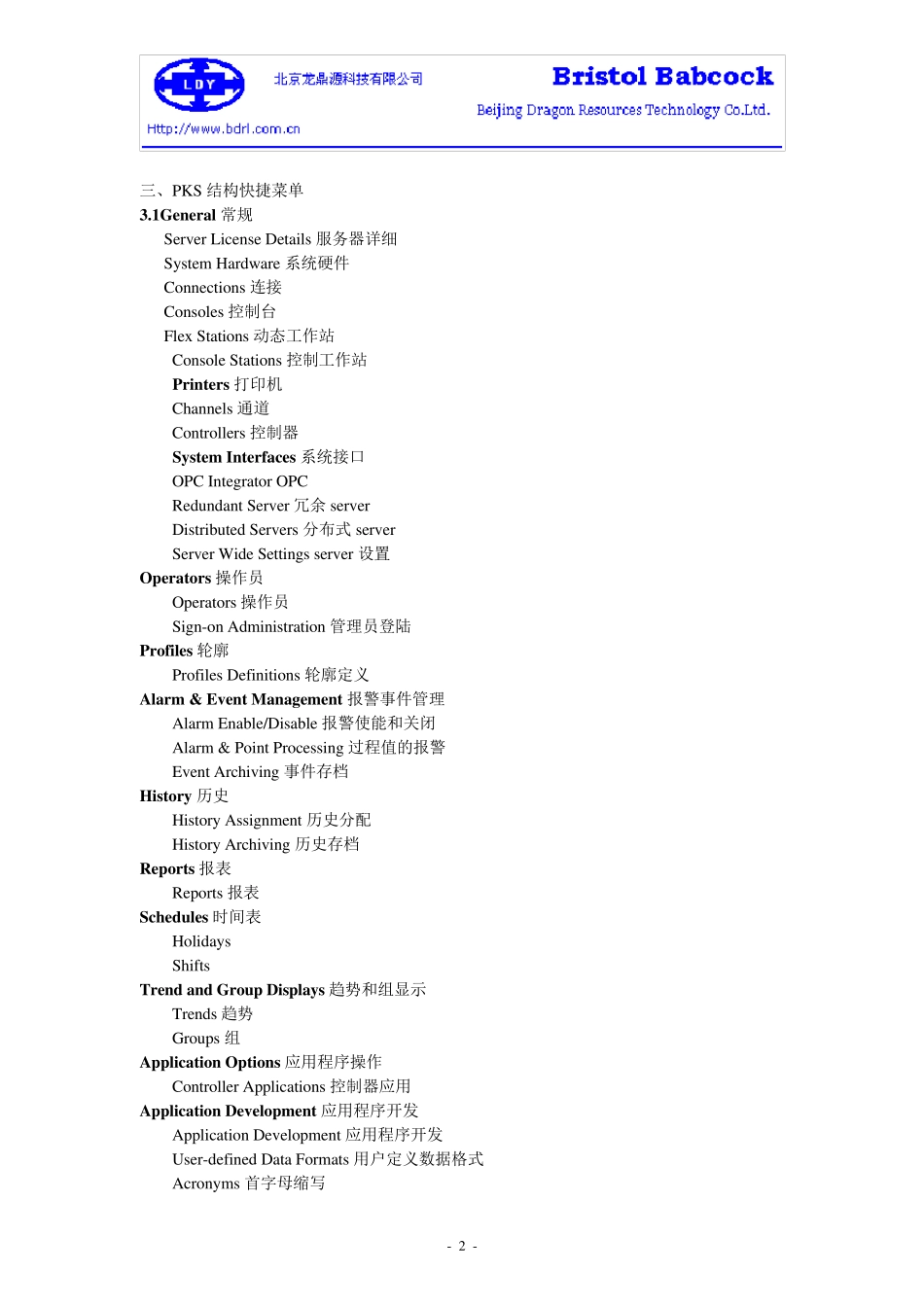

- 1 - Station 操作手册 一、系统启动 1、确保电源及电压正常后,启动计算机; 2、各个站场PC 已经设置为来电自启动,故操作员不需要按电源按钮; 3、自启动到登陆界面后,按组合键CTRL+ALT+DEL; 4、输入‘OPER’回车; 5、启动后大概 30S 时间运行后台程序; 二、基本操作 1、启动以后,进入设置的默认页面如下图 2、如无需权限操作,则保持操作权限为OPER 3、该页面为系统主页面,按F1 可进入 - 2 - 三、PKS 结构快捷菜单 3.1General 常规 Server License Details 服务器详细 System Hardware 系统硬件 Connections 连接 Consoles 控制台 Flex Stations 动态工作站 Console Stations 控制工作站 Printers 打印机 Channels 通道 Controllers 控制器 System Interfaces 系统接口 OPC Integrator OPC Redundant Server 冗余 server Distributed Servers 分布式 server Server Wide Settings server 设置 Operators 操作员 Operators 操作员 Sign-on Administration 管理员登陆 Profiles 轮廓 Profiles Definitions 轮廓定义 Alarm & Event Management 报警事件管理 Alarm Enable/Disable 报警使能和关闭 Alarm & Point Processing 过程值的报警 Event Archiving 事件存档 History 历史 History Assignment 历史分配 History Archiving 历史存档 Reports 报表 Reports 报表 Schedules 时间表 Holidays Shifts Trend and Group Displays 趋势和组显示 Trends 趋势 Groups 组 Application Options 应用程序操作 Controller Applications 控制器应用 Application Development 应用程序开发 Application Development 应用程序开发 User-defined Data Formats 用户定义数据格式 Acronyms 首字母缩写 - 3 - Serv er Scripting 脚本 Script Engines Server Scripts Point Scripts Tools>工具 HMIWEB Display Builder Display Builder Quick Builder File Replication Station Help 四、如何进入页面并进行设置操作 (图1-1) 1 操作界面各功能介绍: 1)最顶端为标题栏,显示当前显示页的名字; 2)菜单栏:站(Station)、编辑菜单(Edit)、显示菜单(View)、控制菜单(Control)、动作菜单(Action)、配置菜单(Configuration)、帮助菜单(Help); 其中最常用到是的Co...
