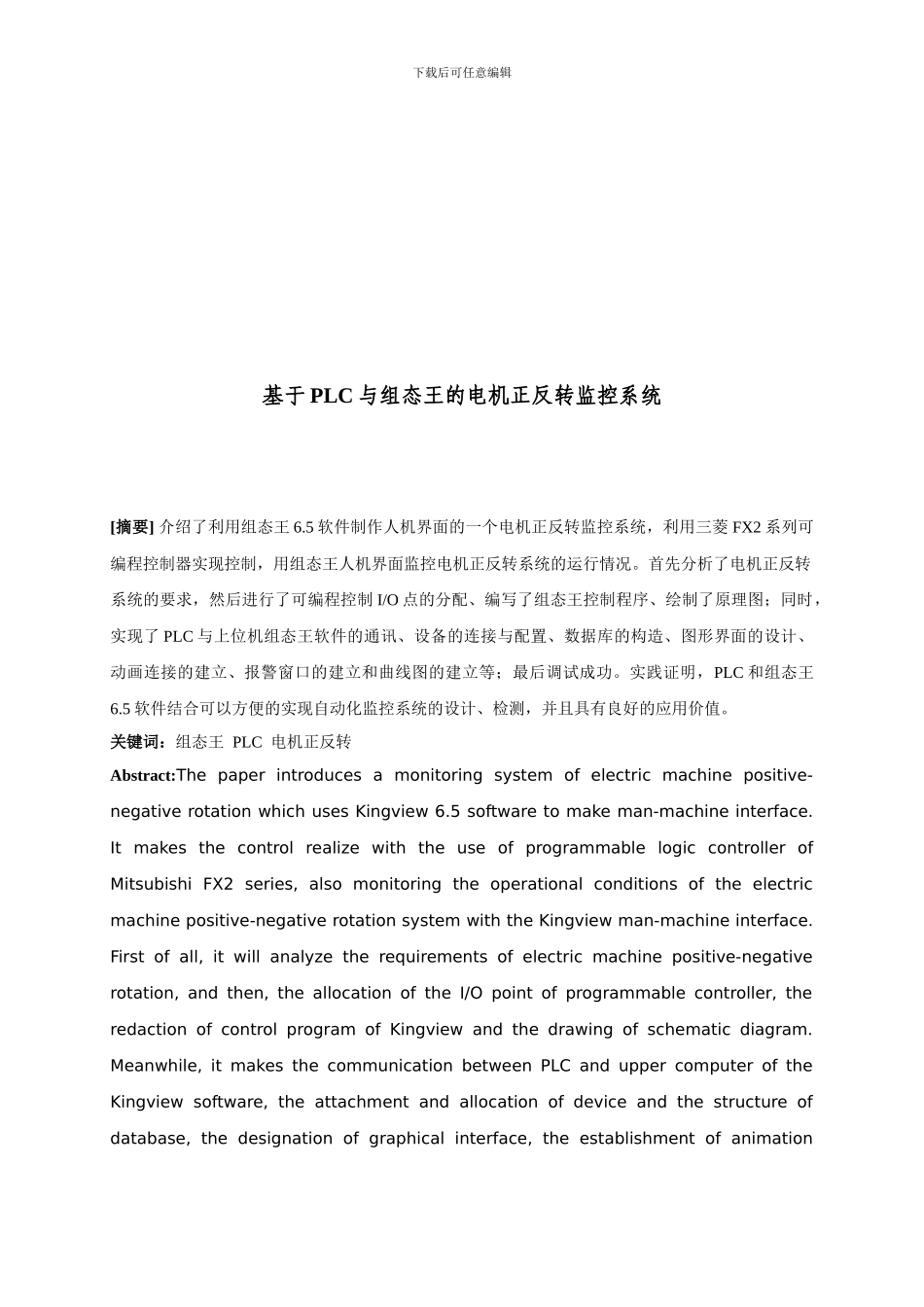

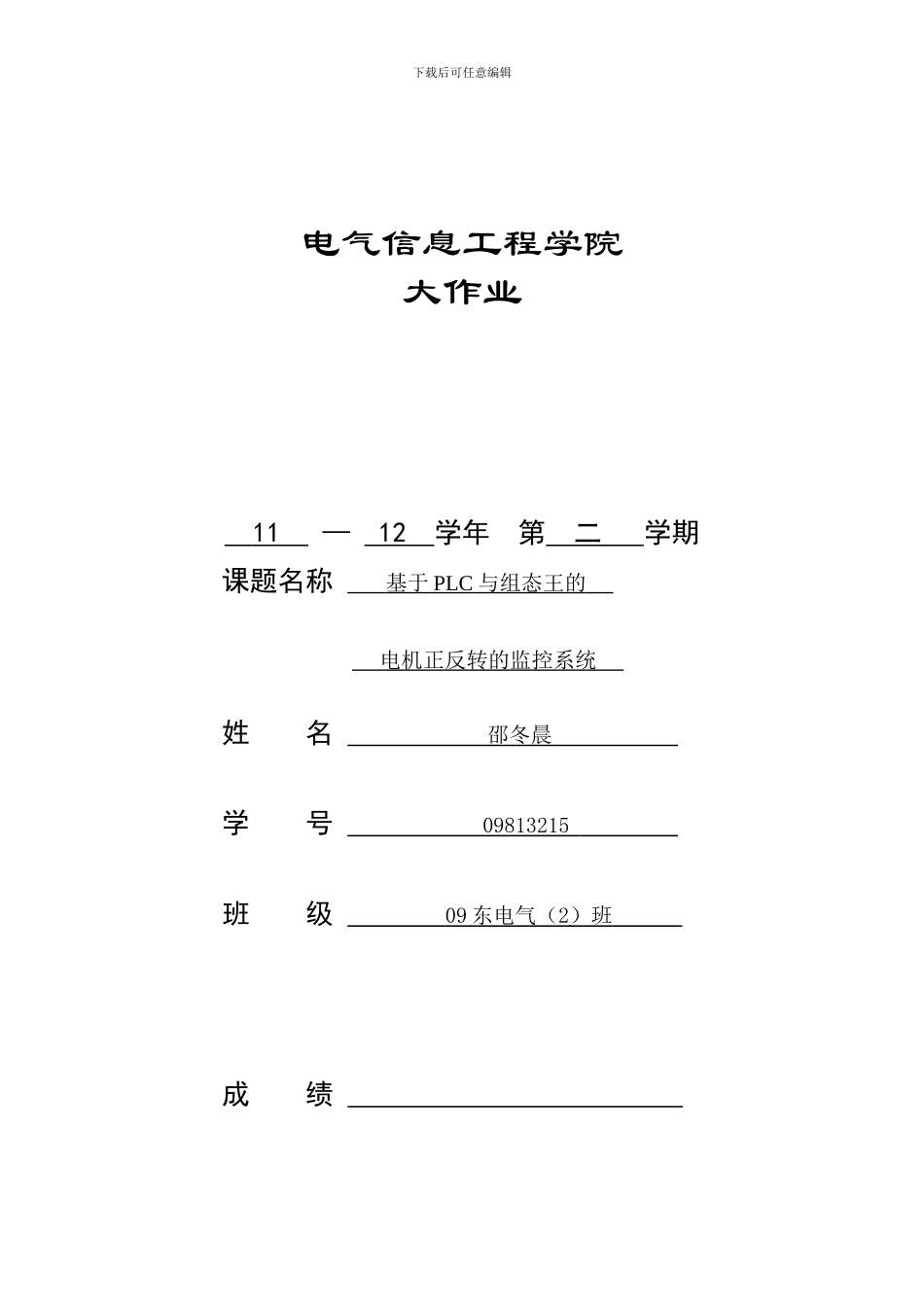

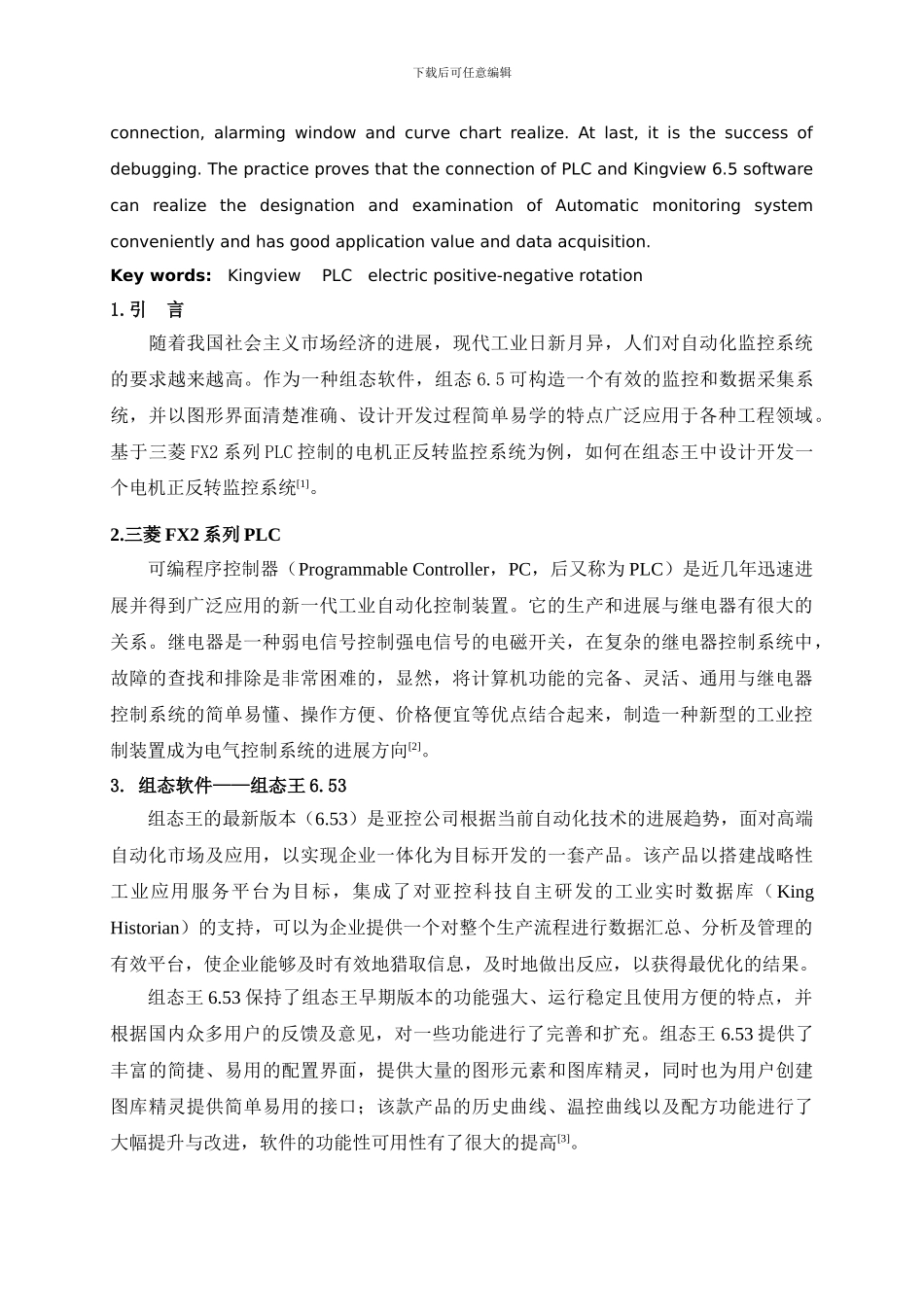

下载后可任意编辑 电气信息工程学院大作业 11 — 12 学年 第 二 学期课题名称 基于 PLC 与组态王的 电机正反转的监控系统 姓 名 邵冬晨 学 号 09813215 班 级 09 东电气（ 2 ）班 成 绩 下载后可任意编辑基于 PLC 与组态王的电机正反转监控系统[摘要] 介绍了利用组态王 6.5 软件制作人机界面的一个电机正反转监控系统，利用三菱 FX2 系列可编程控制器实现控制，用组态王人机界面监控电机正反转系统的运行情况。首先分析了电机正反转系统的要求，然后进行了可编程控制 I/O 点的分配、编写了组态王控制程序、绘制了原理图；同时，实现了 PLC 与上位机组态王软件的通讯、设备的连接与配置、数据库的构造、图形界面的设计、动画连接的建立、报警窗口的建立和曲线图的建立等；最后调试成功。实践证明，PLC 和组态王6.5 软件结合可以方便的实现自动化监控系统的设计、检测，并且具有良好的应用价值。关键词：组态王 PLC 电机正反转Abstract:The paper introduces a monitoring system of electric machine positive-negative rotation which uses Kingview 6.5 software to make man-machine interface. It makes the control realize with the use of programmable logic controller of Mitsubishi FX2 series, also monitoring the operational conditions of the electric machine positive-negative rotation system with the Kingview man-machine interface. First of all, it will analyze the requirements of electric machine positive-negative rotation, and then, the allocation of the I/O point of programmable controller, the redaction of control program of Kingview and the drawing of schematic diagram. Meanwhile, it makes the communication between PLC and upper computer of the Kingview software, the attachment and allocation of device and the structure of database, the designation of graphical interface, the establishment of animation 下载后可任意编辑connection, alarming window and curve chart realize. At last, it is the success of debugging. The practice proves that the connection of P...
