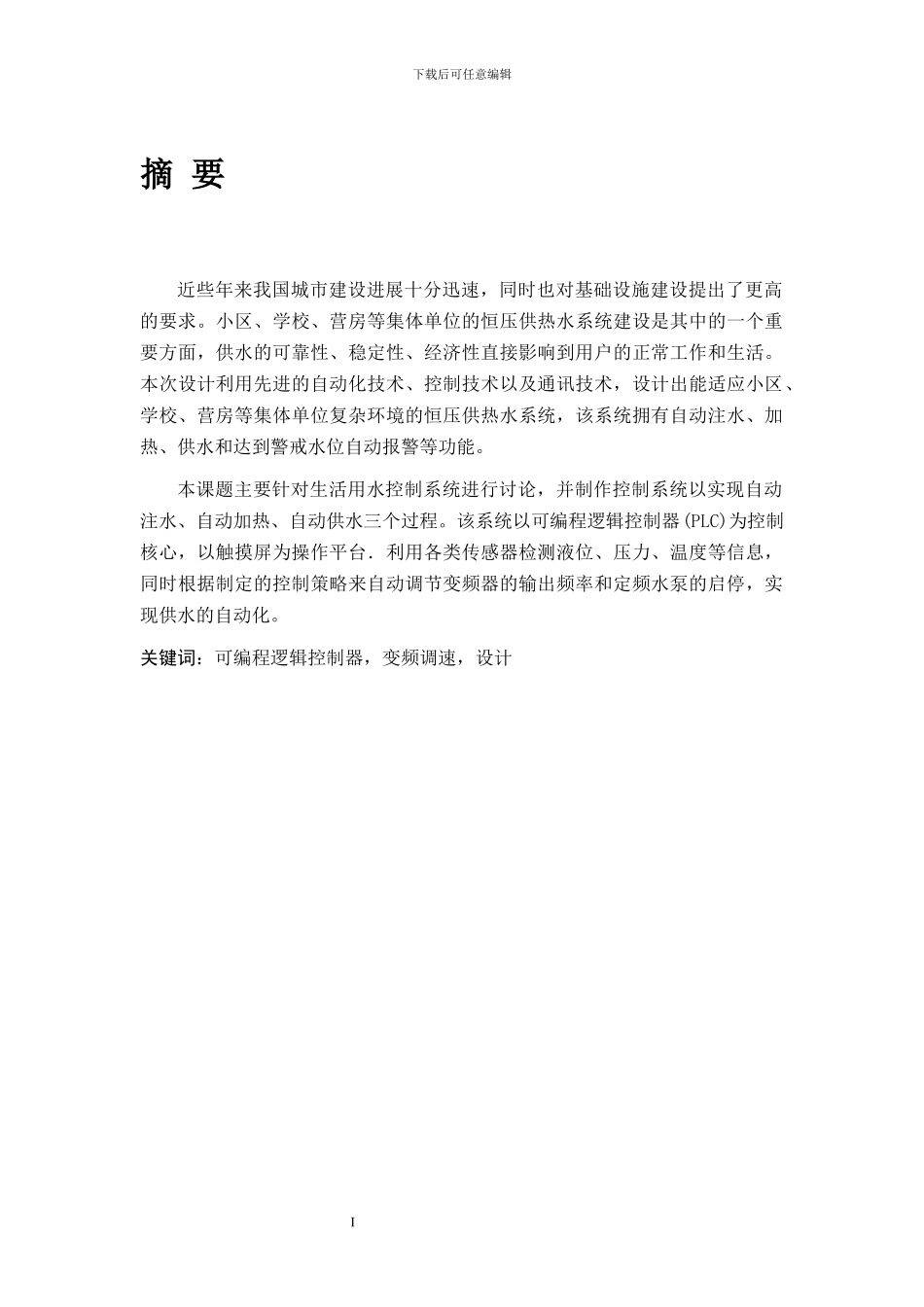

I下载后可任意编辑摘 要近些年来我国城市建设进展十分迅速，同时也对基础设施建设提出了更高的要求。小区、学校、营房等集体单位的恒压供热水系统建设是其中的一个重要方面，供水的可靠性、稳定性、经济性直接影响到用户的正常工作和生活。本次设计利用先进的自动化技术、控制技术以及通讯技术，设计出能适应小区、学校、营房等集体单位复杂环境的恒压供热水系统，该系统拥有自动注水、加热、供水和达到警戒水位自动报警等功能。本课题主要针对生活用水控制系统进行讨论，并制作控制系统以实现自动注水、自动加热、自动供水三个过程。该系统以可编程逻辑控制器(PLC)为控制核心，以触摸屏为操作平台．利用各类传感器检测液位、压力、温度等信息，同时根据制定的控制策略来自动调节变频器的输出频率和定频水泵的启停，实现供水的自动化。关键词：可编程逻辑控制器，变频调速，设计III下载后可任意编辑ABSTRACTIn recent years, China's economic development, social construction and urban construction and development is very fast, but also to the infrastructure construction proposed higher requirements. The construction of urban heating water system is one of the important aspects, the reliability, the stability and the economy of the water supply directly affect the user's normal work and life.. With the people continuously improve the quality and reliability of water supply system, using advanced automation technology, control technology and communication technology design of high performance, high energy saving, can adapt to the water supply factory complex environment of constant pressure water supply system to become an inevitable trend.This thesis mainly studies the water control system of domestic water, and makes the control system to realize automatic water injection, automatic heating, automatic water supply three processes. The system on a programmable logic controller (PLC) for the control of the core, the touch screen as the operating platform. Using all kinds of sens...
