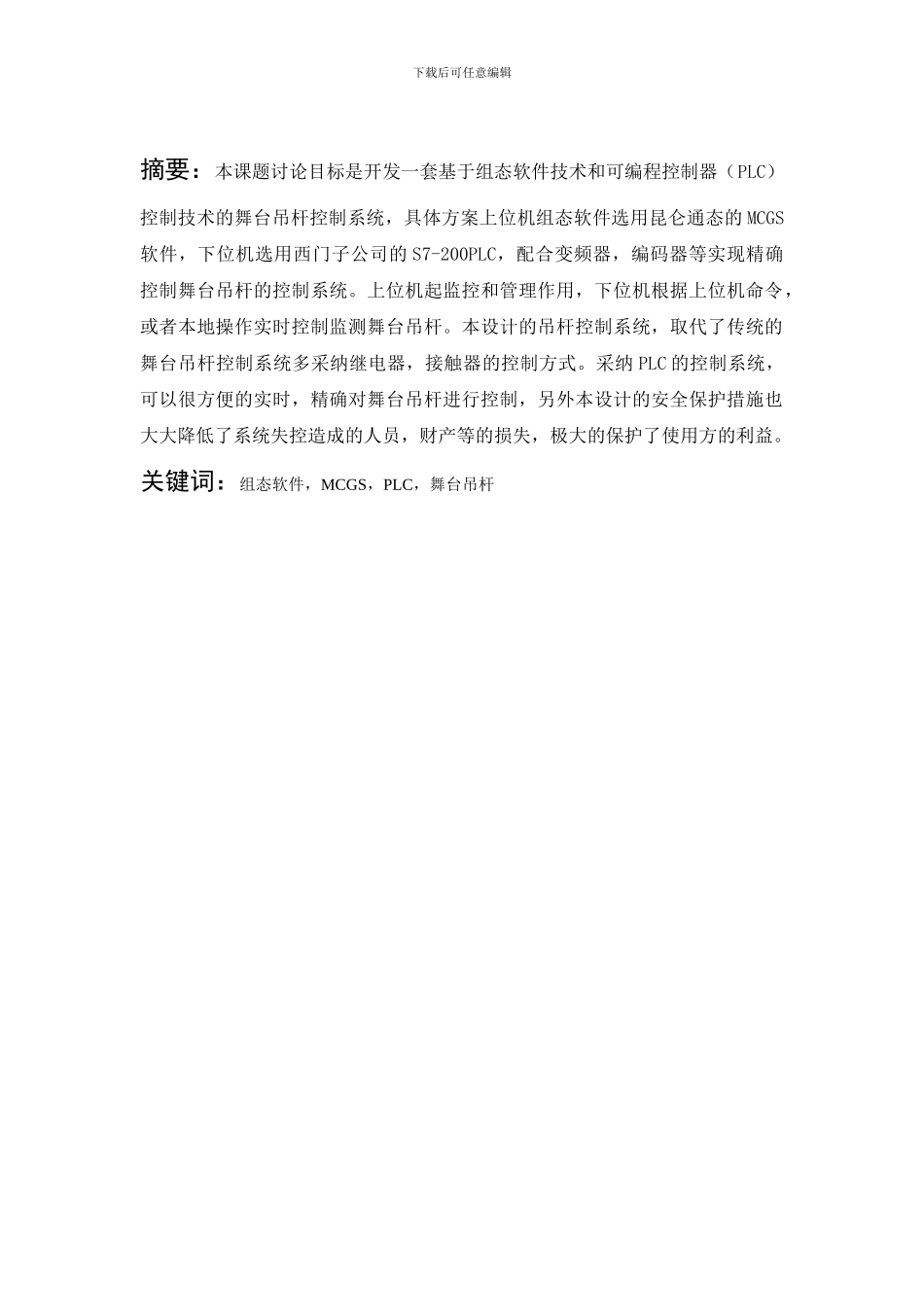

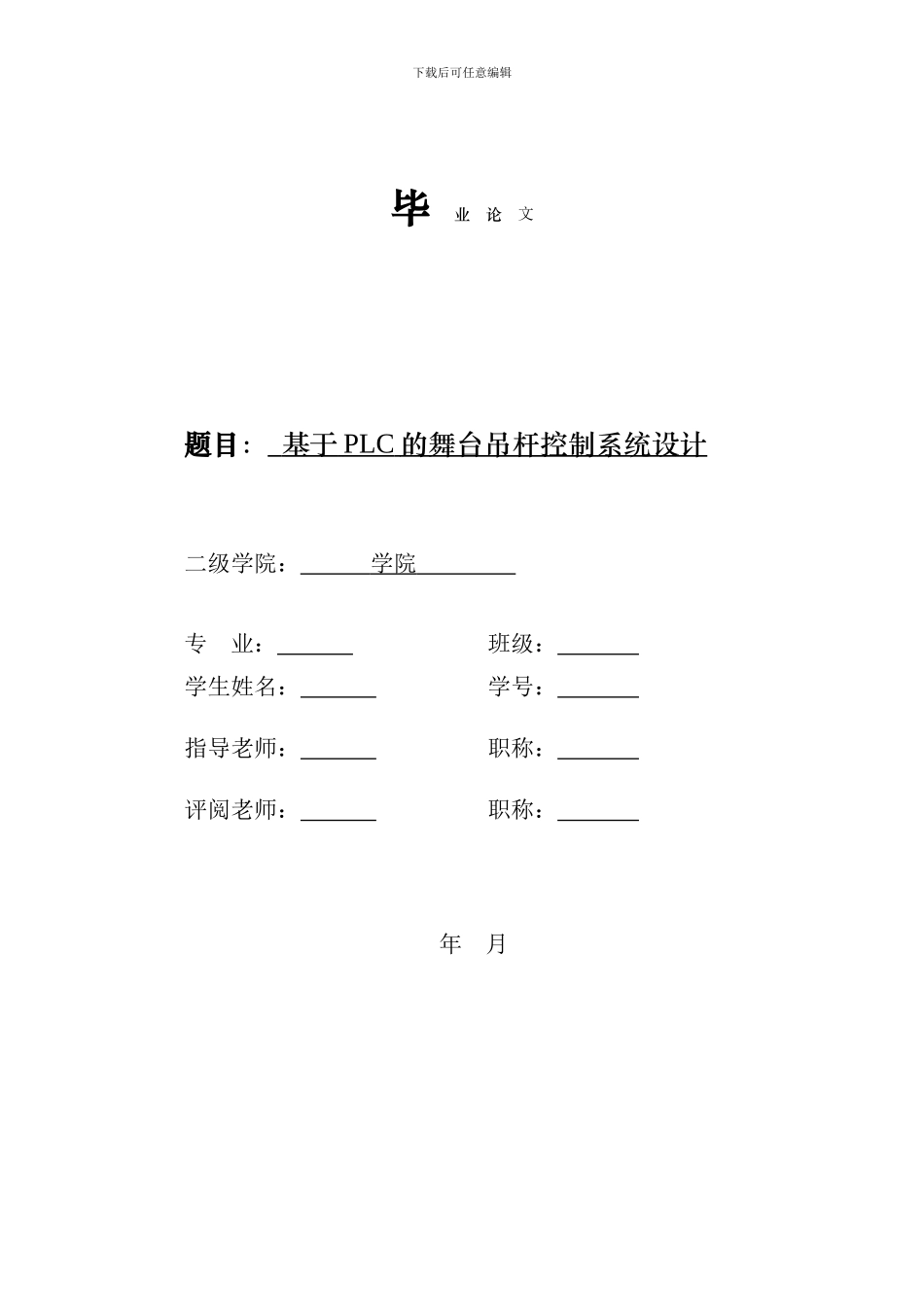

下载后可任意编辑毕 业 论 文题目: 基于 PLC 的舞台吊杆控制系统设计 二级学院: 学院 专 业: 班级: 学生姓名: 学号: 指导老师: 职称: 评阅老师: 职称: 年 月下载后可任意编辑目录 下载后可任意编辑摘要:本课题讨论目标是开发一套基于组态软件技术和可编程控制器(PLC)控制技术的舞台吊杆控制系统,具体方案上位机组态软件选用昆仑通态的 MCGS软件,下位机选用西门子公司的 S7-200PLC,配合变频器,编码器等实现精确控制舞台吊杆的控制系统。上位机起监控和管理作用,下位机根据上位机命令,或者本地操作实时控制监测舞台吊杆。本设计的吊杆控制系统,取代了传统的舞台吊杆控制系统多采纳继电器,接触器的控制方式。采纳 PLC 的控制系统,可以很方便的实时,精确对舞台吊杆进行控制,另外本设计的安全保护措施也大大降低了系统失控造成的人员,财产等的损失,极大的保护了使用方的利益。关键词:组态软件,MCGS,PLC,舞台吊杆下载后可任意编辑Abstract: The target of this project is to develop a set of configuration software technology and based on programmable logic controller (PLC) stage suspender control system control technology, the concrete scheme of the PC configuration software selection of Kunlun on-state MCGS software, the selection of Siemens company S7-200PLC, with frequency converter, to achieve precise control system stage suspender control encoder etc.. PC play a monitoring and management, lower computer according to the host command, or the local operation of real-time control and monitoring stage suspender. The control system of this design, to replace the traditional stage suspender control system uses the relay, contactor control mode. The PLC control system, can be very convenient to real-time, accurate in stage suspender control, in addition to the design of the safety protection measures are also greatly reduced the system out of control due to the personnel, property loss, helps protect the use of parties.Key words: Configurati...
