基于PSAT的电力系统低频振荡分析论文定稿

基于PSAT的电力系统低频振荡分析论文定稿_第1页
1/41
基于PSAT的电力系统低频振荡分析论文定稿_第2页

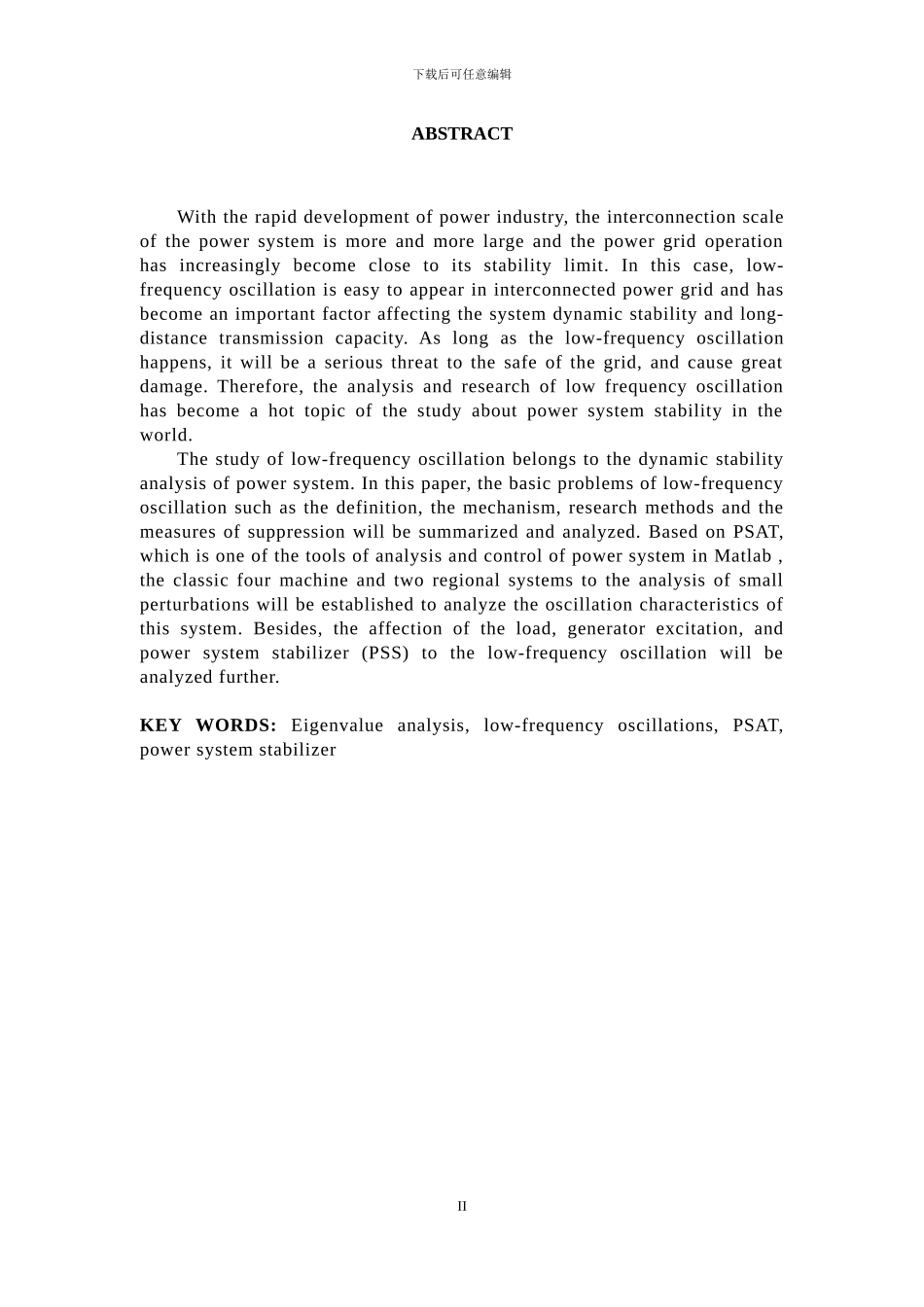

2/41
基于PSAT的电力系统低频振荡分析论文定稿_第3页
3/41
下载后可任意编辑摘 要 随着电力工业的迅猛进展,电力系统的互联规模越来越大,电网的运行也越来越接近其稳定极限,这种情况下,互联电网中出现低频振荡的风险大大增加,低频振荡已经成为影响系统动态稳定性及远距离传输容量的重要因素。电力系统低频振荡一旦发生,将会严重威胁着电网的安全运行,造成系统的稳定破坏。因此,对低频振荡的分析与讨论已成为国内外电力系统稳定性讨论中的重点课题之一。电力系统低频振荡属于系统动态稳定分析的问题。本文将对互联电网低频振荡的问题作以大致的概括和分析。主要从对电力系统低频振荡的定义分类、振荡机理、讨论方法及抑制措施等方面着手,建立小扰动分析的经典四机两区域系统,基于 Matlab 中电力系统分析和控制的工具 PSAT 对该系统的振荡特征,及负荷、发电机励磁、电力系统稳定器(PSS)等不同的模型对于该系统低频振荡的影响进行分析。 关键词:特征分析法,低频振荡,PSAT,电力系统稳定器I下载后可任意编辑ABSTRACTWith the rapid development of power industry, the interconnection scale of the power system is more and more large and the power grid operation has increasingly become close to its stability limit. In this case, low-frequency oscillation is easy to appear in interconnected power grid and has become an important factor affecting the system dynamic stability and long-distance transmission capacity. As long as the low-frequency oscillation happens, it will be a serious threat to the safe of the grid, and cause great damage. Therefore, the analysis and research of low frequency oscillation has become a hot topic of the study about power system stability in the world.The study of low-frequency oscillation belongs to the dynamic stability analysis of power system. In this paper, the basic problems of low-frequency oscillation such as the definition, the mechanism, research methods and the measures of suppression will be summarized and analyzed. Based on PSAT, which is one of the tools of analysis and control of p...
