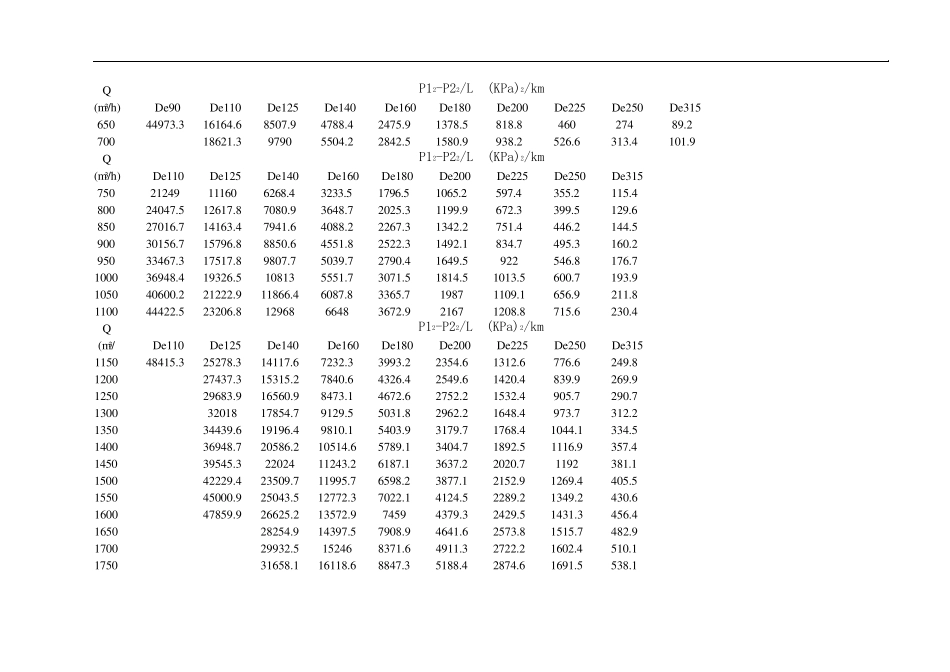

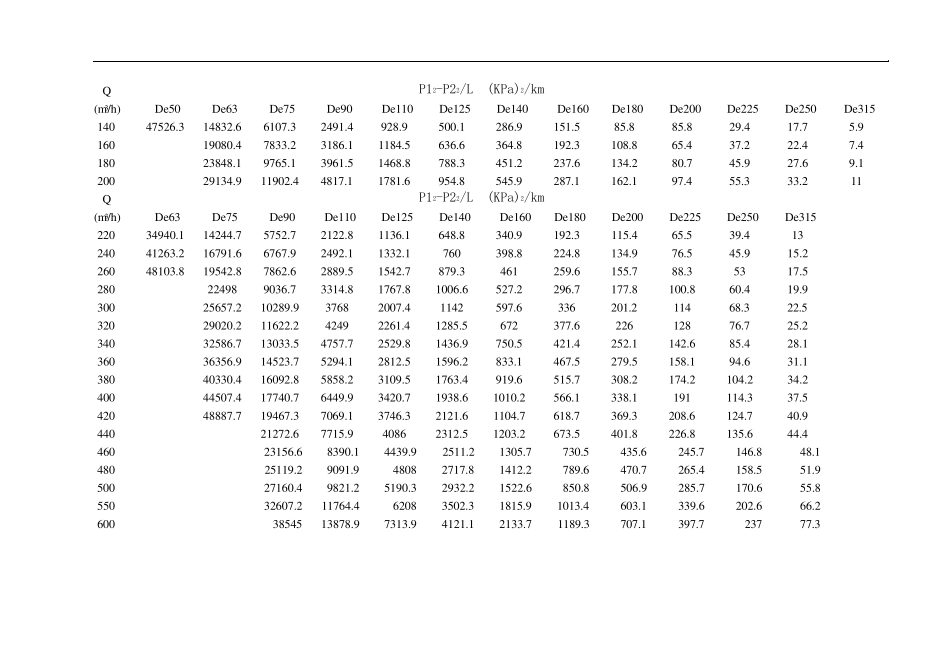

中压燃气管道水力计算单位长度阻力损失表VIP专享

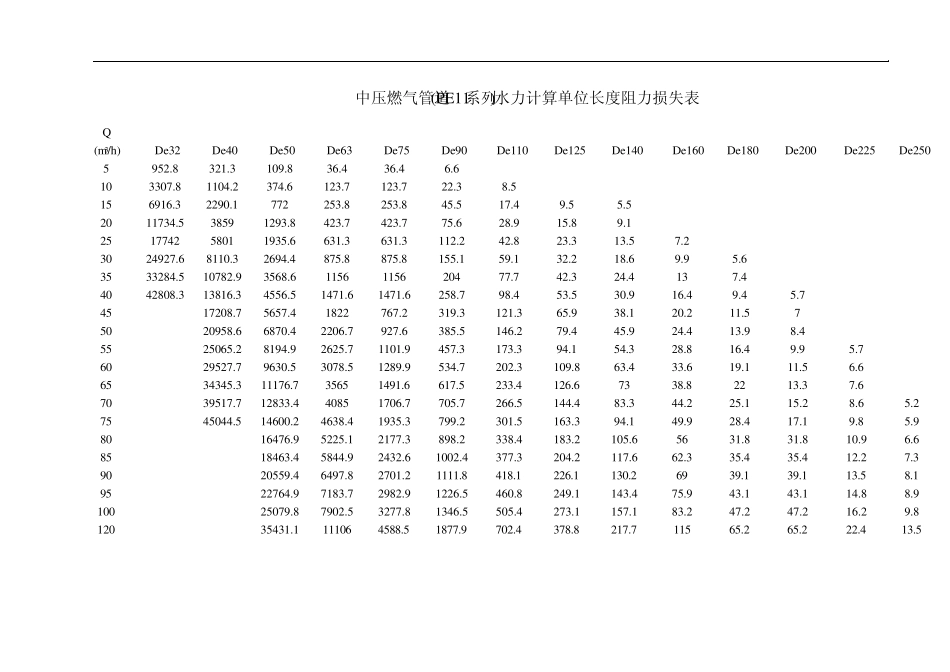

中压燃气管道(PE11系列)水力计算单位长度阻力损失表 Q (m3/h) P12-P22/L (KPa)2/km De32 De40 De50 De63 De75 De90 De110 De125 De140 De160 De180 De200 De225 De250 5 952.8 321.3 109.8 36.4 36.4 6.6 10 3307.8 1104.2 374.6 123.7 123.7 22.3 8.5 15 6916.3 2290.1 772 253.8 253.8 45.5 17.4 9.5 5.5 20 11734.5 3859 1293.8 423.7 423.7 75.6 28.9 15.8 9.1 25 17742 5801 1935.6 631.3 631.3 112.2 42.8 23.3 13.5 7.2 30 24927.6 8110.3 2694.4 875.8 875.8 155.1 59.1 32.2 18.6 9.9 5.6 35 33284.5 10782.9 3568.6 1156 1156 204 77.7 42.3 24.4 13 7.4 40 42808.3 13816.3 4556.5 1471.6 1471.6 258.7 98.4 53.5 30.9 16.4 9.4 5.7 45 17208.7 5657.4 1822 767.2 319.3 121.3 65.9 38.1 20.2 11.5 7 50 20958.6 6870.4 2206.7 927.6 385.5 146.2 79.4 45.9 24.4 13.9 8.4 55 25065.2 8194.9 2625.7 1101.9 457.3 173.3 94.1 54.3 28.8 16.4 9.9 5.7 60 29527.7 9630.5 3078.5 1289.9 534.7 202.3 109.8 63.4 33.6 19.1 11.5 6.6 65 34345.3 11176.7 3565 1491.6 617.5 233.4 126.6 73 38.8 22 13.3 7.6 70 39517.7 12833.4 4085 1706.7 705.7 266.5 144.4 83.3 44.2 25.1 15.2 8.6 5.2 75 45044.5 14600.2 4638.4 1935.3 799.2 301.5 163.3 94.1 49.9 28.4 17.1 9.8 5.9 80 16476.9 5225.1 2177.3 898.2 338.4 183.2 105.6 56 31.8 31.8 10.9 6.6 85 18463.4 5844.9 2432.6 1002.4 377.3 204.2 117.6 62.3 35.4 35.4 12.2 7.3 90 20559.4 6497.8 2701.2 1111.8 418.1 226.1 130.2 69 39.1 39.1 13.5 8.1 95 22764.9 7183.7 2982.9 1226.5 460.8 249.1 143.4 75.9 43.1 43.1 14.8 8.9 100 25079.8 7902.5 3277.8 1346.5 505.4 273.1 157.1 83.2 47.2 47.2 16.2 9.8 120 35431.1 11106 4588.5 1877.9 702.4 378.8 217.7 115 65.2 65.2 22.4 13.5 Q (m3/h) P12-P22/L (KPa)2/km De50 De63 De75 De90 De110 De125 De140 De160 De180 De200 De225 De250 De315 140 47526.3 14832.6 6107.3 2491.4 928.9 500.1 286.9 151.5...
