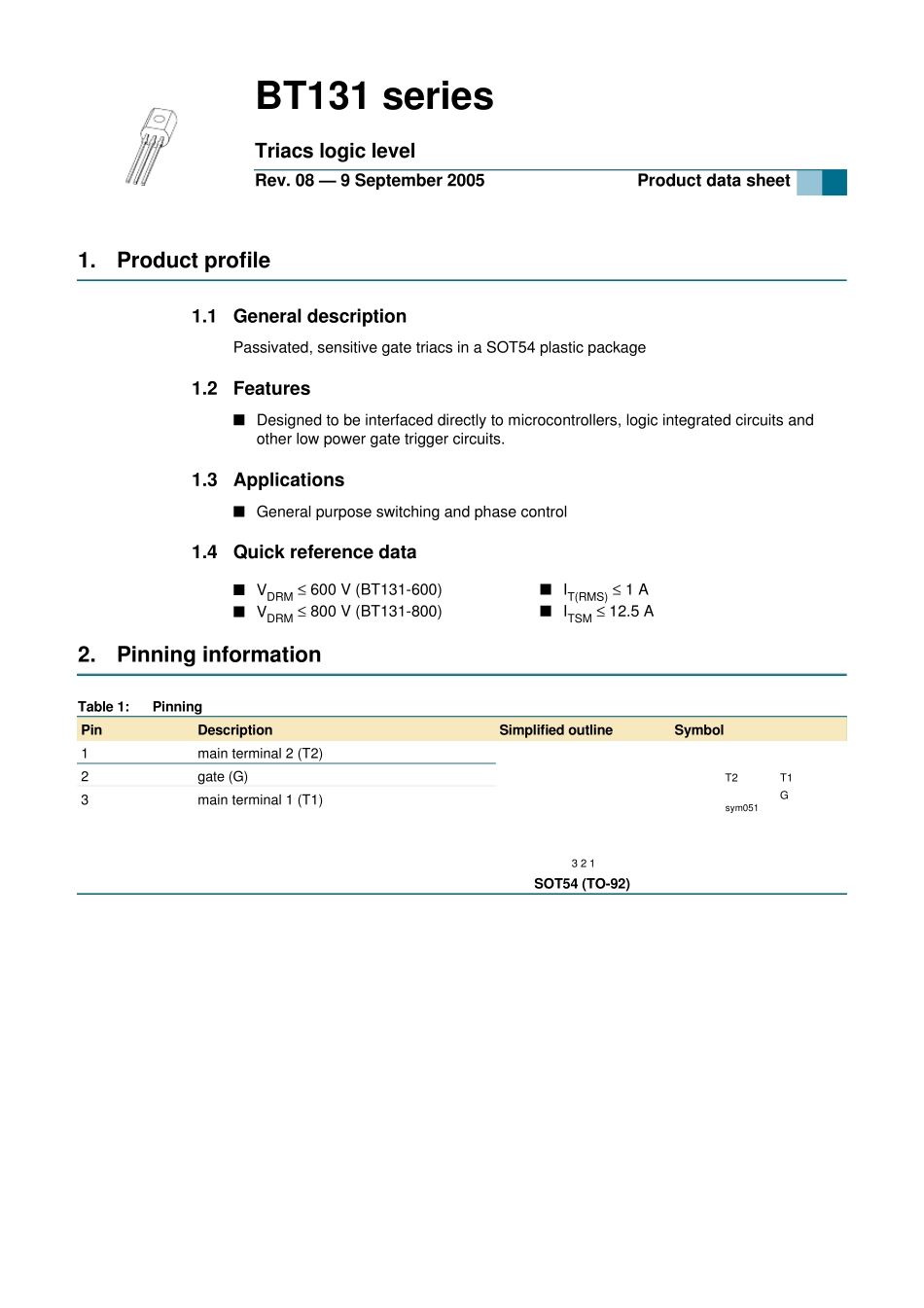

1.Product profile1.1General descriptionPassivated, sensitive gate triacs in a SOT54 plastic package1.2Featuress Designed to be interfaced directly to microcontrollers, logic integrated circuits andother low power gate trigger circuits.1.3Applicationss General purpose switching and phase control1.4Quick reference data2.Pinning informationBT131 seriesTriacs logic levelRev. 08 — 9 September 2005Product data sheets VDRM ≤ 600 V (BT131-600)s IT(RMS) ≤ 1 As VDRM ≤ 800 V (BT131-800)s ITSM ≤ 12.5 ATable 1:PinningPinDescriptionSimplified outlineSymbol1main terminal 2 (T2)SOT54 (TO-92)2gate (G)3main terminal 1 (T1)123sym051T1GT2BT131_SER_8© Koninklijke Philips Electronics N.V. 2005. All rights reserved.Product data sheetRev. 08 — 9 September 20052 of 12Philips SemiconductorsBT131 seriesTriacs logic level3.Ordering information4.Limiting values[1]Although not recommended, off-state voltages up to 800 V may be applied without damage, but the triac may switch to the on-state. Therate of rise of current should not exceed 3 A/µs.Table 2:Ordering informationType numberPackageNameDescriptionVersionBT131-600TO-92plastic single-ended leaded (through hole) package; 3 leadsSOT54BT131-800Table 3:Limiting valuesIn accordance with the Absolute Maximum Rating System (IEC 60134).SymbolParameterConditionsMinMaxUnitVDRMrepetitive peak off-state voltageBT131-600[1] -600VBT131-800-800VIT(RMS)RMS on-state currentall conduction angles;Tlead = 51.2 °C;see Figure 1, 4 and 5-1AITSMnon-repetitive peak on-statecurrenthalf sine wave; Tj = 25 °Cprior to surge; see Figure 2and 3t = 20 ms-12.5At = 16.7 ms-13.8AI2tI2t for fusingt = 10 ms-1.28A2sdIT/dtrate of rise of on-state currentITM = 1.5 A; IG = 20 mA;dIG/dt = 200 mA/µsT2+ G+-50A/µsT2+ G−-50A/µsT2− G−-50A/µsT2− G+-10A/µsIGMpeak...
