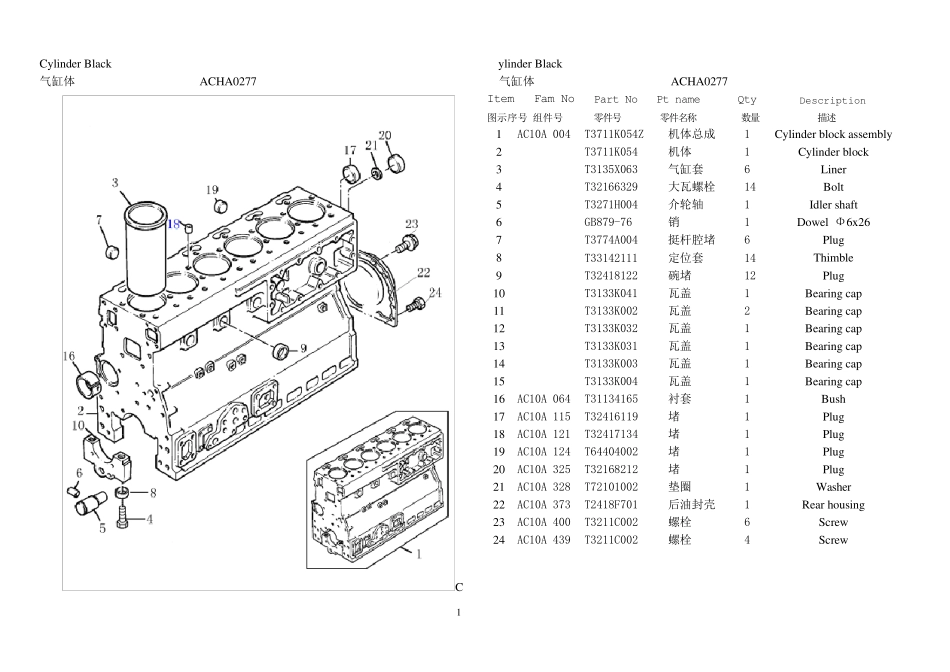

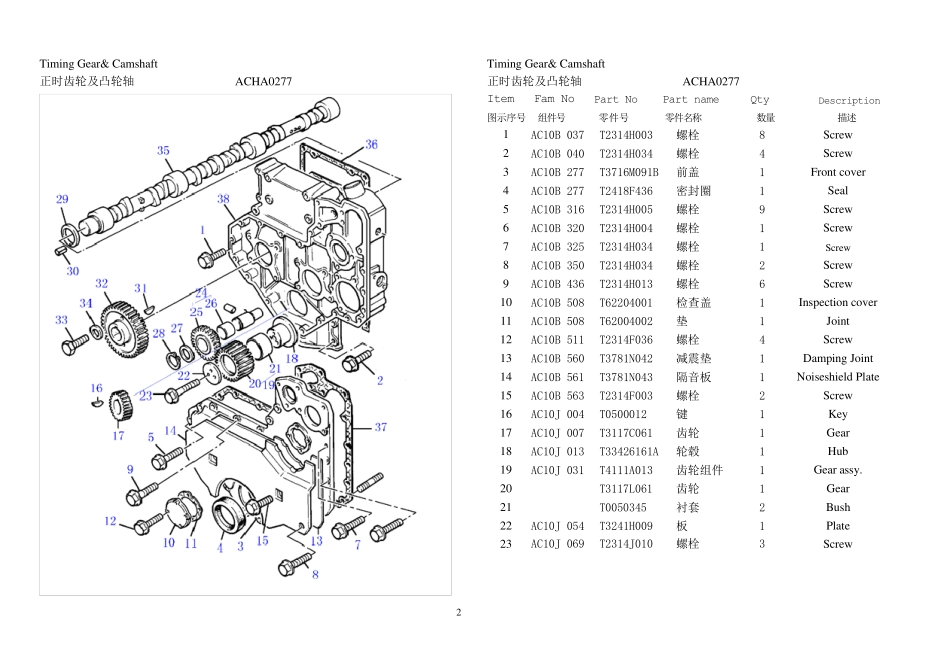

1 Cylinder Black 气缸体 ACHA0277 Cylinder Black 气缸体 ACHA0277 Item Fam No Part No Pt name Qty Description 图示序号 组件号 零件号 零件名称 数量 描述 1 AC10A 004 T3711K054Z 机体总成 1 Cylinder block assembly 2 T3711K054 机体 1 Cylinder block 3 T3135X063 气缸套 6 Liner 4 T32166329 大瓦螺栓 14 Bolt 5 T3271H004 介轮轴 1 Idler shaft 6 GB879-76 销 1 Dowel Φ6x26 7 T3774A004 挺杆腔堵 6 Plug 8 T33142111 定位套 14 Thimble 9 T32418122 碗堵 12 Plug 10 T3133K041 瓦盖 1 Bearing cap 11 T3133K002 瓦盖 2 Bearing cap 12 T3133K032 瓦盖 1 Bearing cap 13 T3133K031 瓦盖 1 Bearing cap 14 T3133K003 瓦盖 1 Bearing cap 15 T3133K004 瓦盖 1 Bearing cap 16 AC10A 064 T31134165 衬套 1 Bush 17 AC10A 115 T32416119 堵 1 Plug 18 AC10A 121 T32417134 堵 1 Plug 19 AC10A 124 T64404002 堵 1 Plug 20 AC10A 325 T32168212 堵 1 Plug 21 AC10A 328 T72101002 垫圈 1 Washer 22 AC10A 373 T2418F701 后油封壳 1 Rear housing 23 AC10A 400 T3211C002 螺栓 6 Screw 24 AC10A 439 T3211C002 螺栓 4 Screw 2 Timing Gear& Camshaft 正时齿轮及凸轮轴 ACHA0277 Timing Gear& Camshaft 正时齿轮及凸轮轴 ACHA0277 Item Fam No Part No Part name Qty Description 图示序号 组件号 零件号 零件名称 数量 描述 1 AC10B 037 T2314H003 螺栓 8 Screw 2 AC10B 040 T2314H034 螺栓 4 Screw 3 AC10B 277 T3716M091B 前盖 1 Front cover 4 AC10B 277 T2418F436 密封圈 1 Seal 5 AC10B 316 T2314H005 螺栓 9 Screw 6 AC10B 320 T2314H004 螺栓 1 Screw 7 AC10B 325 T2314H034 螺栓 1 Screw 8 AC10B 350 T2314H034 螺栓 2 Screw 9 AC10B 436 T2314H013 螺栓 6 Screw 10 AC10B 508 T62204001 检查盖 1 Inspection cover 11 AC10B 508 T62004002 垫 1 Joint 12 AC10B 511 T2314F036 螺栓 4 Screw 13 AC10B 560 T3781N042 减震垫 1 Damping Joint 14 AC10B 561 T3781N043 隔音板 1 Noiseshield Plate 15 AC10B ...
