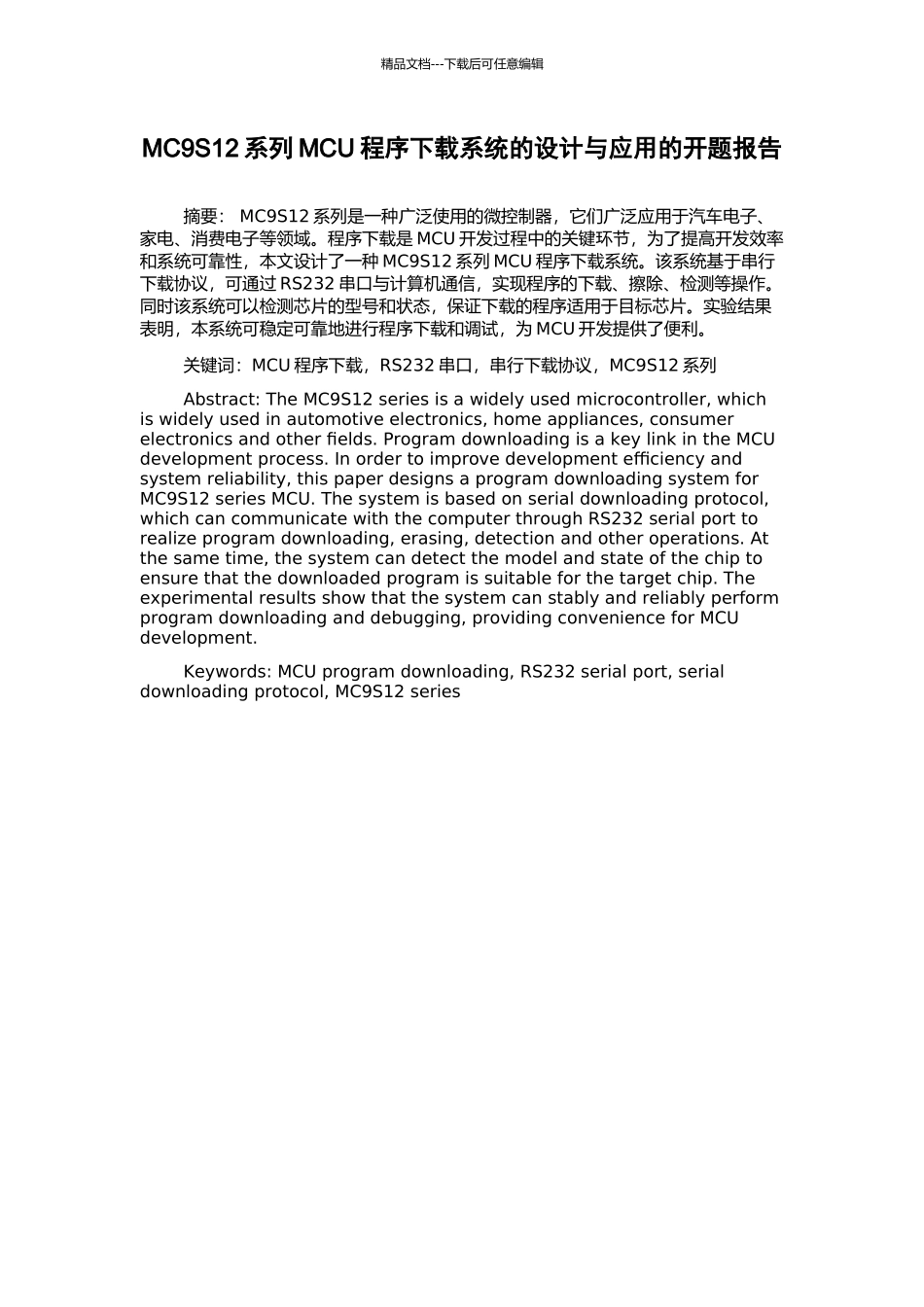

MC9S12系列MCU程序下载系统的设计与应用的开题报告

精品文档---下载后可任意编辑MC9S12 系列 MCU 程序下载系统的设计与应用的开题报告摘要： MC9S12 系列是一种广泛使用的微控制器，它们广泛应用于汽车电子、家电、消费电子等领域。程序下载是 MCU 开发过程中的关键环节，为了提高开发效率和系统可靠性，本文设计了一种 MC9S12 系列 MCU 程序下载系统。该系统基于串行下载协议，可通过 RS232 串口与计算机通信，实现程序的下载、擦除、检测等操作。同时该系统可以检测芯片的型号和状态，保证下载的程序适用于目标芯片。实验结果表明，本系统可稳定可靠地进行程序下载和调试，为 MCU 开发提供了便利。关键词：MCU 程序下载，RS232 串口，串行下载协议，MC9S12 系列Abstract: The MC9S12 series is a widely used microcontroller, which is widely used in automotive electronics, home appliances, consumer electronics and other fields. Program downloading is a key link in the MCU development process. In order to improve development efficiency and system reliability, this paper designs a program downloading system for MC9S12 series MCU. The system is based on serial downloading protocol, which can communicate with the computer through RS232 serial port to realize program downloading, erasing, detection and other operations. At the same time, the system can detect the model and state of the chip to ensure that the downloaded program is suitable for the target chip. The experimental results show that the system can stably and reliably perform program downloading and debugging, providing convenience for MCU development.Keywords: MCU program downloading, RS232 serial port, serial downloading protocol, MC9S12 series
