NPC三电平逆变器电容电压平衡与开关频率优化策略开题报告VIP专享

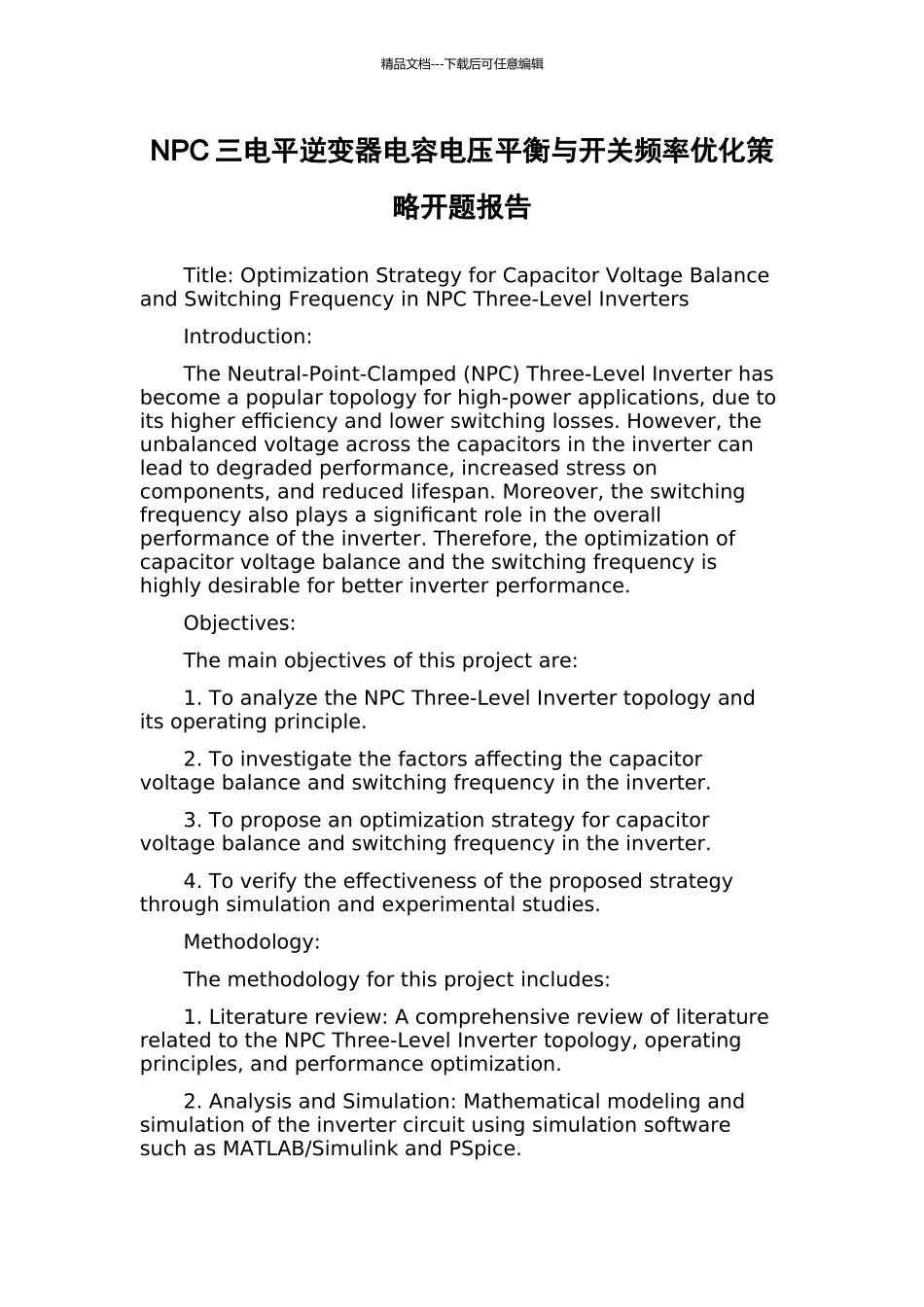

精品文档---下载后可任意编辑NPC 三电平逆变器电容电压平衡与开关频率优化策略开题报告Title: Optimization Strategy for Capacitor Voltage Balance and Switching Frequency in NPC Three-Level InvertersIntroduction:The Neutral-Point-Clamped (NPC) Three-Level Inverter has become a popular topology for high-power applications, due to its higher efficiency and lower switching losses. However, the unbalanced voltage across the capacitors in the inverter can lead to degraded performance, increased stress on components, and reduced lifespan. Moreover, the switching frequency also plays a significant role in the overall performance of the inverter. Therefore, the optimization of capacitor voltage balance and the switching frequency is highly desirable for better inverter performance.Objectives:The main objectives of this project are:1. To analyze the NPC Three-Level Inverter topology and its operating principle.2. To investigate the factors affecting the capacitor voltage balance and switching frequency in the inverter.3. To propose an optimization strategy for capacitor voltage balance and switching frequency in the inverter.4. To verify the effectiveness of the proposed strategy through simulation and experimental studies.Methodology:The methodology for this project includes:1. Literature review: A comprehensive review of literature related to the NPC Three-Level Inverter topology, operating principles, and performance optimization.2. Analysis and Simulation: Mathematical modeling and simulation of the inverter circuit using simulation software such as MATLAB/Simulink and PSpice.精品文档---下载后可任意编辑3. Optimization strategy: Develop an optimization strategy based on the simulation results and literature review.4. Experimental verification: Implement the proposed strategy in an experimental setup and verify its performance under various operating conditions.Expected Results:The proposed optimization strategy is expected to achieve better capacitor voltage balance and overall performance of the NPC Three-Level Inverter. The results of the simulation and experimental studies will validate the effectiveness of the proposed strategy in terms of voltage balancing, reduction in switching losses, increased efficiency, and an extended lifespan of components.Conclusion:This project aims to develop an optimization strategy for capacitor voltage balance and switching frequency in the NPC Three-Level Inverter. The proposed strategy will provide a practical solution to improve the performance of the inverter and expand its applications in high-power systems.
