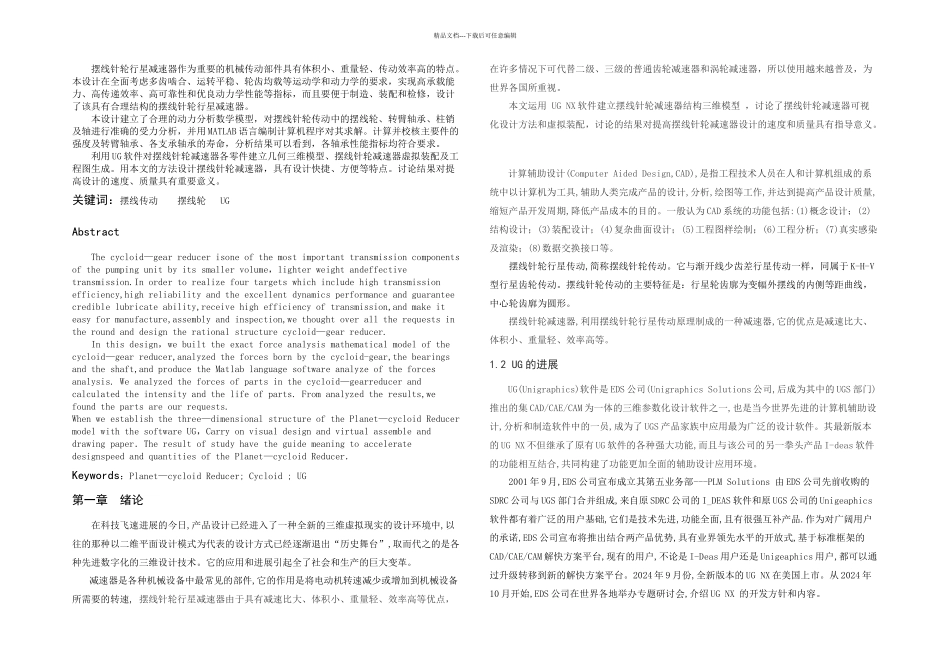

精品文档---下载后可任意编辑摆线针轮行星减速器作为重要的机械传动部件具有体积小、重量轻、传动效率高的特点。本设计在全面考虑多齿啮合、运转平稳、轮齿均载等运动学和动力学的要求，实现高承载能力、高传递效率、高可靠性和优良动力学性能等指标，而且要便于制造、装配和检修，设计了该具有合理结构的摆线针轮行星减速器。本设计建立了合理的动力分析数学模型，对摆线针轮传动中的摆线轮、转臂轴承、柱销及轴进行准确的受力分析，并用 MATLAB 语言编制计算机程序对其求解。计算并校核主要件的强度及转臂轴承、各支承轴承的寿命，分析结果可以看到，各轴承性能指标均符合要求。利用 UG 软件对摆线针轮减速器各零件建立几何三维模型、摆线针轮减速器虚拟装配及工程图生成。用本文的方法设计摆线针轮减速器，具有设计快捷、方便等特点。讨论结果对提高设计的速度、质量具有重要意义。关键词：摆线传动 摆线轮 UGAbstractThe cycloid—gear reducer isone of the most important transmission components of the pumping unit by its smaller volume，lighter weight andeffective transmission.In order to realize four targets which include high transmission efficiency,high reliability and the excellent dynamics performance and guarantee credible lubricate ability,receive high efficiency of transmission,and make it easy for manufacture,assembly and inspection,we thought over all the requests in the round and design the rational structure cycloid—gear reducer.In this design，we built the exact force analysis mathematical model of the cycloid—gear reducer,analyzed the forces born by the cycloid-gear,the bearings and the shaft,and produce the Matlab language software analyze of the forces analysis. We analyzed the forces of parts in the cycloid—gearreducer and calculated the intensity and the life of parts. From analyzed the results,we found the parts are our requests.When we establish the three—dimensional structure of the Planet—cycloid Reducer model with the software UG，Carry on visual design...
