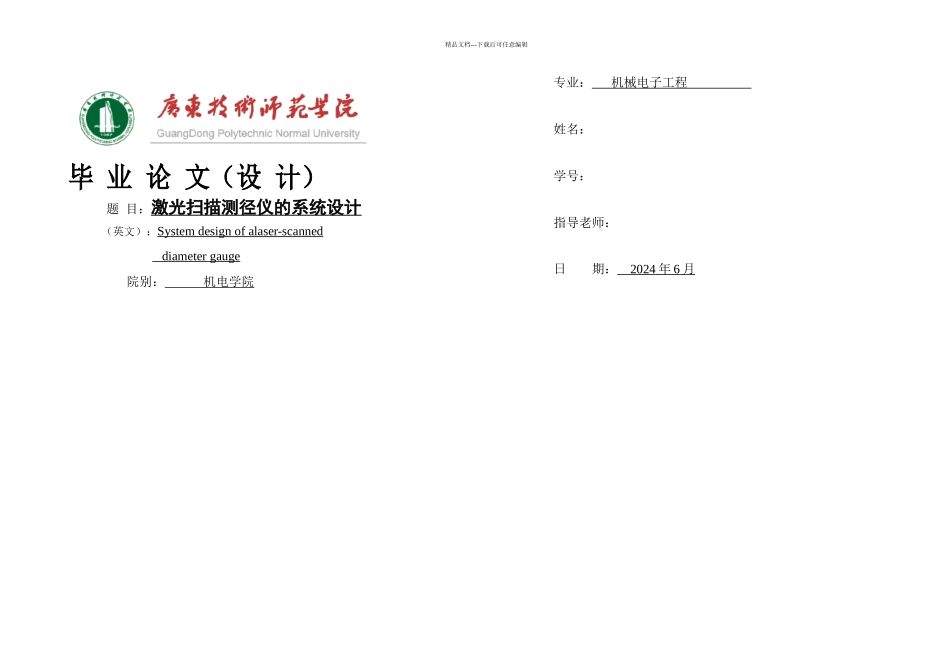

精品文档---下载后可任意编辑毕 业 论 文（设 计）题 目：激光扫描测径仪的系统设计（英文）：System design of alaser-scanned diameter gauge院别： 机电学院专业： 机械电子工程 姓名：学号：指导老师：日 期： 2024 年 6 月 精品文档---下载后可任意编辑激光扫描测径仪系统的设计摘要激光扫描测径仪系统是一种基于光学技术、现代激光、电子学、计算机、精密机械等多学科技术于一体在线检测系统。它是用可见激光作为光源，把被测对象的几何尺寸经过扫描光学系统和光电变换系统转变成电信号，再由计算机进行实时数据处理，给出测量结果，并数字显示。论文论述了激光扫描测径仪在线检测系统的工作原理，并对这类系统进行了总体设计,最后探讨了影响系统稳定性和精度的基本因素及解决方法。本设计具有检测速度快、精度高、非接触检测、闭环控制等特点,完全适用于回转体直径尺寸的在线检测和控制，尤其是热的、软的和运动的被测对象。关键字：测径仪；激光扫描；测量精度；精密结构；单片机精品文档---下载后可任意编辑System design of a laser-scanned diameter gaugeABSTRACTLaser scanning caliper gauge is an on-line detection system, which integratesmany modern technologies such as laser, electronics, computer, precision machinery technology etc. In the system,visible laser is used as the light source.The informations of the geometric dimension of the tested object are obtainedthrough a scanning optical systemand transformed into electrical signals by a photoelectric transformation system. The electrical signals are real-time processed by a computer and the measurement results are displayedthrough a digital display in the end. In the paper, firstly the working principle of laser scanning caliper gauge was discussed, then an intact system of a laser-scanned diameter gaugewas designedand the basic factors which influences the accuracy and stability of the system is discussed and the solving methods were put forward. This system has characteristics of detection speed, high precision, non-conta...
