梯级式直通桥架XQJT101

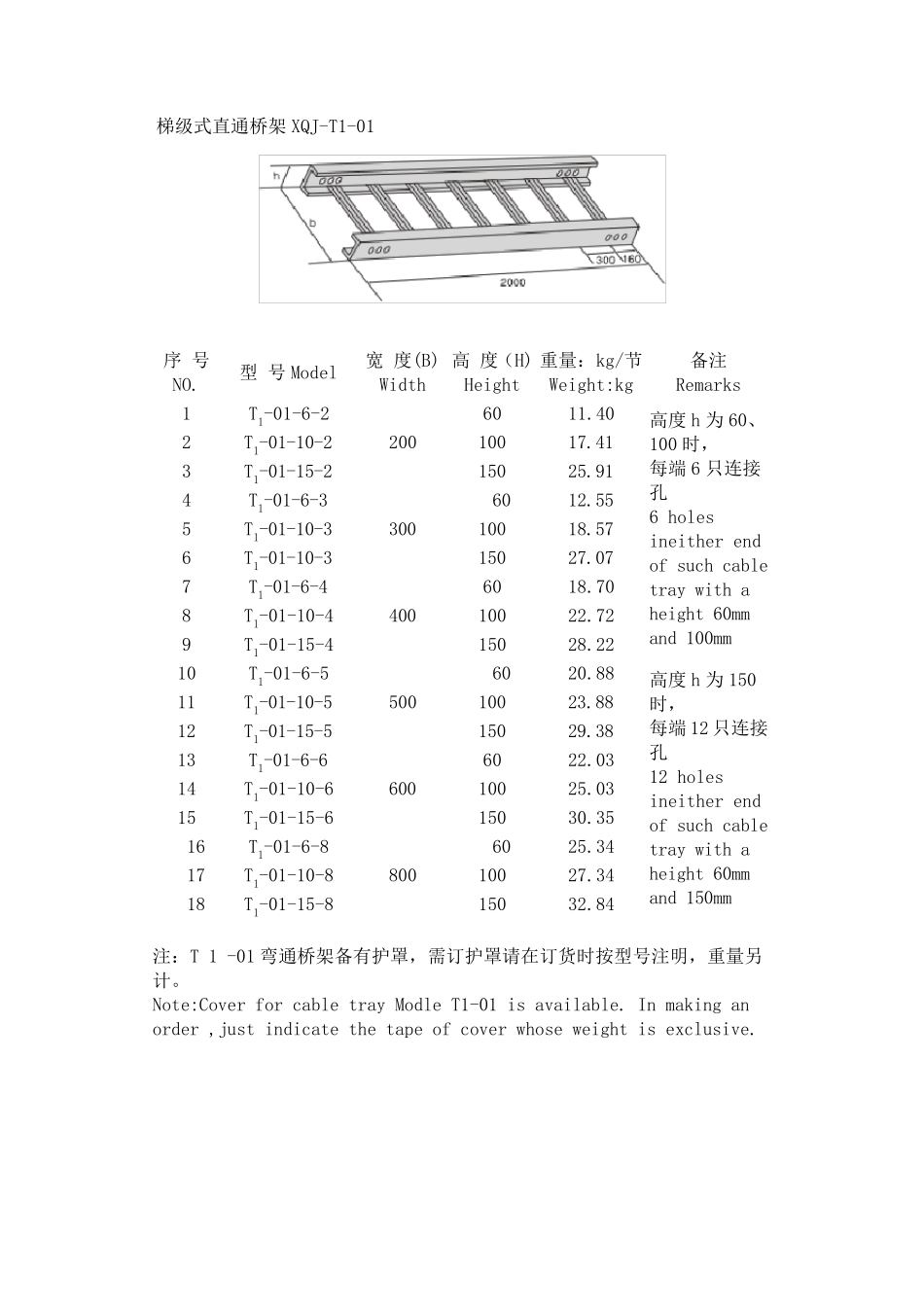

梯级式直通桥架XQJ-T1-01 序 号NO. 型 号Model 宽 度(B) Width 高 度（H) Height 重量：kg/节 Weight:kg 备注 Remarks 1 T1-01-6-2 200 60 11.40 高度h 为60、100 时， 每端 6 只连接孔 6 holes ineither end of such cable tray with a height 60mm and 100mm 2 T1-01-10-2 100 17.41 3 T1-01-15-2 150 25.91 4 T1-01-6-3 300 60 12.55 5 T1-01-10-3 100 18.57 6 T1-01-10-3 150 27.07 7 T1-01-6-4 400 60 18.70 8 T1-01-10-4 100 22.72 9 T1-01-15-4 150 28.22 10 T1-01-6-5 500 60 20.88 高度h 为150时， 每端 12 只连接孔 12 holes ineither end of such cable tray with a height 60mm and 150mm 11 T1-01-10-5 100 23.88 12 T1-01-15-5 150 29.38 13 T1-01-6-6 600 60 22.03 14 T1-01-10-6 100 25.03 15 T1-01-15-6 150 30.35 16 T1-01-6-8 800 60 25.34 17 T1-01-10-8 100 27.34 18 T1-01-15-8 150 32.84 注：T 1 -01 弯通桥架备有护罩，需订护罩请在订货时按型号注明，重量另计。 Note:Cover for cable tray Modle T1-01 is available. In making an order ,just indicate the tape of cover whose weight is exclusive. 梯级式水平弯通XQJ-T1-02 序 号NO. 型 号Model 宽 度(B) Width 高 度（H) Height L 重量：kg/节 Weight:kg 备注 Remarks 1 T1-02-6-2 200 60 470 5.89 高度h 为60、100时， 每端 6 只连接孔 6 holes ineither end of such cable tray with a height 60mm and 100mm 2 T1-02-10-2 100 6.96 3 T1-02-15-2 150 12.50 4 T1-02-6-3 300 60 570 7.46 5 T1-02-10-3 100 8.66 6 T1-02-10-3 150 11.95 7 T1-02-6-4 400 60 670 7.79 8 T1-02-10-4 100 9.85 9 T1-02-15-4 150 16.72 10 T1-02-6-5 500 60 770 10.53 高度h 为150时， 每端 12 只连接孔 12 holes ineither end of such cable tray with a height 60mm and 150mm 11 T1-02-10-5 100 12.61 12 T1-02-15-5 150 19.40 13 T1-02-6-6 600 60 870 12.20 14 T1-02-10-6 100 14.60 15 T1-02-15-6 150 21.40 16 T1-02-6-8 800 60 1070 13.59 17 T1-02-10-8 100 16.2...
