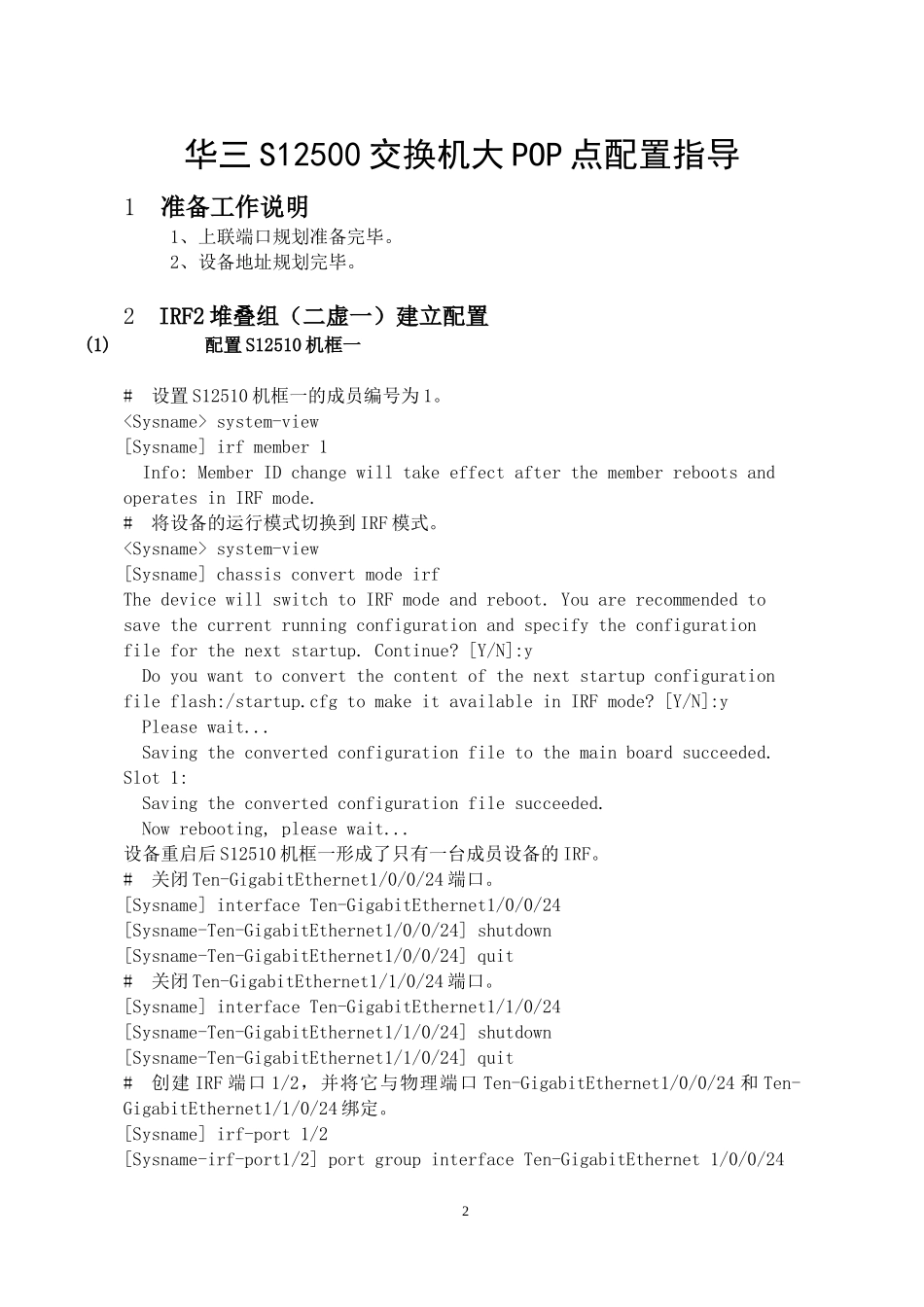

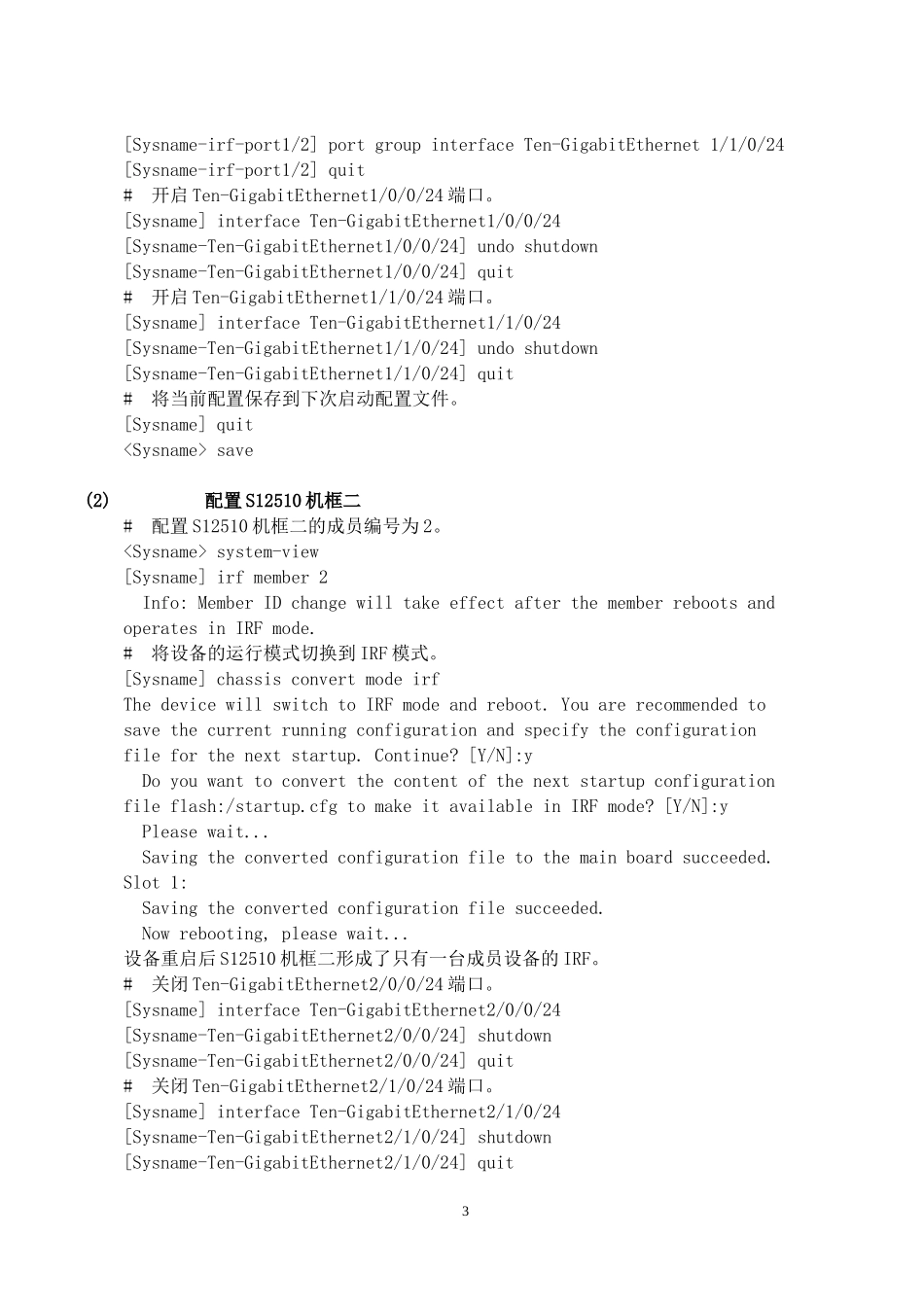

华三S12500交换机大POP点配置指导杭州华三通信技术有限公司2015年08月1华三S12500交换机大POP点配置指导1准备工作说明1、上联端口规划准备完毕。2、设备地址规划完毕。2IRF2堆叠组（二虚一）建立配置(1)配置S12510机框一#设置S12510机框一的成员编号为1。system-view[Sysname]irfmember1Info:MemberIDchangewilltakeeffectafterthememberrebootsandoperatesinIRFmode.#将设备的运行模式切换到IRF模式。system-view[Sysname]chassisconvertmodeirfThedevicewillswitchtoIRFmodeandreboot.Youarerecommendedtosavethecurrentrunningconfigurationandspecifytheconfigurationfileforthenextstartup.Continue?[Y/N]:yDoyouwanttoconvertthecontentofthenextstartupconfigurationfileflash:/startup.cfgtomakeitavailableinIRFmode?[Y/N]:yPleasewait...Savingtheconvertedconfigurationfiletothemainboardsucceeded.Slot1:Savingtheconvertedconfigurationfilesucceeded.Nowrebooting,pleasewait...设备重启后S12510机框一形成了只有一台成员设备的IRF。#关闭Ten-GigabitEthernet1/0/0/24端口。[Sysname]interfaceTen-GigabitEthernet1/0/0/24[Sysname-Ten-GigabitEthernet1/0/0/24]shutdown[Sysname-Ten-GigabitEthernet1/0/0/24]quit#关闭Ten-GigabitEthernet1/1/0/24端口。[Sysname]interfaceTen-GigabitEthernet1/1/0/24[Sysname-Ten-GigabitEthernet1/1/0/24]shutdown[Sysname-Ten-GigabitEthernet1/1/0/24]quit#创建IRF端口1/2，并将它与物理端口Ten-GigabitEthernet1/0/0/24和Ten-GigabitEthernet1/1/0/24绑定。[Sysname]irf-port1/2[Sysname-irf-port1/2]portgroupinterfaceTen-GigabitEthernet1/0/0/242[Sysname-irf-port1/2]portgroupinterfaceTen-GigabitEthernet1/1/0/24[Sysname-irf-port1/2]quit#开启Ten-GigabitEthernet1/0/0/24端口。[Sysname]interfaceTen-GigabitEthernet1/0/0/24[Sysname-Ten-GigabitEthernet1/0/0/24]undoshutdown[Sysname-Ten-GigabitEthernet1/0/0/24]quit#开启Ten-GigabitEthernet1/1/0/24端口。[Sysname]interfaceTen-GigabitEthernet1/1/0/24[Sysname-Ten-GigabitEthernet1/1/0/24]undoshutdown[Sysname-Ten-GigabitEthernet1/1/0/24]quit#将当前配置保存到下次启动配置文件。[Sysname]quitsave(2)配置S12510机框二#配置S12510机框二的成员编号为2。system-view[Sysname]irfmember2Info:MemberIDchangewilltakeeffectafterthememberrebootsandoperatesinIRFmode.#将设备的运行模式切换到IRF模式。[Sysname]chassisconvertmodeirfThedevicewillswitchtoIRFmodeandreboot.Youarerecommendedtosavethecurrentrunningconfigurationandspecifytheconfigurationfileforthenextstartup.Continue?[Y/N]:yDoyouwanttoconvertthecontentofthenextstartupconfigurationfileflash:/startup.cfgtomakeitavailableinIRFmode?[Y/N]:yPleasewait...Savingtheconvertedconfigurationfiletothemainboardsucceeded.Slot1:Savingtheconvertedconfigurationfilesucceeded.Nowrebooting,pleasewait...设备重启后S12510机框二形成了只有一台成员设备的IRF。#关闭Ten-GigabitEthernet2/0/0/24端口。[Sysname]interfaceTen-GigabitEthernet2/0/0/24[Sysname-Ten-GigabitEthernet2/0/0/24]shutdown[Sysname-Ten-GigabitEthernet2/0/0/24]quit#关闭Ten-GigabitEthernet2/1/0/24端口。[Sysname]interfaceTen-GigabitEthernet2/1/0/24[Sysname-Ten-GigabitEthernet2/1/0/24]shutdown[Sysname-Ten-GigabitEthernet2/1/0/24]quit3#创建IRF端口2/1，并将它与物理端口Ten-GigabitEthernet2/0/0/24和Ten-GigabitEthernet2/1/0/24绑定。[Sysname]irf-port2/1[Sysname-irf-port2/1]portgroupinterfaceTen-GigabitEthernet2/0/0/24[Sysname-irf-port2/1]portgroupinterfaceTen-GigabitEthernet2/1/0/24[Sysname-irf-port2/1]quit#开启Ten-GigabitEthernet2/0/0/24端口。[Sysname]interfaceTen-GigabitEthernet2/0/0/24[Sysname-Ten-GigabitEth...
