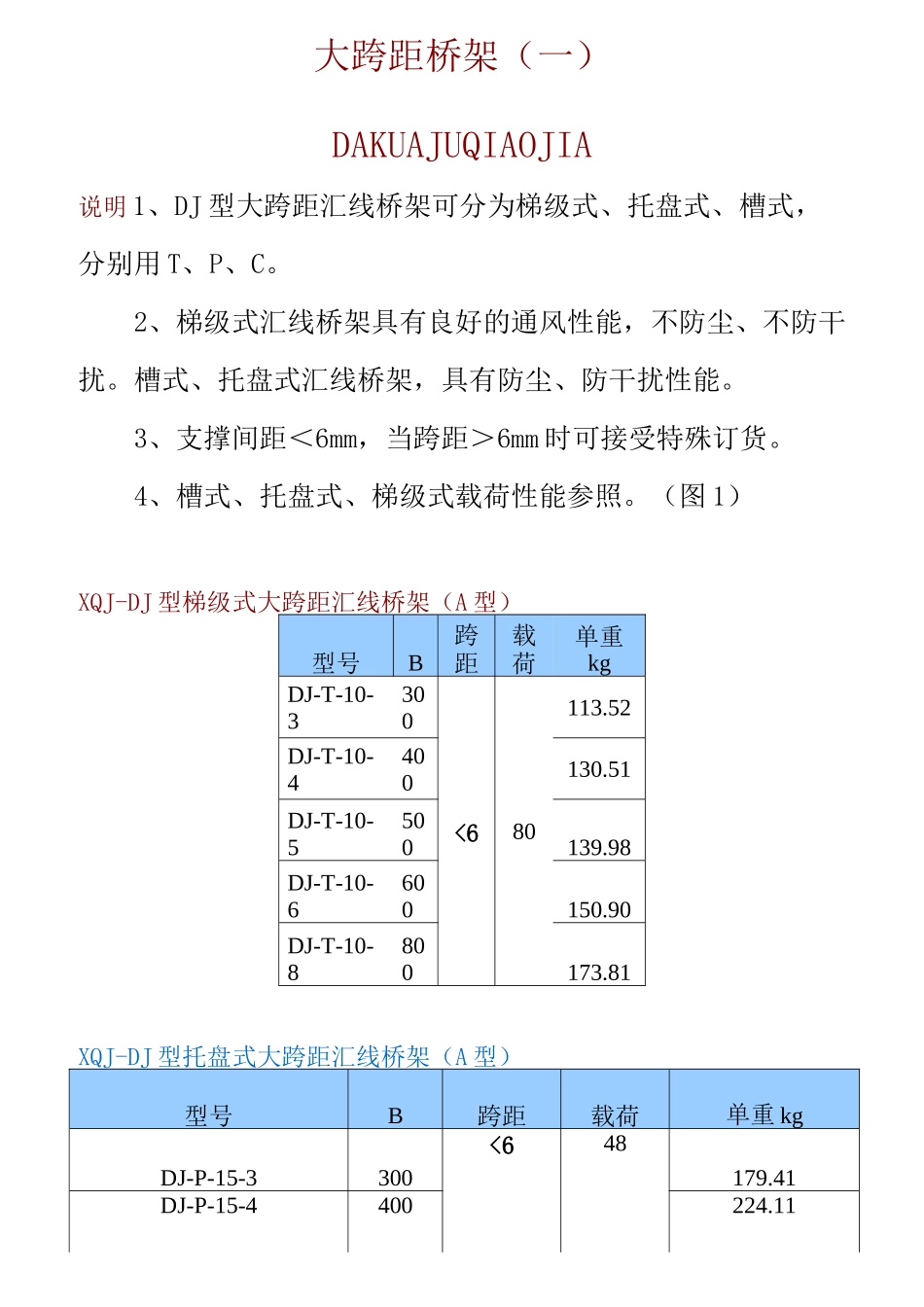

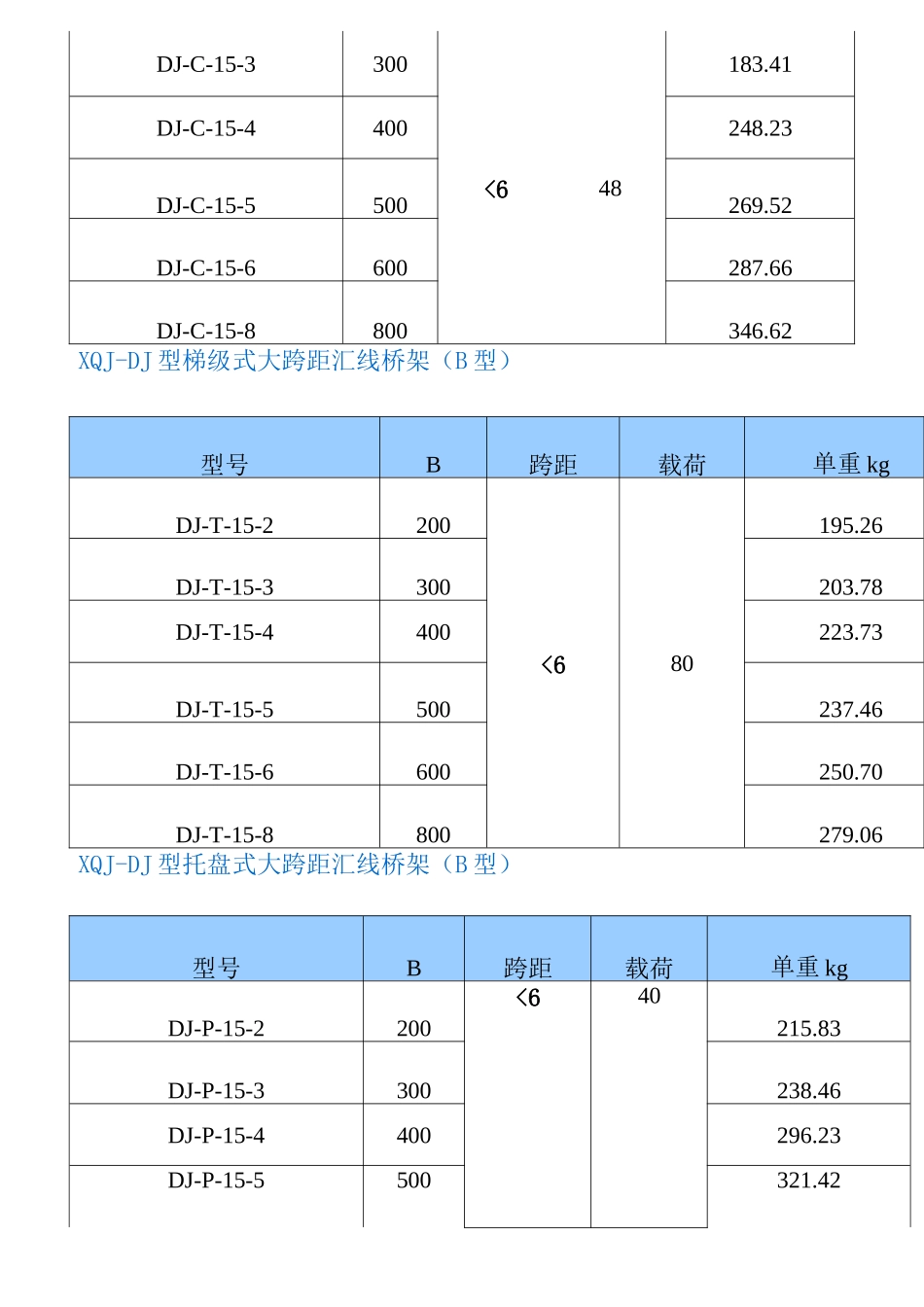

大跨距桥架（一）DAKUAJUQIAOJIA说明 1、DJ 型大跨距汇线桥架可分为梯级式、托盘式、槽式，分别用 T、P、C。2、梯级式汇线桥架具有良好的通风性能，不防尘、不防干扰。槽式、托盘式汇线桥架，具有防尘、防干扰性能。3、支撑间距＜6mm，当跨距＞6mm 时可接受特殊订货。4、槽式、托盘式、梯级式载荷性能参照。（图 1）XQJ-DJ 型梯级式大跨距汇线桥架（A 型）型号B跨距载荷单重kgDJ-T-10-3300<680113.52DJ-T-10-4400130.51DJ-T-10-5500139.98DJ-T-10-6600150.90DJ-T-10-8800173.81XQJ-DJ 型托盘式大跨距汇线桥架（A 型）型号B跨距载荷单重 kgDJ-P-15-3300<648179.41DJ-P-15-4400224.11DJ-P-15-5500252.70DJ-P-15-6600274.14DJ-P-15-8800321.17XQJ-DJ 型槽式大跨距汇线桥架（A 型）型号B跨距载荷单重 kgDJ-C-15-3300<648183.41DJ-C-15-4400248.23DJ-C-15-5500269.52DJ-C-15-6600287.66DJ-C-15-8800346.62XQJ-DJ 型梯级式大跨距汇线桥架（B 型）型号B跨距载荷单重 kgDJ-T-15-2200<680195.26DJ-T-15-3300203.78DJ-T-15-4400223.73DJ-T-15-5500237.46DJ-T-15-6600250.70DJ-T-15-8800279.06XQJ-DJ 型托盘式大跨距汇线桥架（B 型）型号B跨距载荷单重 kgDJ-P-15-2200<640215.83DJ-P-15-3300238.46DJ-P-15-4400296.23DJ-P-15-5500321.42DJ-P-15-6600347.58DJ-P-15-8800371.82XQJ-DJ 型槽式大跨距汇线桥架（B 型）kg/型号B跨距载荷单重 kgDJ-C-15-2200<680226.13DJ-C-15-3300251.64DJ-C-15-4400321.43DJ-C-15-5500343.09DJ-C-15-6600365.58DJ-C-15-8800386.11槽式、托盘式、梯级式载荷线曲线1 梯级式2 槽式托盘式挠度（mm）距（6 米）大跨距桥架（二）DAKUAJUQIAOJIA说明1、DJ 型桥架可分为梯级式、托盘式、槽式，分别用 T、P、Co2、梯级式汇线桥架具有良好的通风性能，不防尘、不防干扰。槽式、托盘式汇线桥架，具有防尘、防干扰性能。3、支撑间距 v6mm,当跨距〉6mm 时可接受特殊订货。4、槽式、托盘式、梯级式载荷性能参照。（图 1）XQJ-DJ 型梯级式桥架（A 型）型号B跨距载荷单重 kgDJ-T-10-3300<64880.06DJ-T-10-440094.61DJ-T-10-5500101.74DJ-T-10-6600108.86DJ-T-10-8800129.10XQJ-DJ 型托盘式桥架（A 型）型号B跨距载荷单重 kgDJ-P-10-3300<648144.61DJ-P-10-4400185.47DJ-P-10-5500209.23DJ-P-10-6600232.92DJ-P-10-8800277.70XQJ-DJ 型槽式桥架（A 型）型号B跨距载荷单重 kgDJ-C-10-3300<648147.52DJ-C-10-44...
