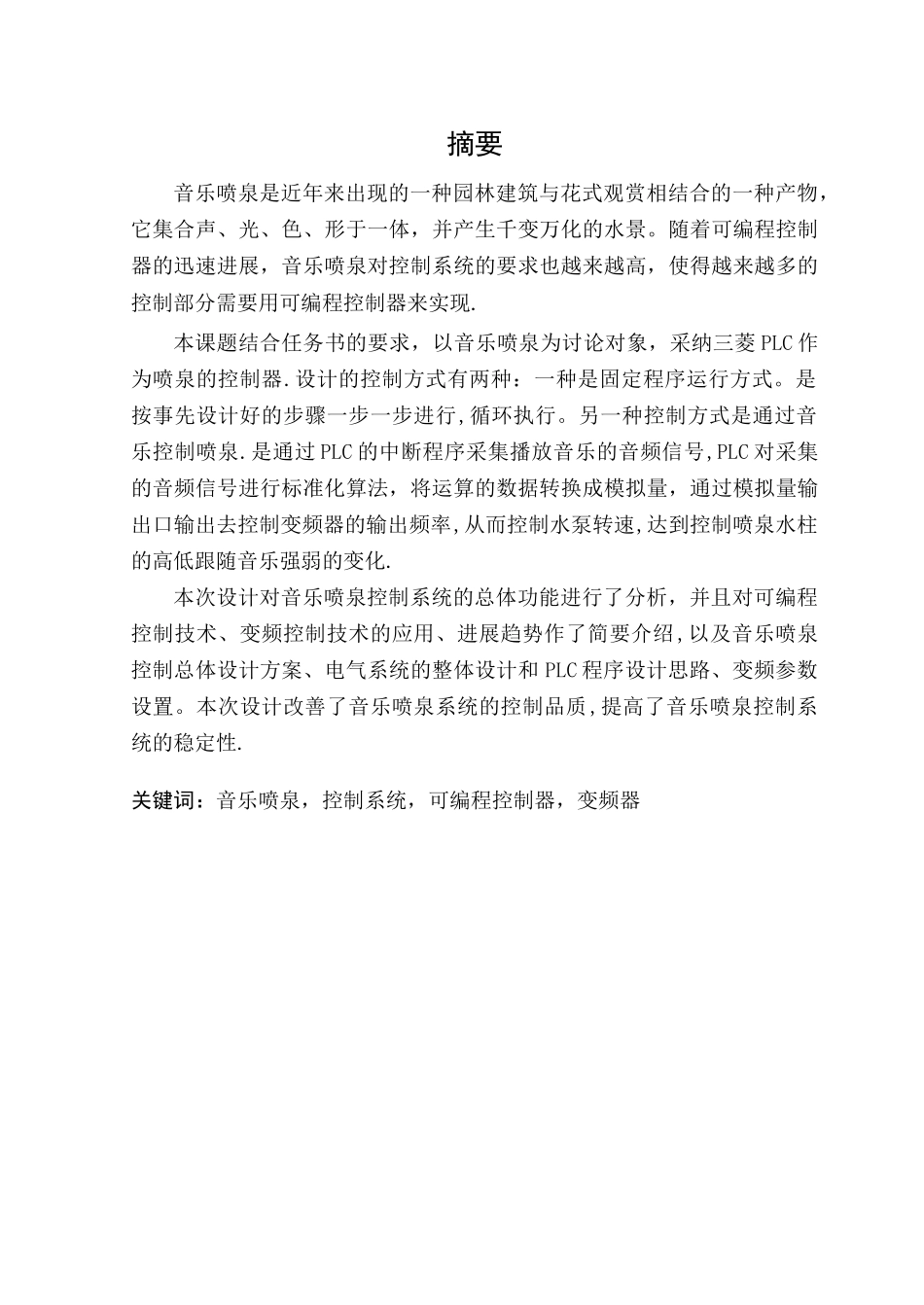

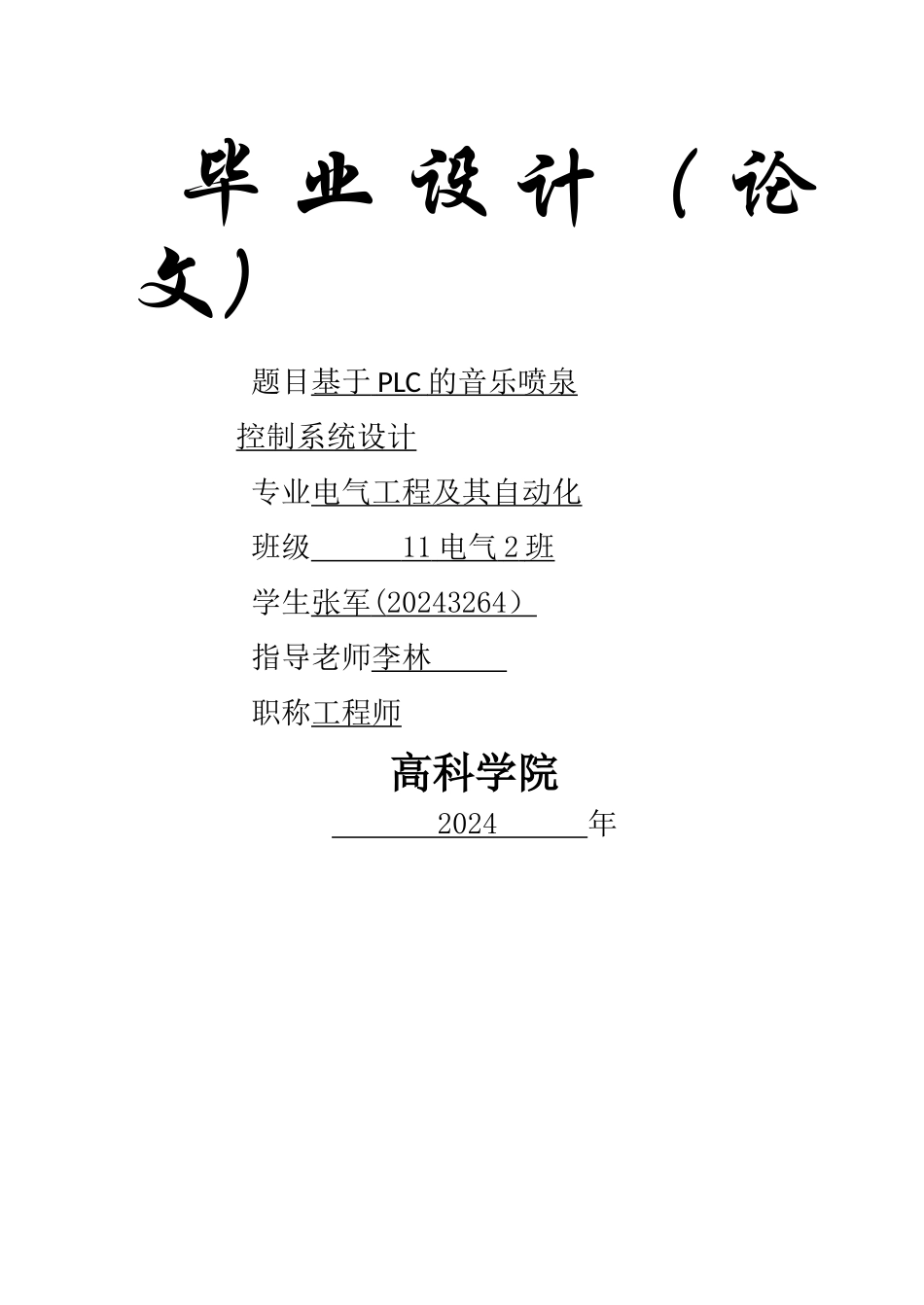

毕 业 设 计( 论文)题目基于 PLC 的音乐喷泉 控制系统设计专业电气工程及其自动化班级 11 电气 2 班 学生张军 ( 2024 3264 ) 指导老师李林 职称工程师高科学院 2024 年摘要音乐喷泉是近年来出现的一种园林建筑与花式观赏相结合的一种产物,它集合声、光、色、形于一体,并产生千变万化的水景。随着可编程控制器的迅速进展,音乐喷泉对控制系统的要求也越来越高,使得越来越多的控制部分需要用可编程控制器来实现.本课题结合任务书的要求,以音乐喷泉为讨论对象,采纳三菱 PLC 作为喷泉的控制器.设计的控制方式有两种:一种是固定程序运行方式。是按事先设计好的步骤一步一步进行,循环执行。另一种控制方式是通过音乐控制喷泉.是通过 PLC 的中断程序采集播放音乐的音频信号,PLC 对采集的音频信号进行标准化算法,将运算的数据转换成模拟量,通过模拟量输出口输出去控制变频器的输出频率,从而控制水泵转速,达到控制喷泉水柱的高低跟随音乐强弱的变化.本次设计对音乐喷泉控制系统的总体功能进行了分析,并且对可编程控制技术、变频控制技术的应用、进展趋势作了简要介绍,以及音乐喷泉控制总体设计方案、电气系统的整体设计和 PLC 程序设计思路、变频参数设置。本次设计改善了音乐喷泉系统的控制品质,提高了音乐喷泉控制系统的稳定性.关键词:音乐喷泉,控制系统,可编程控制器,变频器ABSTRACTIn recent years , music fountain is the emergence of a garden building combined with a fancy watch a product , its collection of sound , light , color, shape, and generates kaleidoscope waterscape。 Along with the rapid development of the programmable controller, music fountain is becoming more and higher to the requirement of control system; make more and more need to use PLC to realize control part.This topic combined with the requirements of the specification, with music fountain as the research object; adopt Mitsubishi PLC as the controller of the fountain model. Design of the control method has two kinds : one is fixed program operation mode。 According to design a good steps in advance step by step, execution cycles...
