2025年冲孔压弯切断连续模具设计含全套说明书和CAD图纸

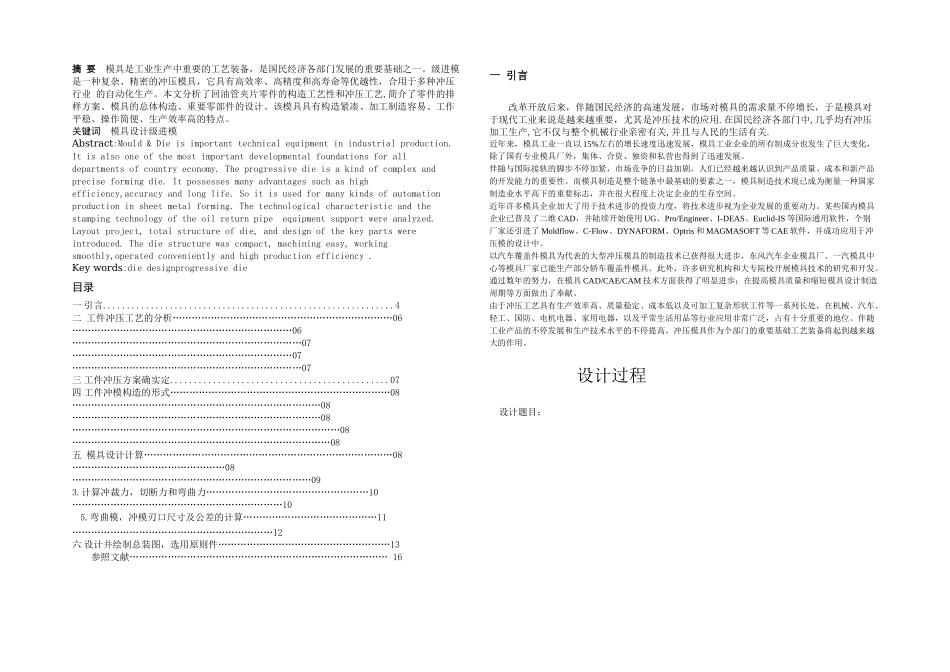

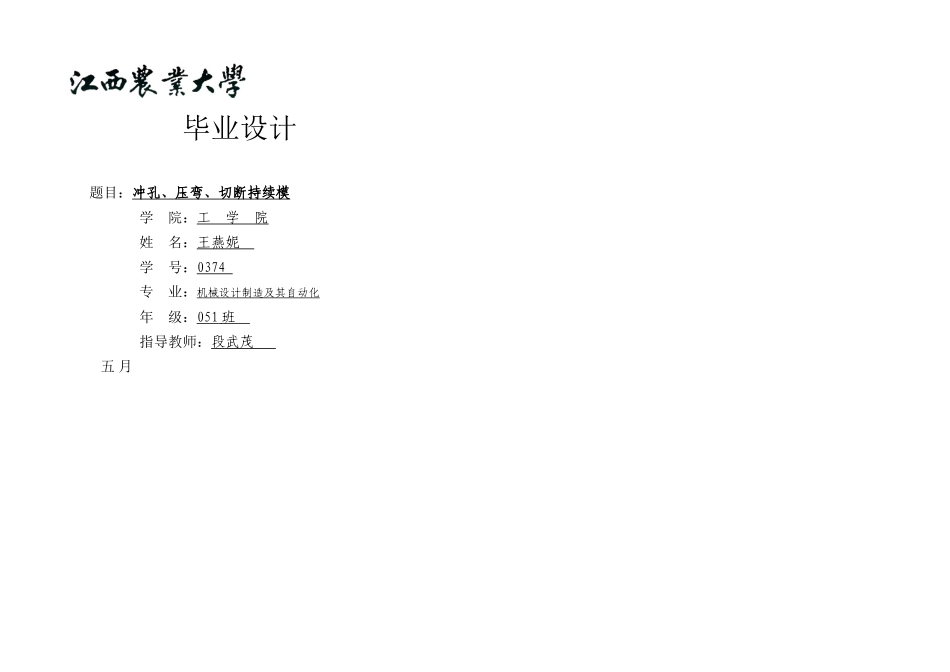

毕业设计题目：冲孔、压弯、切断持续模 学院：工 学 院 姓名：王燕妮 学号：0374 专业：机械设计制造及其自动化 年级：051 班 指导教师：段武茂 五 月摘 要 模具是工业生产中重要的工艺装备，是国民经济各部门发展的重要基础之一。级进模是一种复杂、精密的冲压模具，它具有高效率、高精度和高寿命等优越性，合用于多种冲压行业 的自动化生产。本文分析了回油管夹片零件的构造工艺性和冲压工艺,简介了零件的排样方案、模具的总体构造、重要零部件的设计。该模具具有构造紧凑、加工制造容易、工作平稳、操作简便、生产效率高的特点。关键词 模具设计级进模 Abstract:Mould & Die is important technical equipment in industrial production. It is also one of the most important developmental foundations for all departments of country economy. The progressive die is a kind of complex and precise forming die. It possesses many advantages such as high efficiency,accuracy and long life. So it is used for many kinds of automation production in sheet metal forming. The technological characteristic and the stamping technology of the oil return pipe equipment support were analyzed. Layout project, total structure of die, and design of the key parts were introduced. The die structure was compact, machining easy, working smoothly,operated conveniently and high production efficiency .Key words:die designprogressive die目录 一 引言.............................................................4二 工件冲压工艺的分析……………………………………………………………06……………………………………………………………06………………………………………………………………07……………………………………………………………07………………………………………………………………07 三 工件冲压方案确实定..............................................07 四 工件冲模构造的形式……………………………………………………………08……………………………………………………………………08……………………………………………………………………08…...
