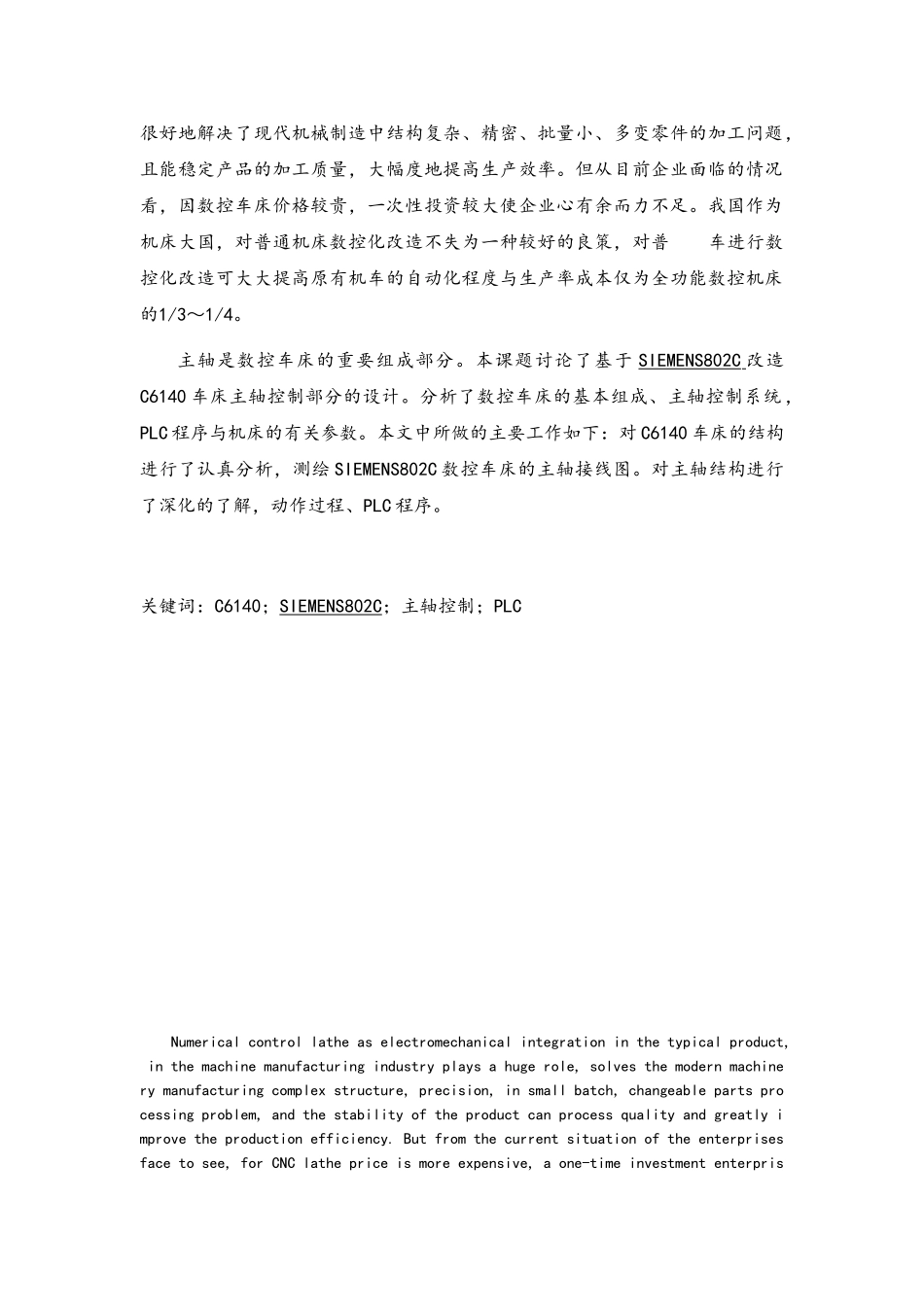

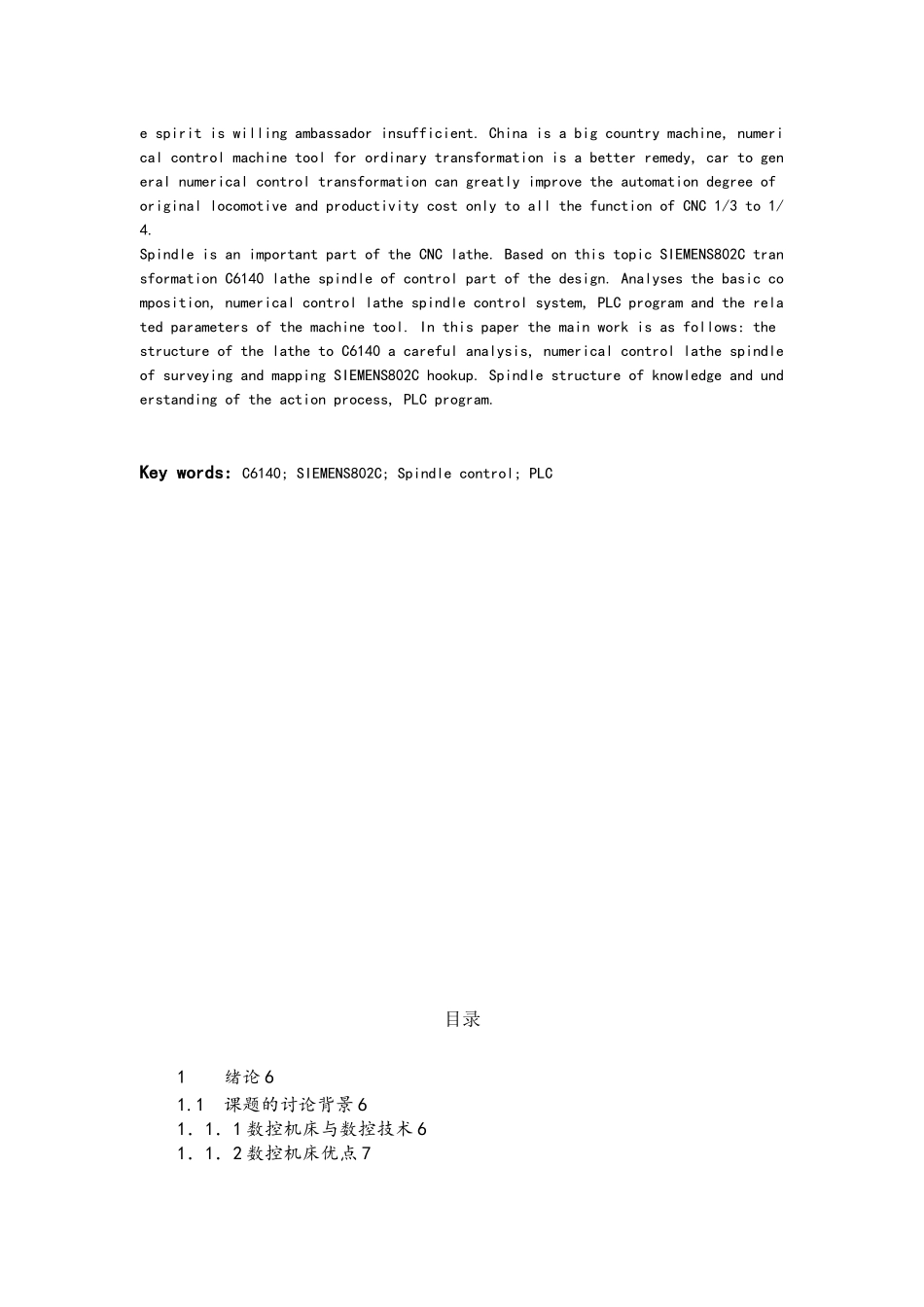

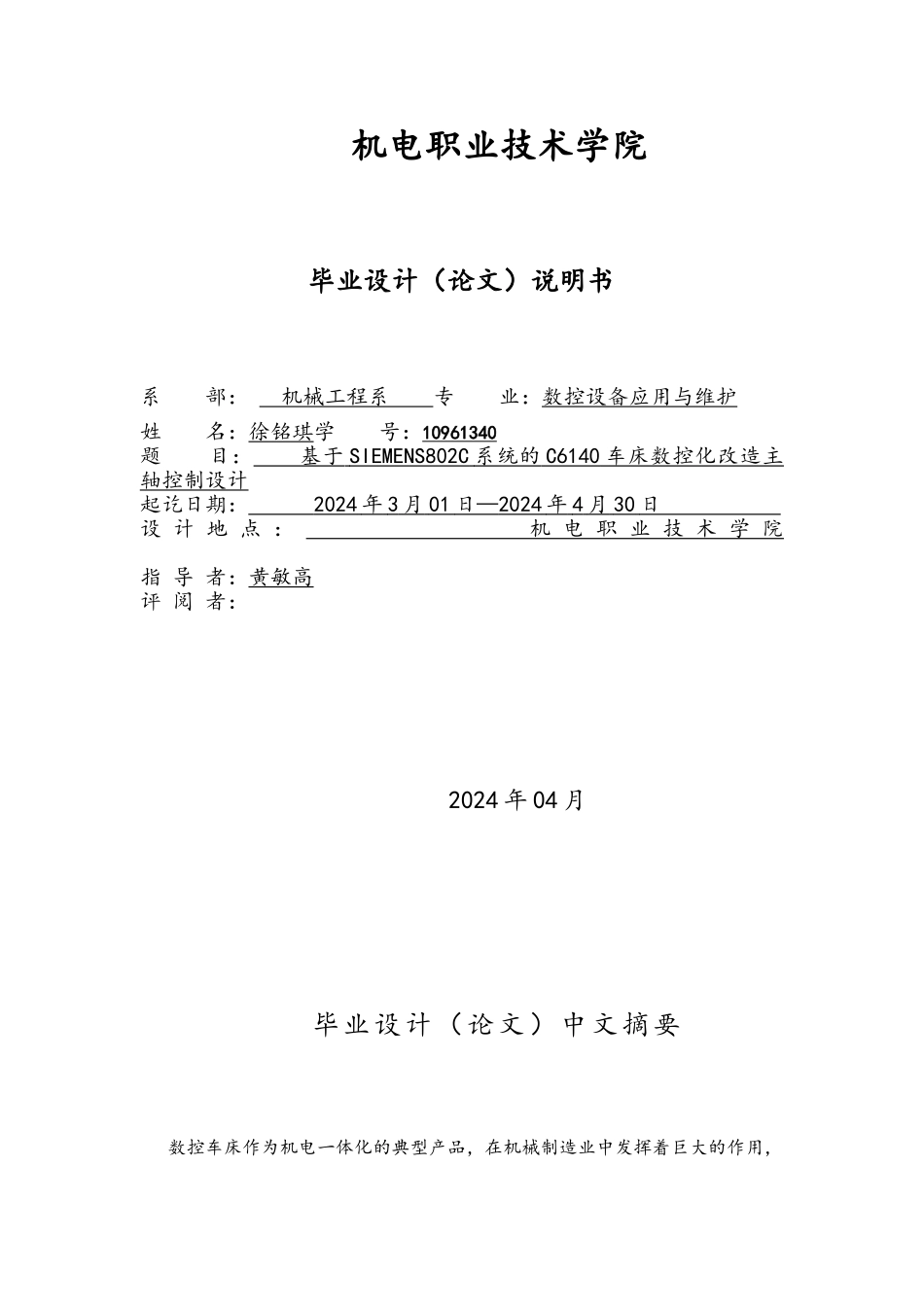

机电职业技术学院毕业设计(论文)说明书系 部: 机械工程系 专 业:数控设备应用与维护姓 名:徐铭琪学 号:10961340题 目: 基于 SIEMENS802C 系统的 C6140 车床数控化改造主 轴控制设计起讫日期: 2024 年 3 月 01 日— 2024 年 4 月 30 日 设 计 地 点 : 机 电 职 业 技 术 学 院 指 导 者:黄敏高评 阅 者: 2024 年 04 月 毕业设计(论文)中文摘要数控车床作为机电一体化的典型产品,在机械制造业中发挥着巨大的作用,很好地解决了现代机械制造中结构复杂、精密、批量小、多变零件的加工问题,且能稳定产品的加工质量,大幅度地提高生产效率。但从目前企业面临的情况看,因数控车床价格较贵,一次性投资较大使企业心有余而力不足。我国作为机床大国,对普通机床数控化改造不失为一种较好的良策,对普 车进行数控化改造可大大提高原有机车的自动化程度与生产率成本仅为全功能数控机床的1/3~1/4。主轴是数控车床的重要组成部分。本课题讨论了基于 SIEMENS802C 改造 C6140 车床主轴控制部分的设计。分析了数控车床的基本组成、主轴控制系统 ,PLC 程序与机床的有关参数。本文中所做的主要工作如下:对 C6140 车床的结构进行了认真分析,测绘 SIEMENS802C 数控车床的主轴接线图。对主轴结构进行了深化的了解,动作过程、PLC 程序。关键词:C6140;SIEMENS802C;主轴控制;PLCNumerical control lathe as electromechanical integration in the typical product, in the machine manufacturing industry plays a huge role, solves the modern machinery manufacturing complex structure, precision, in small batch, changeable parts processing problem, and the stability of the product can process quality and greatly improve the production efficiency. But from the current situation of the enterprises face to see, for CNC lathe price is more expensive, a one-time investment enterprise spirit is willing ambassador insufficient. China is a big country machine, numerical control machine tool for ordinary transformation is a better remedy, car to general numerical control transformation can greatly improve the automation d...
