KD软件的基础操作规范标准

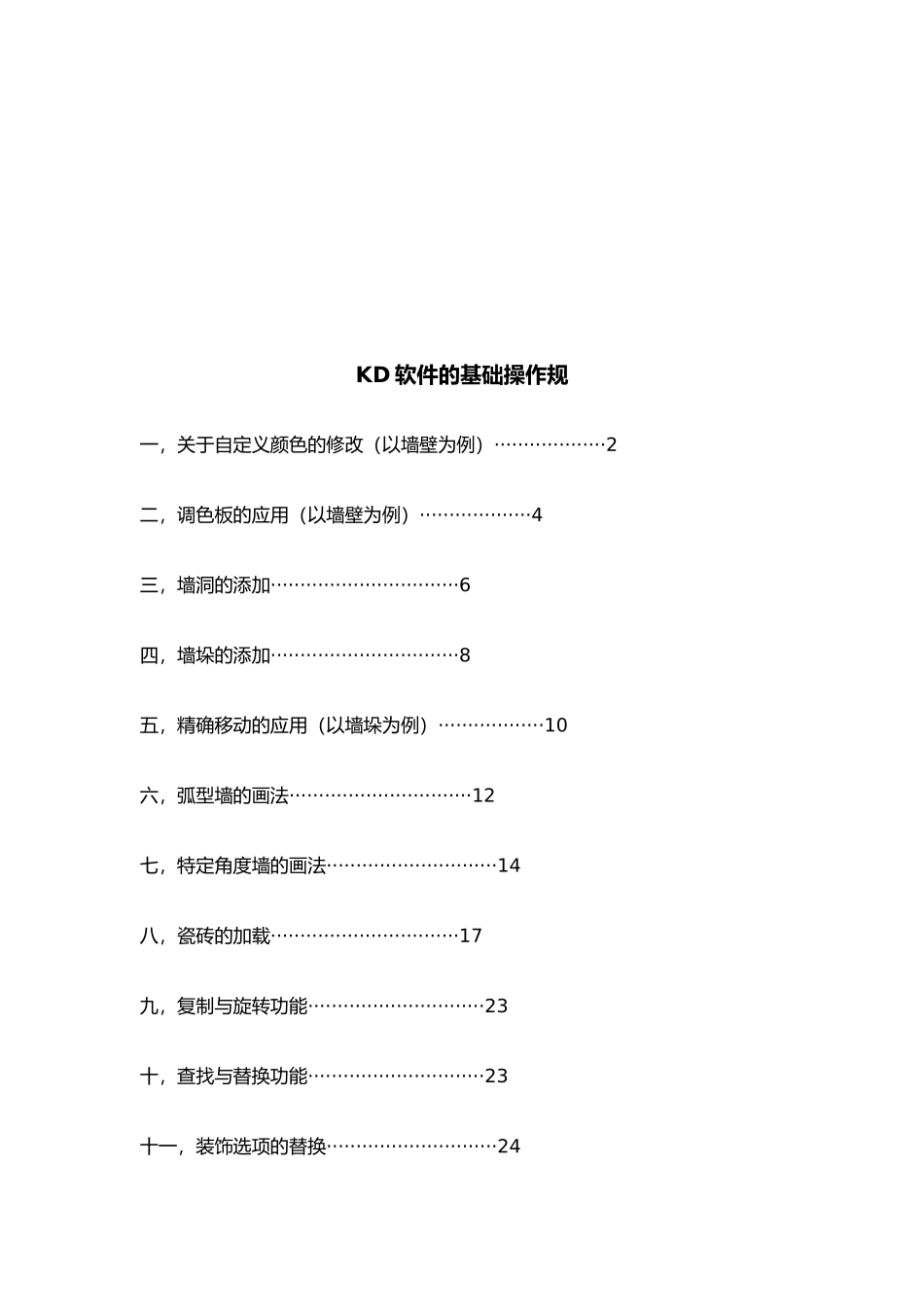

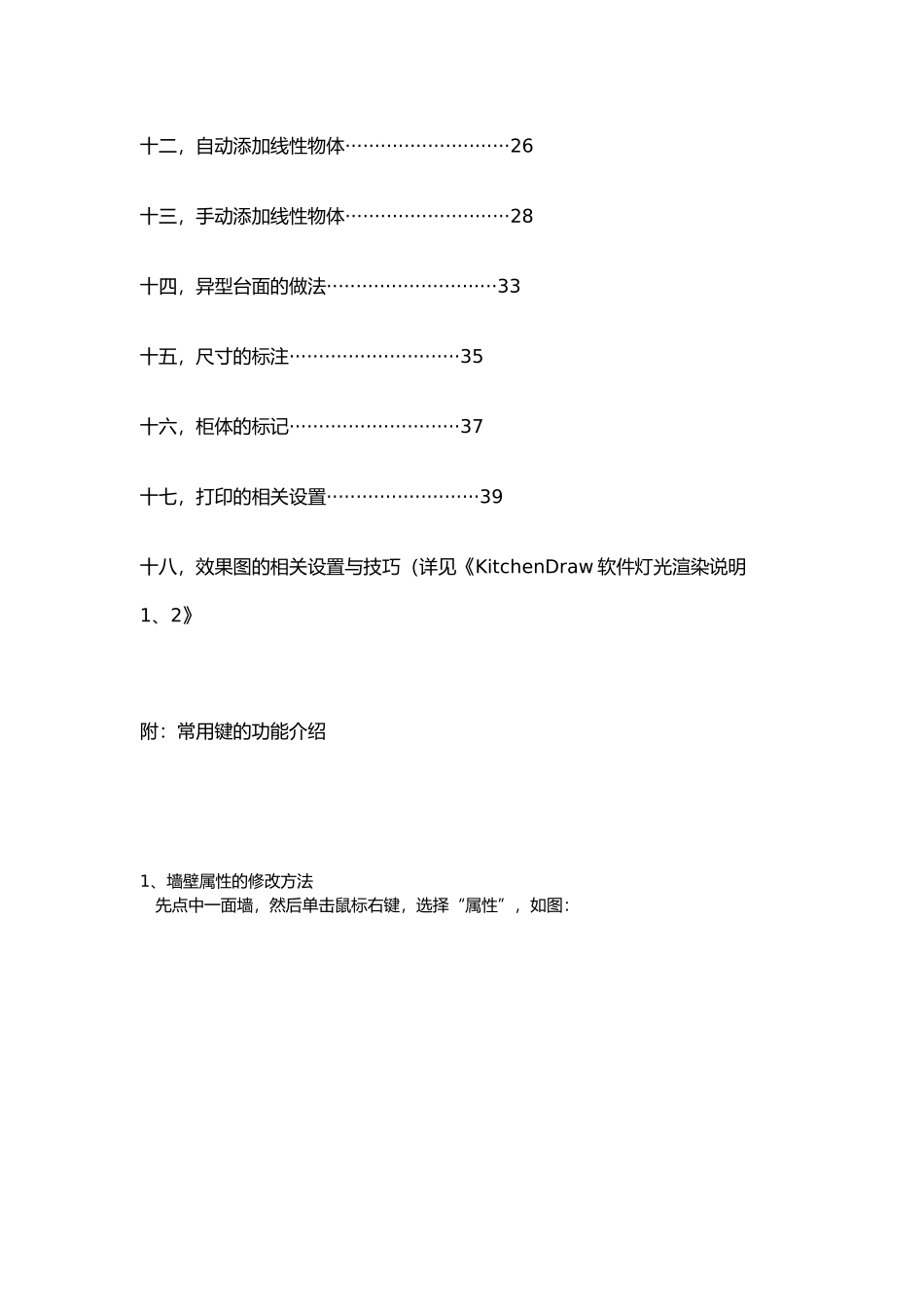

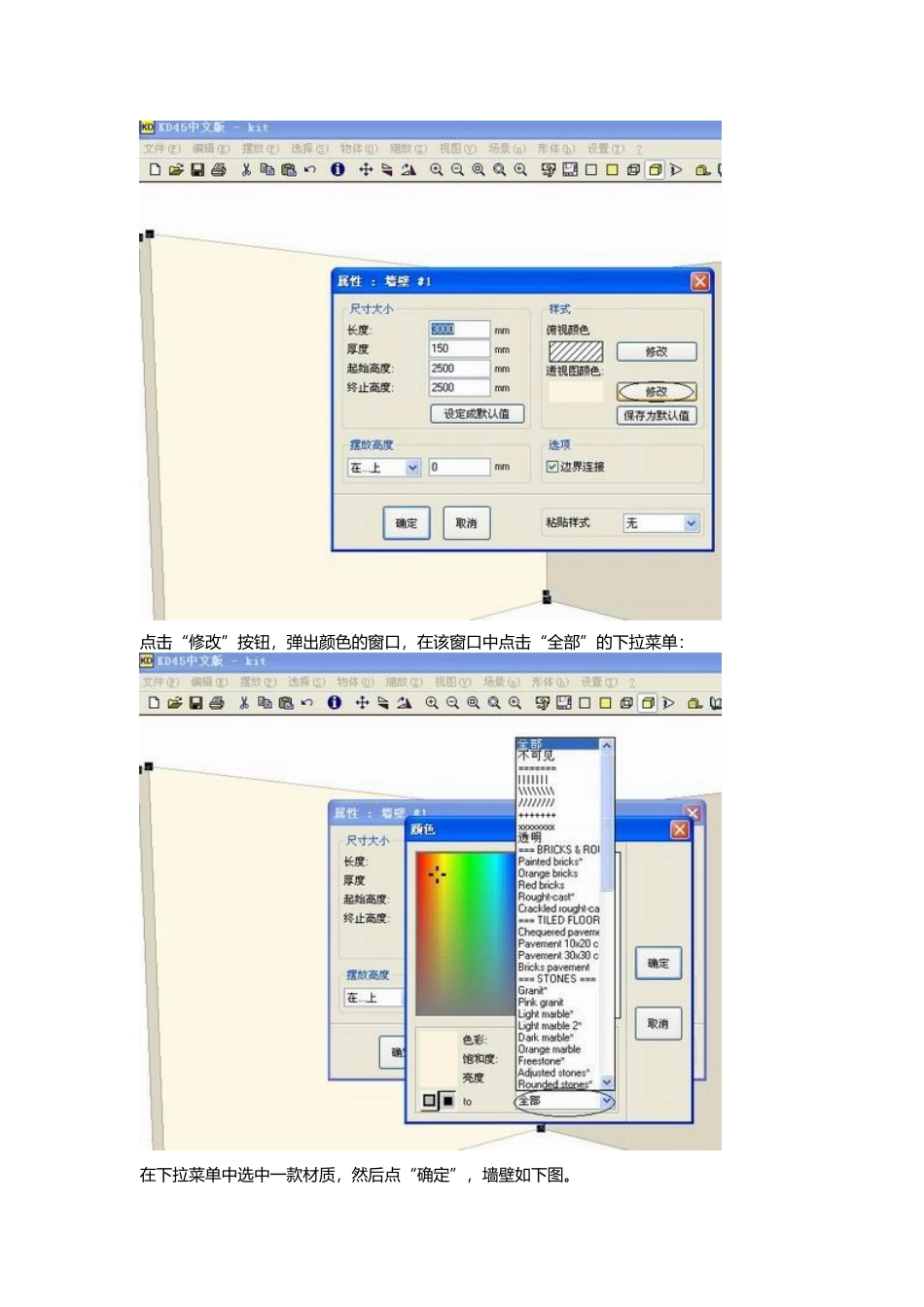

KD 软件的基础操作规一，关于自定义颜色的修改（以墙壁为例）···················2二，调色板的应用（以墙壁为例）···················4三，墙洞的添加································6四，墙垛的添加································8五，精确移动的应用（以墙垛为例）··················10六，弧型墙的画法·······························12七，特定角度墙的画法·····························14八，瓷砖的加载································17九，复制与旋转功能······························23十，查找与替换功能······························23十一，装饰选项的替换·····························24十二，自动添加线性物体····························26十三，手动添加线性物体····························28十四，异型台面的做法·····························33十五，尺寸的标注·····························35十六，柜体的标记·····························37十七，打印的相关设置··························39十八，效果图的相关设置与技巧（详见《KitchenDraw 软件灯光渲染说明1、2》附：常用键的功能介绍1、墙壁属性的修改方法 先点中一面墙，然后单击鼠标右键，选择“属性”，如图：点击“修改”按钮，弹出颜色的窗口，在该窗口中点击“全部”的下拉菜单：在下拉菜单中选中一款材质，然后点“确定”，墙壁如下图。2、用调色板功能给墙壁加材质 例：想给墙壁加上这样的图案，如下图：假设这图放在 C 盘，名字叫 brick.jpg选择“设置”——“图形”——“调色板”功能，会弹出如下窗口，点击“增加”会在表中加入一行，输入代码和名字，可以任意输，只要操作者自身能识别。再在“文件（JPG 或 BMP）”一栏双击，会弹出如下窗口：然后找到 brick.jpg 图片所在目录，并选择该图片，点确定。如下图点保存后...
