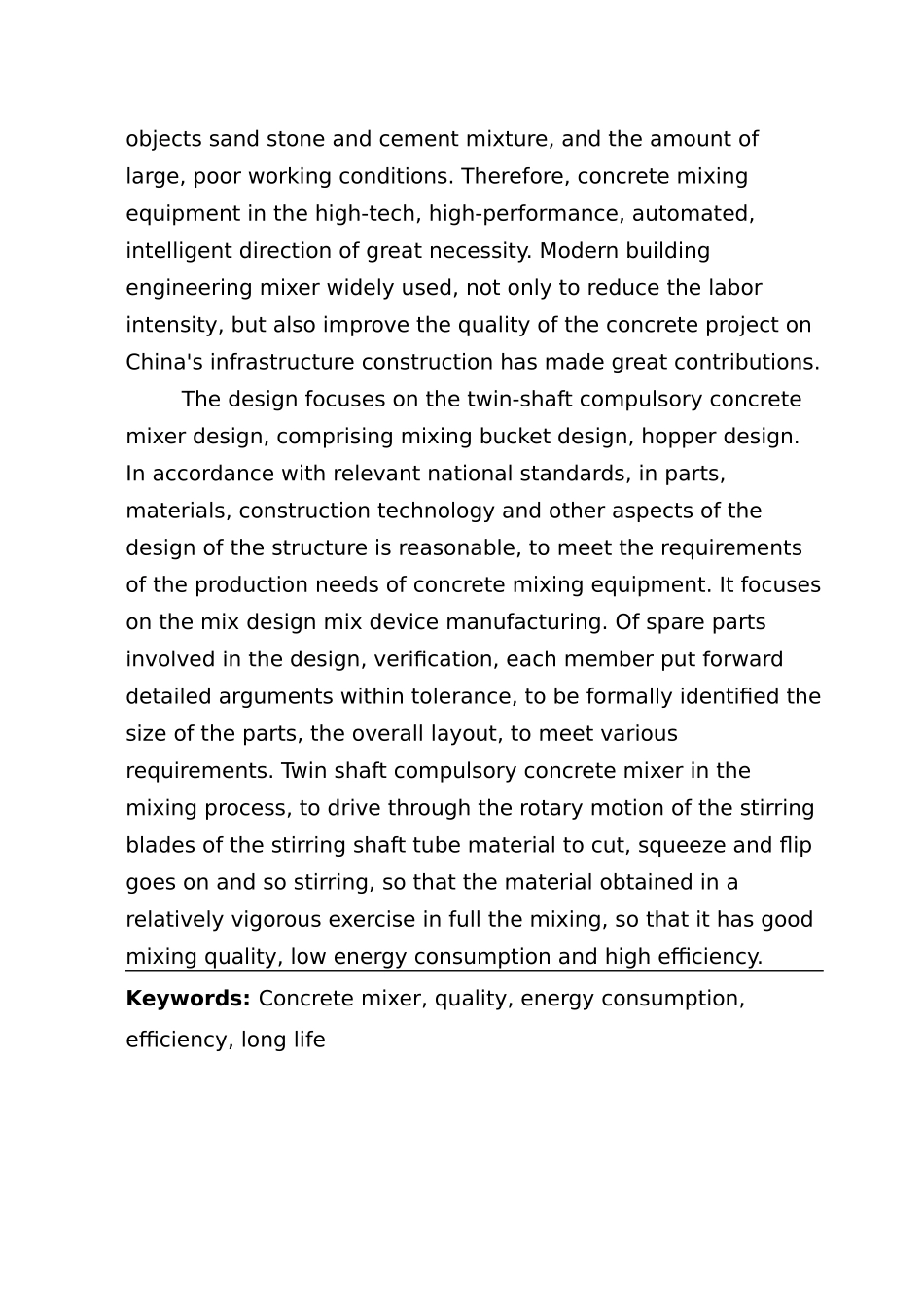

摘 要混凝土搅拌设备是建筑机械 中的一个重要设备，它是混凝土生产的一个关键设备。由于混凝土搅拌设备的工作对象是砂 石和水泥等混合料，并且用量大，工作环境恶劣。因此混凝土搅拌设备在向高技术、高效能、 自动化、智能化的方向进展有很大的必要性。 现代建筑工程中搅拌机的广泛应用，不仅减轻了工人的劳动强度，还提高了混凝土工程的质量，对我国的基础设施建设做出了很大贡献。本次设计主要对双卧轴强制式混凝土搅拌机进行设计，包含搅拌桶的设计、料斗的设计等。依据国家的相关标准，在零部件、材 料、结构工艺等方面设计出结构合理的、满足要求生产需要的混凝土搅拌设备。重点讨论搅 拌装置的设计、制造。对涉与的零部件进行设计、校核，对各部件提出细化的参数 容，待各零件的尺寸正式确定后，进行总体布置，满足各种要求。双卧轴强制式混凝土搅拌机在搅拌过程中，通过搅拌轴的回转运动来带动搅拌叶片对筒物料进行剪切、挤压和翻转推移等搅拌作用，使物料在相对的剧烈运动中的得到充分的拌合，因而它具有拌合质量好、能耗低、效率高等优点。关键词：混凝土搅拌机、质量、能耗、效率、寿命长AbstractTConstruction machinery concrete mixing equipment is an important device, it is one of the key equipment of concrete production. Since the concrete mixing equipment is working objects sand stone and cement mixture, and the amount of large, poor working conditions. Therefore, concrete mixing equipment in the high-tech, high-performance, automated, intelligent direction of great necessity. Modern building engineering mixer widely used, not only to reduce the labor intensity, but also improve the quality of the concrete project on China's infrastructure construction has made great contributions. The design focuses on the twin-shaft compulsory concrete mixer design, comprising mixing bucket design, hopper design. In accordance with relevant national standards, in parts, materials, construction technology and other aspects of the design of the structure is reasonable, to meet the requirements of the production needs...
