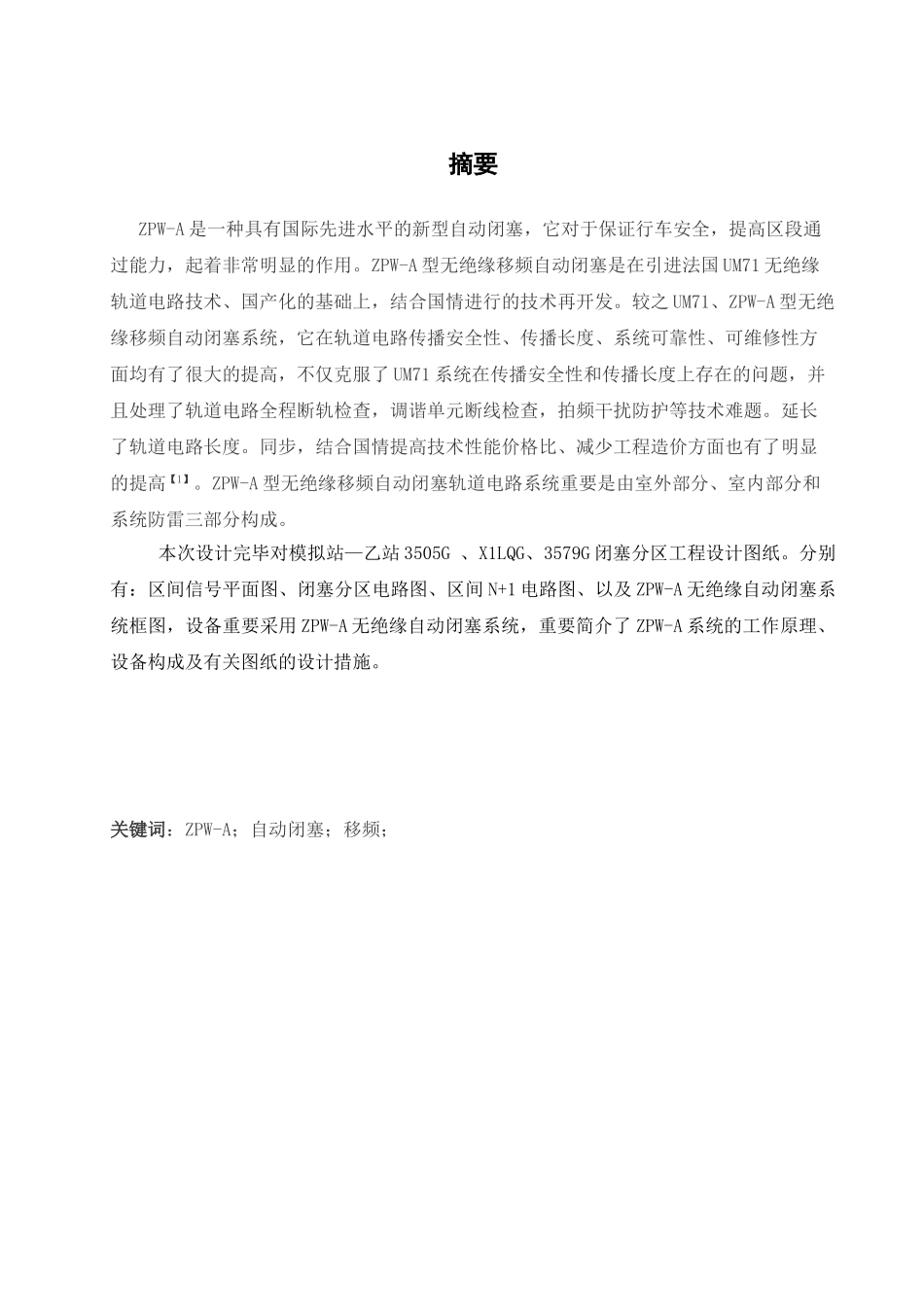

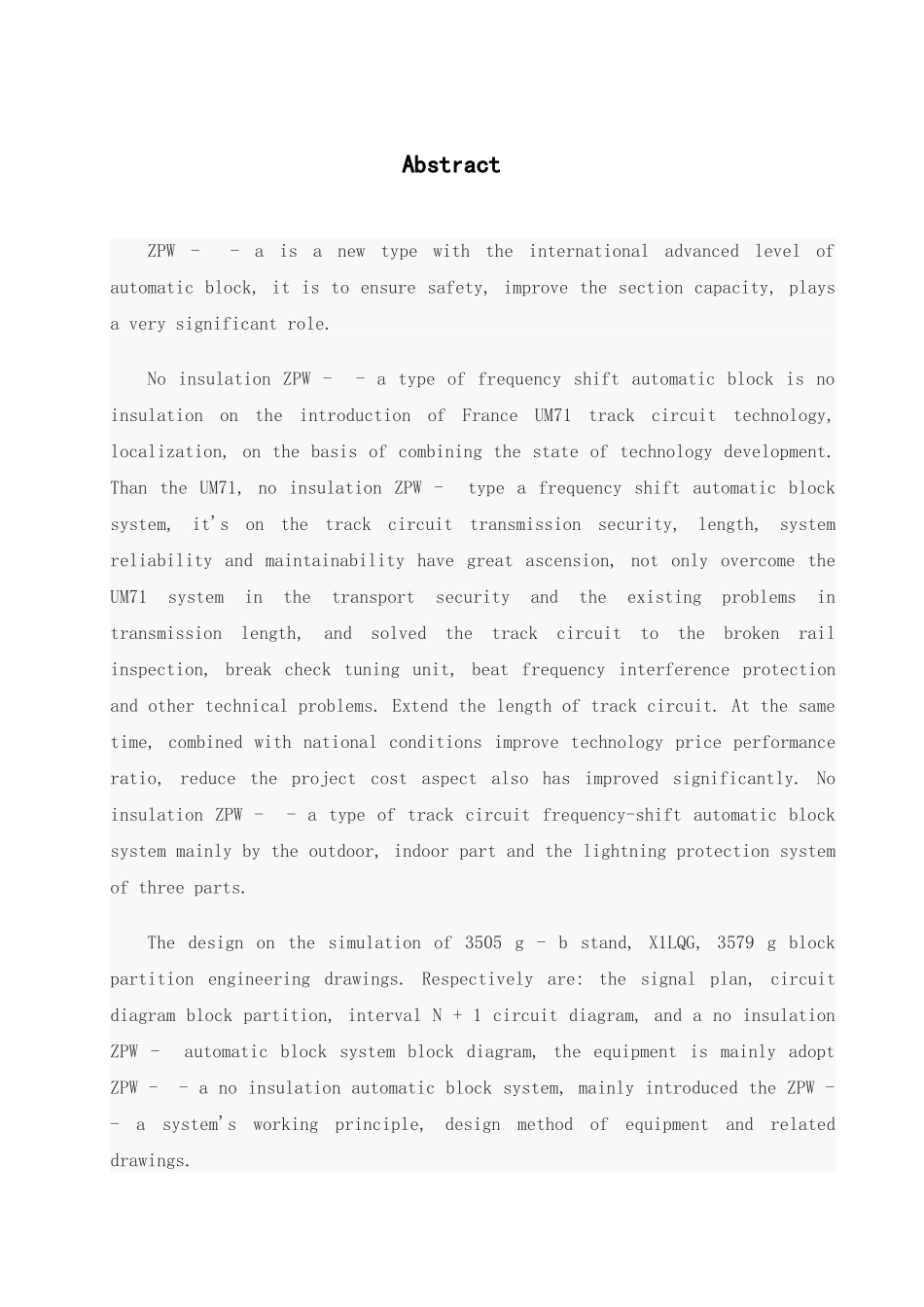

郑州大学毕业设计(论文)题目: ZPWA 设备应用及维护 指导教师: ×× 职称: 讲师 学生姓名: ×× 学号: 专 业: 电子工程 院(系): 物理工程学院 完毕时间: .12.1 12 月 1 日摘要ZPW-A 是一种具有国际先进水平的新型自动闭塞,它对于保证行车安全,提高区段通过能力,起着非常明显的作用。ZPW-A 型无绝缘移频自动闭塞是在引进法国 UM71 无绝缘轨道电路技术、国产化的基础上,结合国情进行的技术再开发。较之 UM71、ZPW-A 型无绝缘移频自动闭塞系统,它在轨道电路传播安全性、传播长度、系统可靠性、可维修性方面均有了很大的提高,不仅克服了 UM71 系统在传播安全性和传播长度上存在的问题,并且处理了轨道电路全程断轨检查,调谐单元断线检查,拍频干扰防护等技术难题。延长了轨道电路长度。同步,结合国情提高技术性能价格比、减少工程造价方面也有了明显的提高【1】。ZPW-A 型无绝缘移频自动闭塞轨道电路系统重要是由室外部分、室内部分和系统防雷三部分构成。本次设计完毕对模拟站—乙站 3505G 、X1LQG、3579G 闭塞分区工程设计图纸。分别有:区间信号平面图、闭塞分区电路图、区间 N+1 电路图、以及 ZPW-A 无绝缘自动闭塞系统框图,设备重要采用 ZPW-A 无绝缘自动闭塞系统,重要简介了 ZPW-A 系统的工作原理、设备构成及有关图纸的设计措施。关键词:ZPW-A;自动闭塞;移频; AbstractZPW - - a is a new type with the international advanced level of automatic block, it is to ensure safety, improve the section capacity, plays a very significant role.No insulation ZPW - - a type of frequency shift automatic block is no insulation on the introduction of France UM71 track circuit technology, localization, on the basis of combining the state of technology development. Than the UM71, no insulation ZPW - type a frequency shift automatic block system, it's on the track circuit transmission security, length, system reliability and maintainability have great ascension, not only overcome the UM71 system in the transport security and the existing problems in transmission length, and solved the track circuit to...
