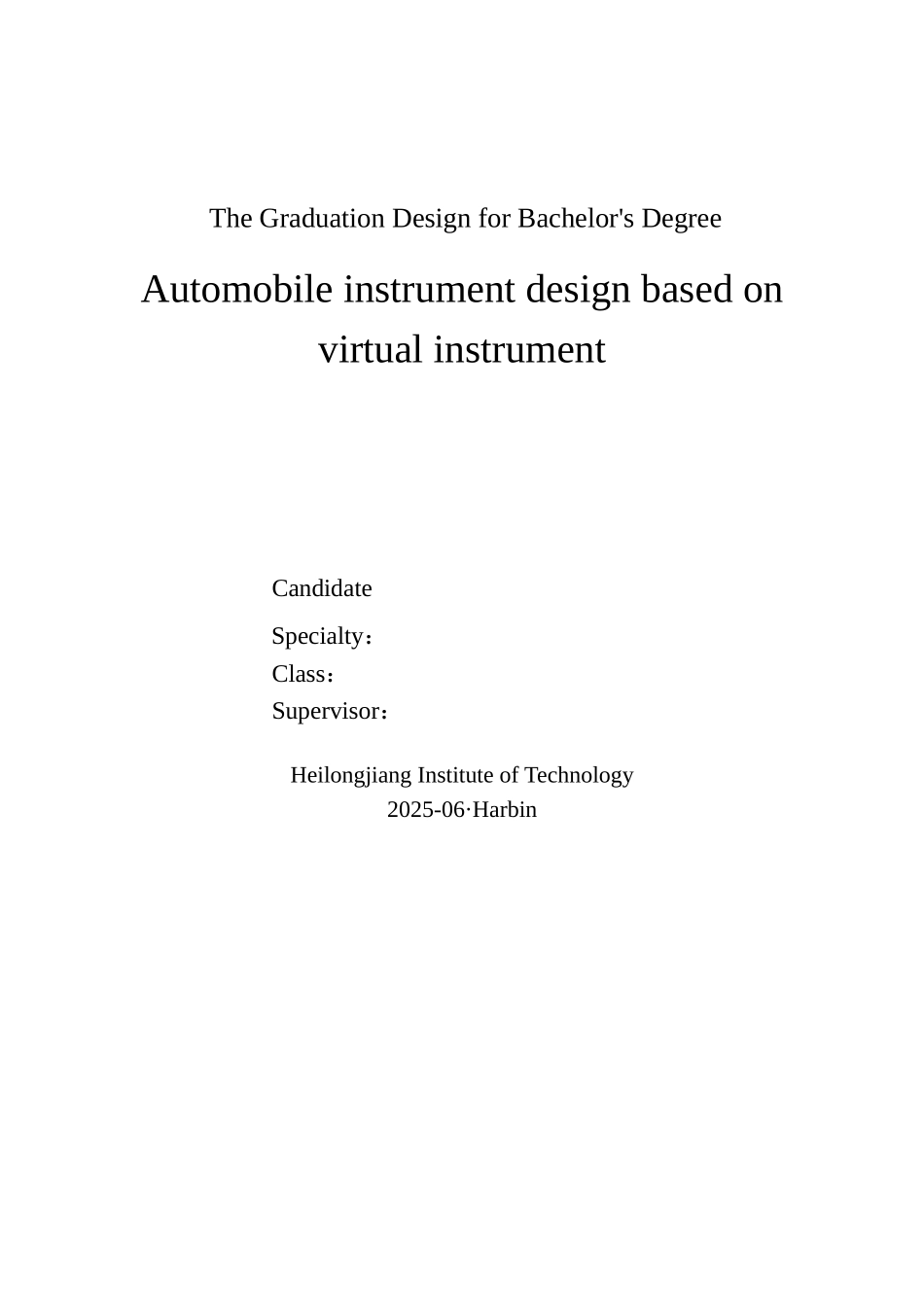

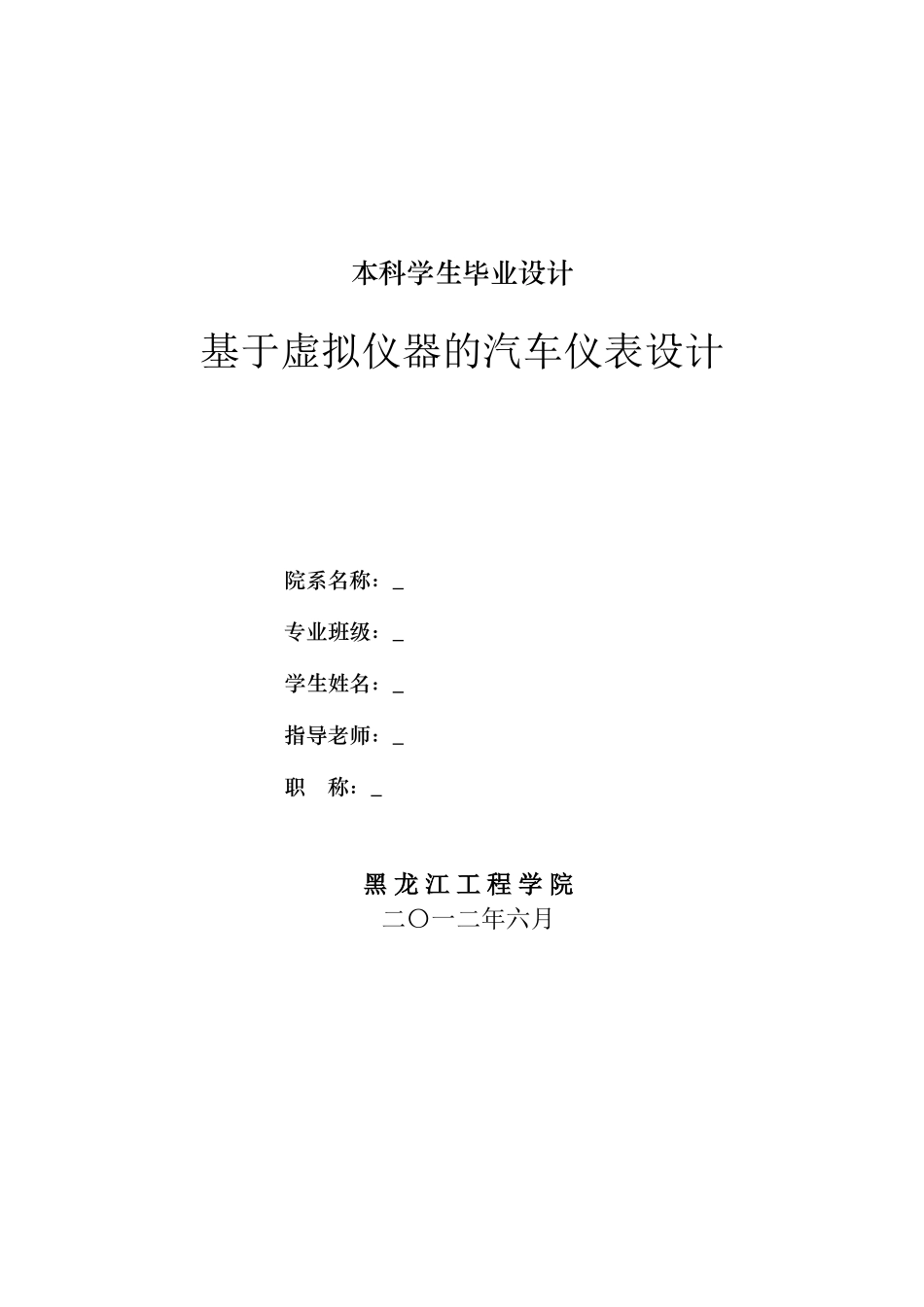

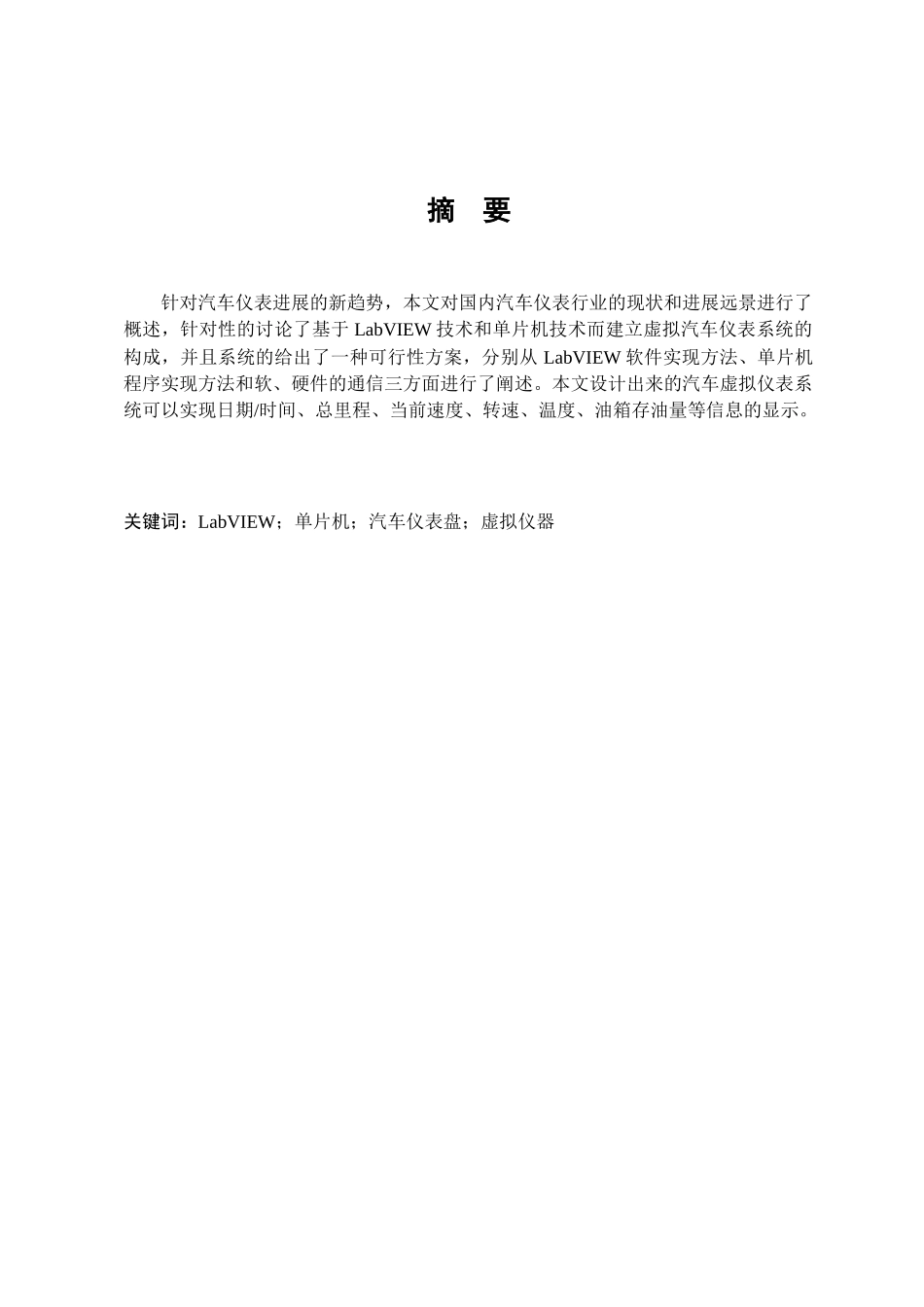

本科学生毕业设计基于虚拟仪器的汽车仪表设计院系名称： 专业班级： 学生姓名： 指导老师： 职 称： 黑 龙 江 工 程 学 院 二〇一二年六月 The Graduation Design for Bachelor's DegreeAutomobile instrument design based on virtual instrumentCandidate Specialty：Class： Supervisor：Heilongjiang Institute of Technology2025-06·Harbin摘 要针对汽车仪表进展的新趋势，本文对国内汽车仪表行业的现状和进展远景进行了概述，针对性的讨论了基于 LabVIEW 技术和单片机技术而建立虚拟汽车仪表系统的构成，并且系统的给出了一种可行性方案，分别从 LabVIEW 软件实现方法、单片机程序实现方法和软、硬件的通信三方面进行了阐述。本文设计出来的汽车虚拟仪表系统可以实现日期/时间、总里程、当前速度、转速、温度、油箱存油量等信息的显示。关键词：LabVIEW；单片机；汽车仪表盘；虚拟仪器AbstractIn view of the new development tendency of automobile instrument, this article summarizes the situation and vista of auto dashboard industry in our country. Have a study on the constitution of virtual automobile instrument information system based on PC machine and the LabVIEW technology and propose a feasibility plan. Respectively elaborate the method of the realization of LabVIEW design, single chip program and the communicate software and hardware. Automobile instrument designed in this article can demonstrate the current time，total miles，speed，oil consumption and temperature and so on．Key words: LabVIEW ; Single chip ; Car dashboard ; virtual instrument目 录摘 要.................................................................................................................IAbstract................................................................................................................................II第 1 章 引 言.....................................................................................................................11.1 本课题的目的和意义..................................
