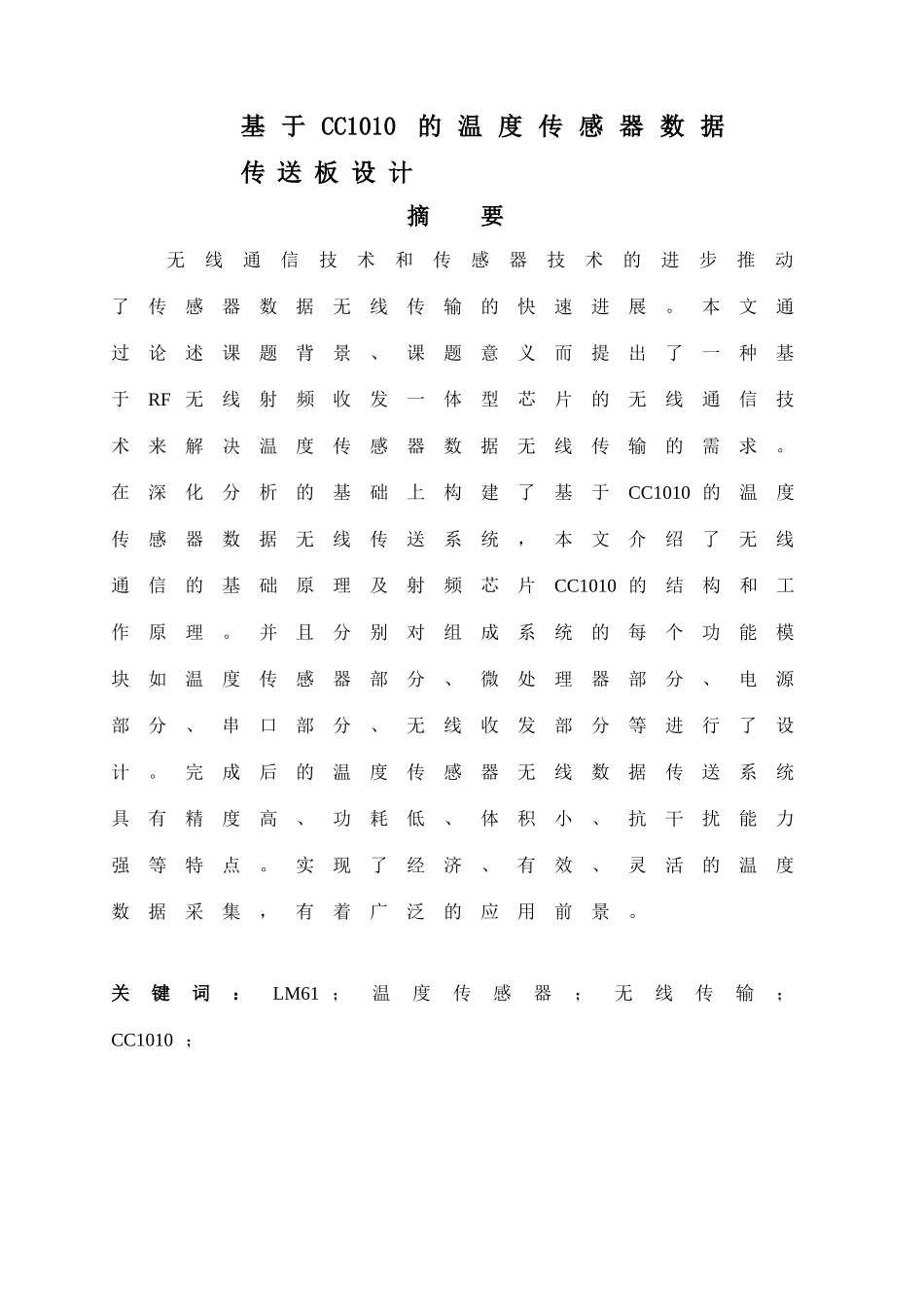

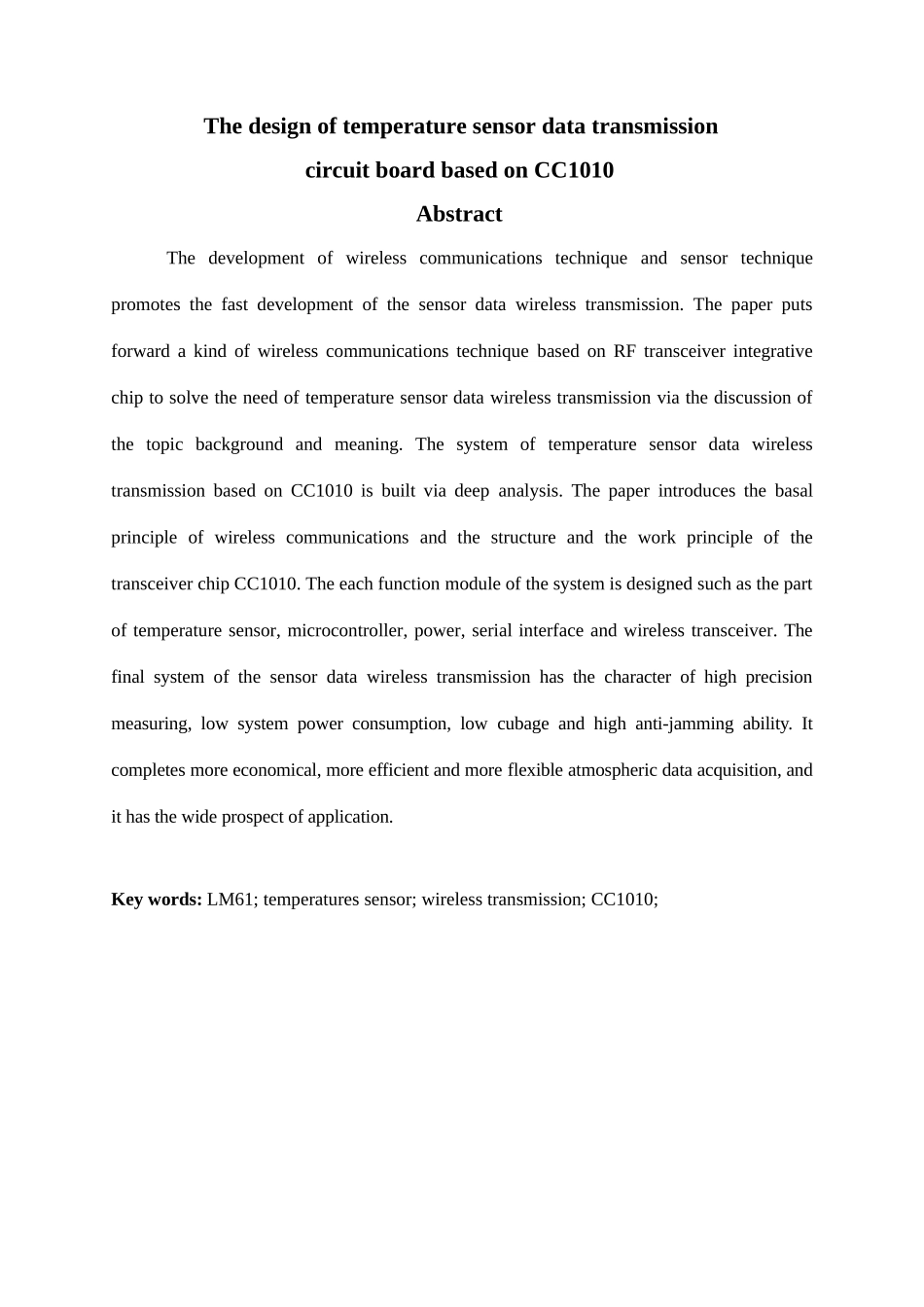

题 目 ： 基 于 CC1010 的 温度 传 感 器数 据 传 送 板 设 计基 于 CC1010的 温 度 传 感 器 数 据传 送 板 设 计摘 要无线通信技术和传感器技术的进步推动了传感器数据无线传输的快速进展。本文通过论述课题背景、课题意义而提出了一种基于RF 无线射频收发一体型芯片的无线通信技术来解决温度传感器数据无线传输的需求。在深化分析的基础上构建了基于CC1010 的温度传感器数据无线传送系统，本文介绍了无线通信的基础原理及射频芯片CC1010 的结构和工作原理。并且分别对组成系统的每个功能模块如温度传感器部分、微处理器部分、电源部分、串口部分、无线收发部分等进行了设计。完成后的温度传感器无线数据传送系统具有精度高、功耗低、体积小、抗干扰能力强等特点。实现了经济、有效、灵活的温度数据采集，有着广泛的应用前景。关键词：LM61 ；温度传感器；无线传输；CC1010 ；The design of temperature sensor data transmissioncircuit board based on CC1010AbstractThe development of wireless communications technique and sensor technique promotes the fast development of the sensor data wireless transmission. The paper puts forward a kind of wireless communications technique based on RF transceiver integrative chip to solve the need of temperature sensor data wireless transmission via the discussion of the topic background and meaning. The system of temperature sensor data wireless transmission based on CC1010 is built via deep analysis. The paper introduces the basal principle of wireless communications and the structure and the work principle of the transceiver chip CC1010. The each function module of the system is designed such as the part of temperature sensor, microcontroller, power, serial interface and wireless transceiver. The final system of the sensor data wireless transmission has the character of high precision measuring, low system power consumption, low cubage and high anti-jamming ability. It completes more economical, more effic...
