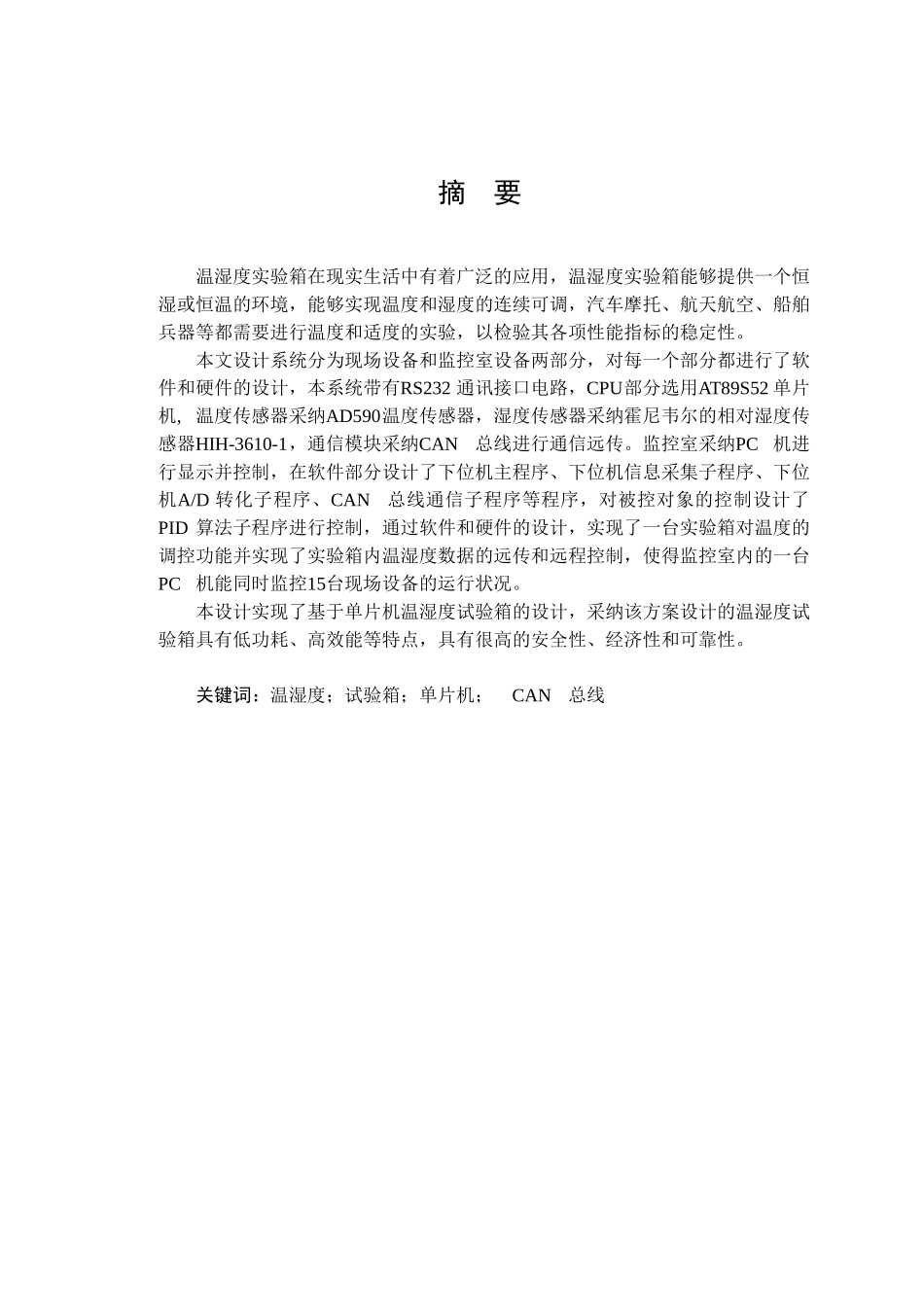

摘 要温湿度实验箱在现实生活中有着广泛的应用，温湿度实验箱能够提供一个恒湿或恒温的环境，能够实现温度和湿度的连续可调，汽车摩托、航天航空、船舶兵器等都需要进行温度和适度的实验，以检验其各项性能指标的稳定性。本文设计系统分为现场设备和监控室设备两部分，对每一个部分都进行了软件和硬件的设计，本系统带有RS232 通讯接口电路，CPU部分选用AT89S52 单片机, 温度传感器采纳AD590温度传感器，湿度传感器采纳霍尼韦尔的相对湿度传感器HIH-3610-1，通信模块采纳CAN总线进行通信远传。监控室采纳PC 机进行显示并控制，在软件部分设计了下位机主程序、下位机信息采集子程序、下位机A/D 转化子程序、CAN总线通信子程序等程序，对被控对象的控制设计了PID 算法子程序进行控制，通过软件和硬件的设计，实现了一台实验箱对温度的调控功能并实现了实验箱内温湿度数据的远传和远程控制，使得监控室内的一台PC 机能同时监控15台现场设备的运行状况。本设计实现了基于单片机温湿度试验箱的设计，采纳该方案设计的温湿度试验箱具有低功耗、高效能等特点，具有很高的安全性、经济性和可靠性。关键词：温湿度；试验箱；单片机； CAN总线AbstractTemperature and humidity test box is widely used in real life, the temperature and humidity test box can provide a constant humidity or temperature environment, continuously adjustable to achieve temperature and humidity, automobile motor, aerospace, weapons, ships need experimental temperature and moderate, to test their stabilities of various performance indicators.In this paper, the design system is divided into equipment and control room equipment two parts, to every part of the design of software and hardware, the system with RS232 communication interface circuit, CPU part uses AT89S52 microcontroller, temperature sensor using AD590 temperature sensor, humidity sensor using the relative humidity sensor HIH-3610-1 of Honeywell, a communication module based on CAN bus communication transmission. The control room by PC for display and control, in the part of software design of t...
