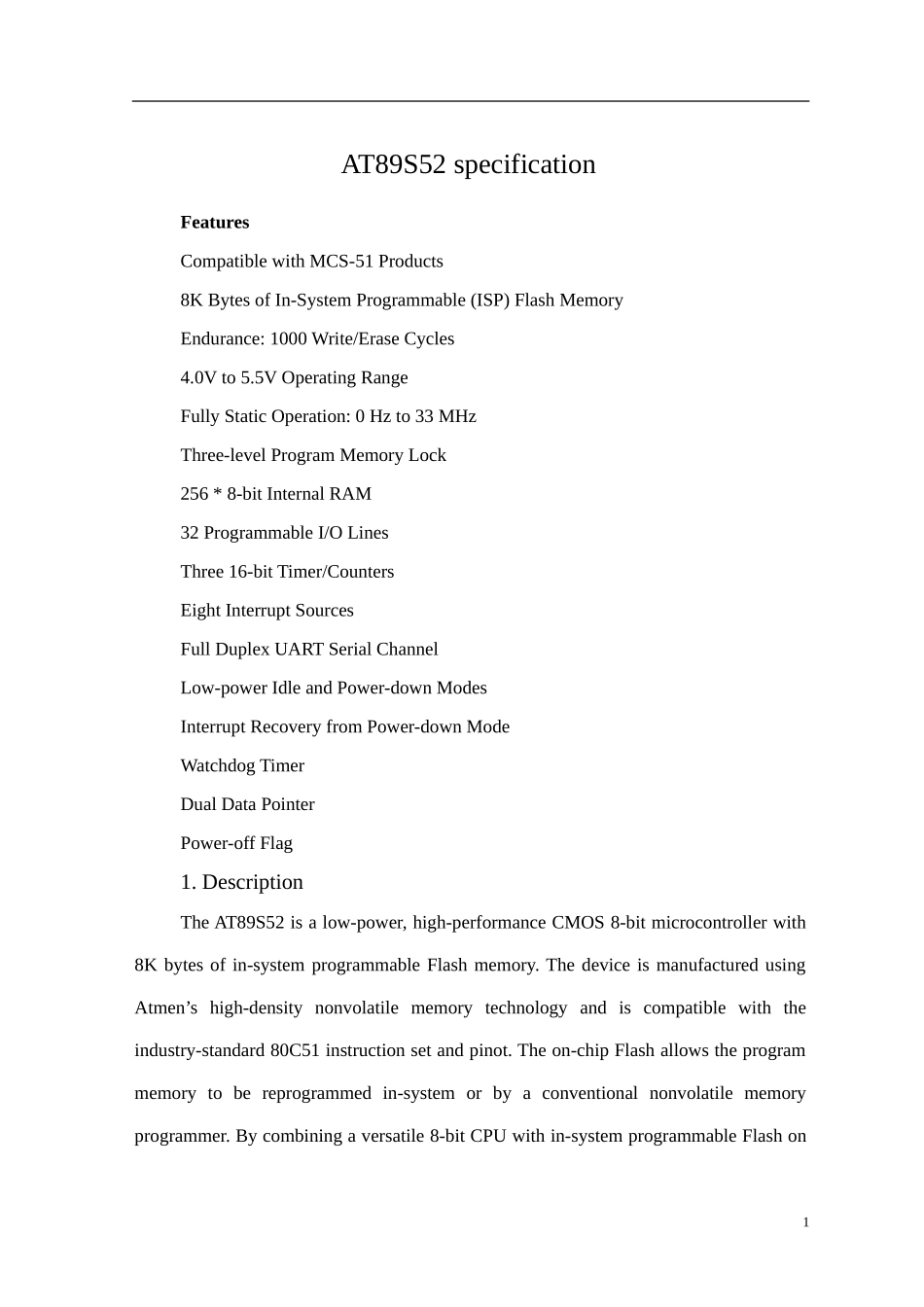

AT89S52 specificationFeaturesCompatible with MCS-51 Products8K Bytes of In-System Programmable (ISP) Flash MemoryEndurance: 1000 Write/Erase Cycles4.0V to 5.5V Operating RangeFully Static Operation: 0 Hz to 33 MHzThree-level Program Memory Lock256 * 8-bit Internal RAM32 Programmable I/O LinesThree 16-bit Timer/Counters Eight Interrupt Sources Full Duplex UART Serial ChannelLow-power Idle and Power-down ModesInterrupt Recovery from Power-down ModeWatchdog Timer Dual Data PointerPower-off Flag 1. DescriptionThe AT89S52 is a low-power, high-performance CMOS 8-bit microcontroller with 8K bytes of in-system programmable Flash memory. The device is manufactured using Atmen’s high-density nonvolatile memory technology and is compatible with the industry-standard 80C51 instruction set and pinot. The on-chip Flash allows the program memory to be reprogrammed in-system or by a conventional nonvolatile memory programmer. By combining a versatile 8-bit CPU with in-system programmable Flash on 1a monolithic chip, the Atmen AT89S52 is a powerful microcontroller which provides a highly-flexible and cost-effective solution to many embedded control applications.The AT89S52 provides the following standard features: 8K bytes of Flash, 256 bytes of RAM, 32 I/O lines, Watchdog timer, two data pointers, three 16-bit timer/counters, a six-vector two-level interrupt architecture, a full duplex serial port, on-chip oscillator, and clock circuitry. In addition, the AT89S52 is designed with static logic for operation down to zero frequency and supports two software selectable power saving modes. The Idle Mode stops the CPU while allowing the RAM, timer/counters, serial port, and interrupt system to continue functioning. The Power-down mode saves the RAM co...
