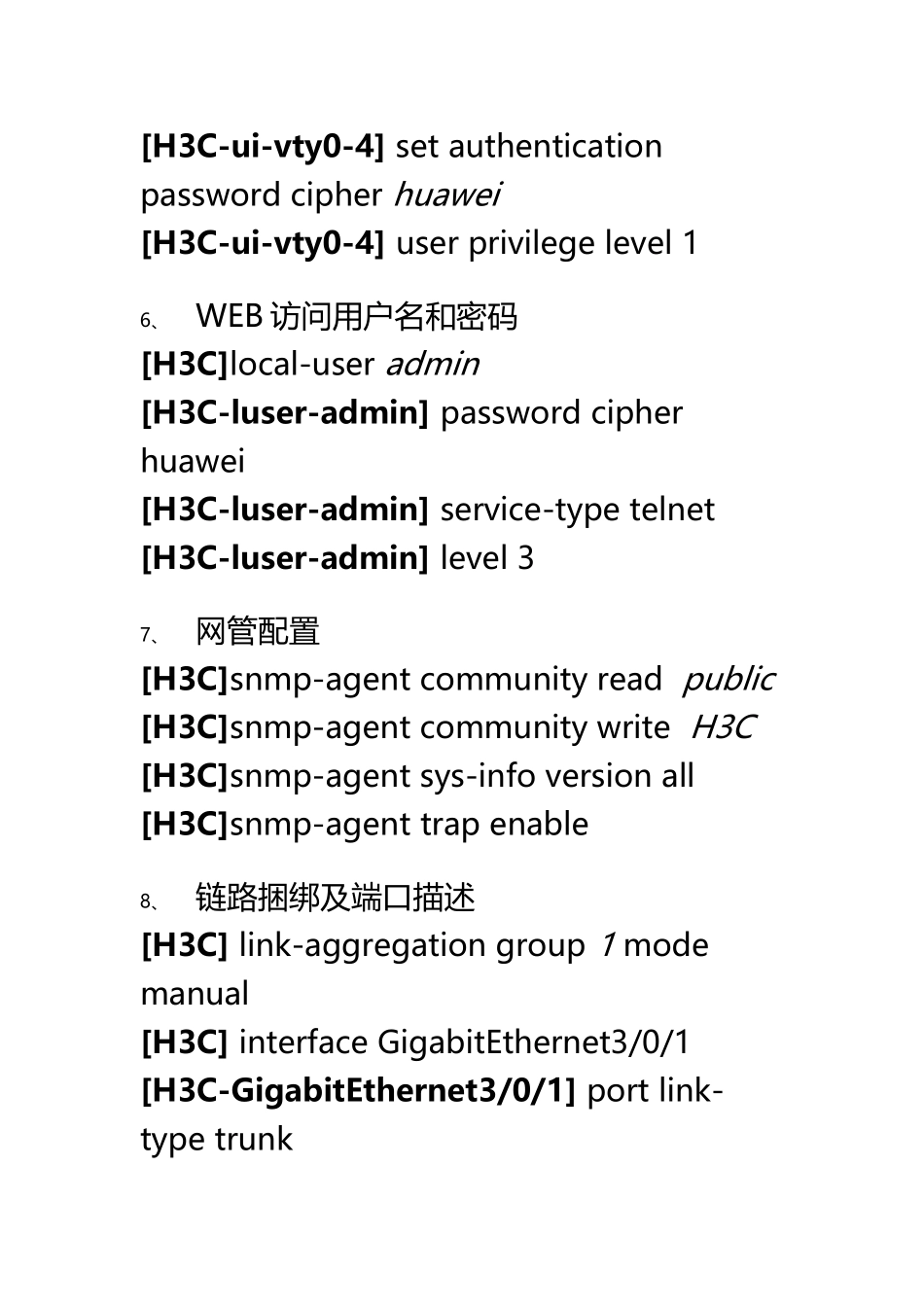

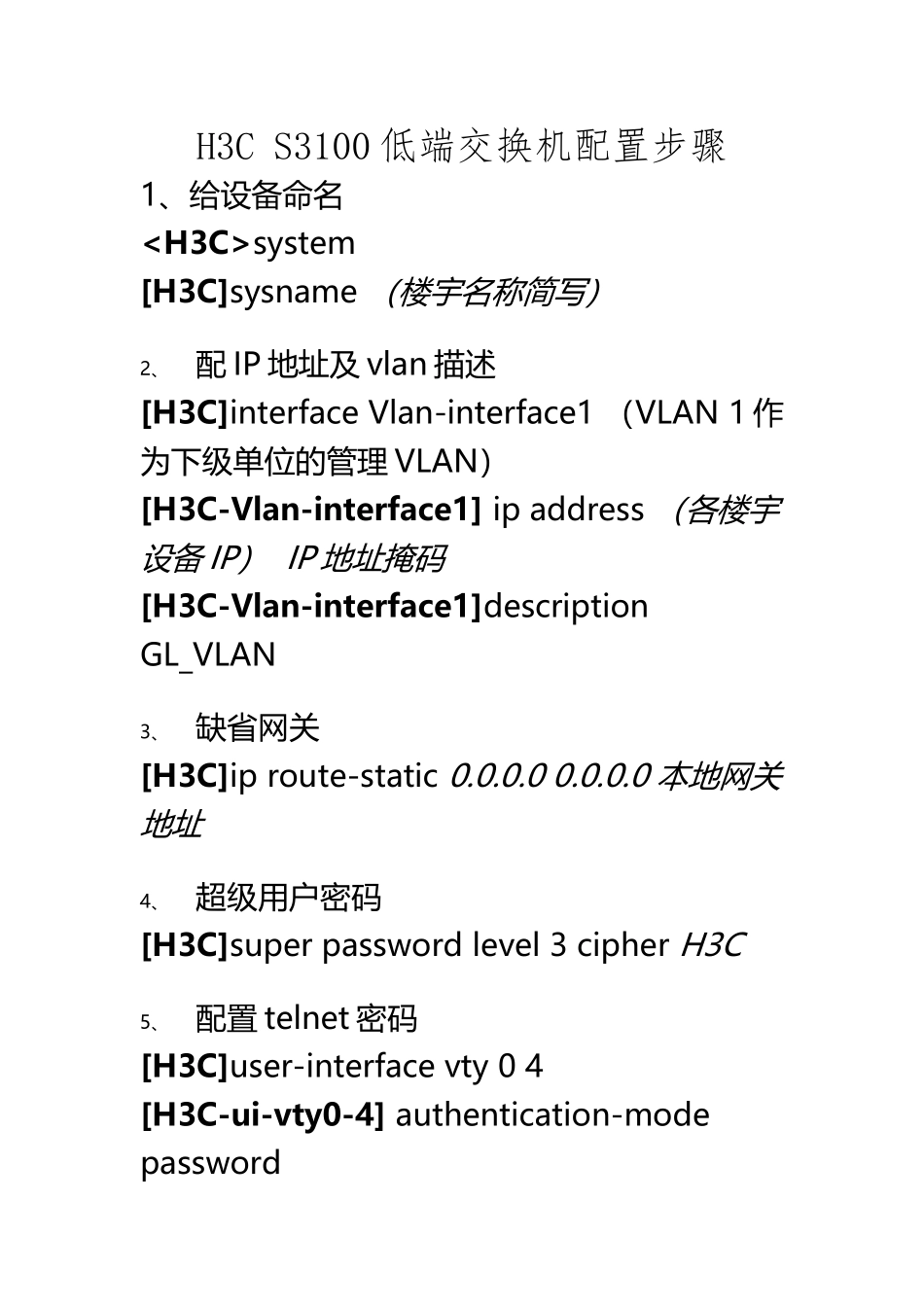

H3C S3100 交换机配置步骤(4 页)Good is good, but better carries it.精益求精，善益求善。H3C S3100 低端交换机配置步骤1、给设备命名system[H3C]sysname （楼宇名称简写）2、配 IP 地址及 vlan 描述[H3C]interface Vlan-interface1 （VLAN 1 作为下级单位的管理 VLAN）[H3C-Vlan-interface1] ip address （各楼宇设备 IP） IP 地址掩码[H3C-Vlan-interface1]description GL_VLAN3、缺省网关[H3C]ip route-static 0.0.0.0 0.0.0.0 本地网关地址4、超级用户密码[H3C]super password level 3 cipher H3C5、配置 telnet 密码[H3C]user-interface vty 0 4[H3C-ui-vty0-4] authentication-mode password[H3C-ui-vty0-4] set authentication password cipher huawei[H3C-ui-vty0-4] user privilege level 16、WEB 访问用户名和密码[H3C]local-user admin[H3C-luser-admin] password cipher huawei [H3C-luser-admin] service-type telnet [H3C-luser-admin] level 37、网管配置[H3C]snmp-agent community read public [H3C]snmp-agent community write H3C[H3C]snmp-agent sys-info version all[H3C]snmp-agent trap enable8、链路捆绑及端口描述[H3C] link-aggregation group 1 mode manual[H3C] interface GigabitEthernet3/0/1[H3C-GigabitEthernet3/0/1] port link-type trunk[H3C-GigabitEthernet3/0/1] port trunk permit vlan 1000[H3C-GigabitEthernet3/0/1] port link-aggregation group 1[H3C-GigabitEthernet3/0/1] description TO_对端设备名_对端设备型号_对端接口#[H3C] interface GigabitEthernet3/0/2[H3C-GigabitEthernet3/0/2] port link-type trunk [H3C-GigabitEthernet3/0/2] port trunk permit vlan 1000 [H3C-GigabitEthernet3/0/2] port link-aggregation group 19、Trunk 链路配置[H3C] interface GigabitEthernet1/1/3 [H3C-GigabitEthernet1/1/3] port link-type trunk [H3C-GigabitEthernet1/1/3] port trunk permit vlan all10、S3100 交换机堆叠[H3C] stacking ip-pool IP 地址前缀 堆叠交换机个数 IP 地址掩码 [H3C] stacking enable11、OSPF 简易配置过程[H3C] ospf [H3C -ospf-1] area 区域编码[H3C -ospf-1-area-0.0.0.1] network IP 地址 IP 地址反掩码12、 OSPF 和 RIP 路由的双向引入[H3C] ospf[H3C -ospf-1] import-route rip[H3C] rip[H3C -ospf-1] import-route ospf]￥】|：,``，、~}；:;{】。~]^>.@";、|.$
