桥架规格及重量技术参数VIP专享

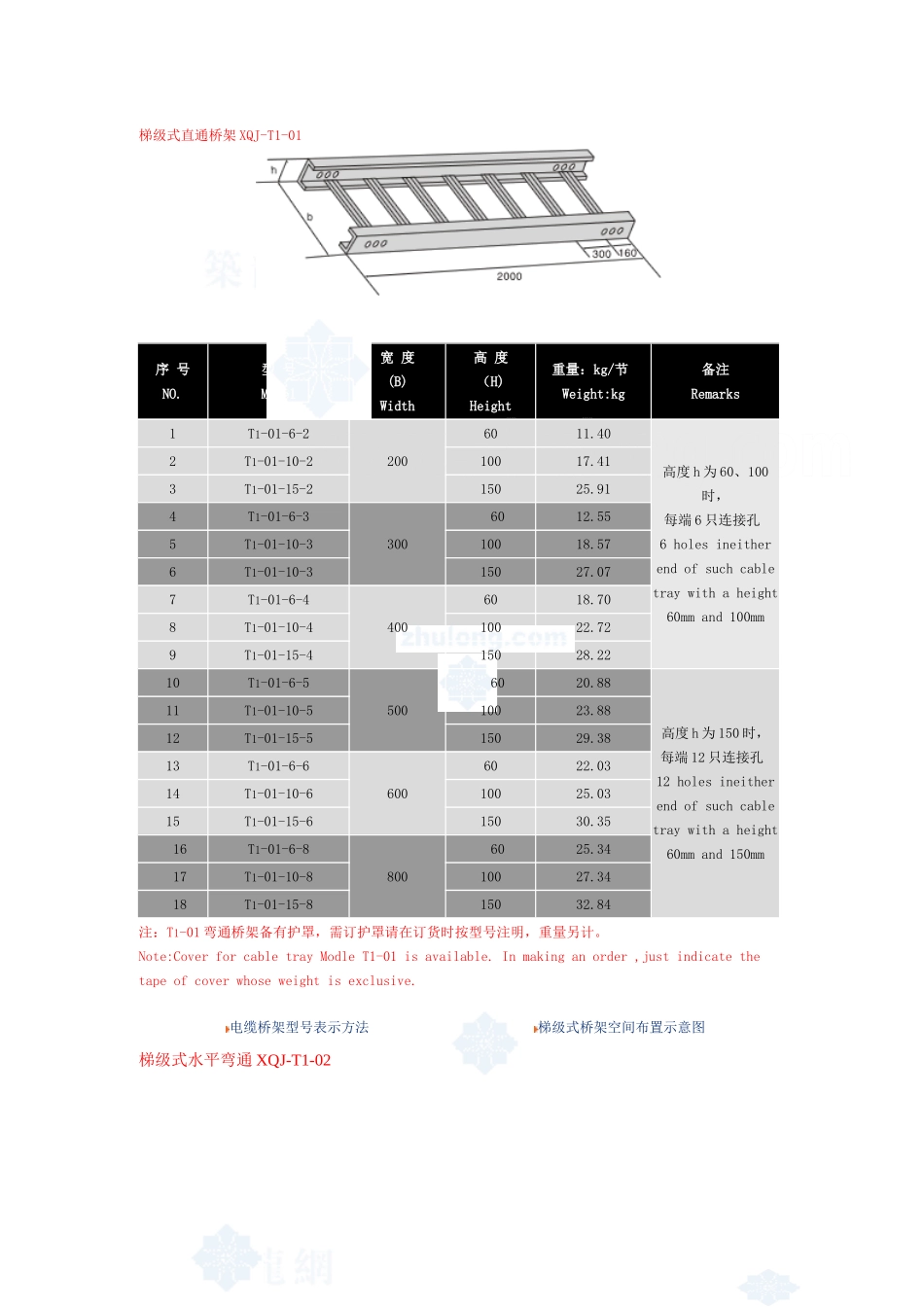

梯级式直通桥架 XQJ-T1-01序 号NO. 型 号Model宽 度(B)Width高 度（H)Height重量：kg/节 Weight:kg备注Remarks1T1-01-6-22006011.40高度 h 为 60、100时，每端 6 只连接孔 6 holes ineither end of such cable tray with a height 60mm and 100mm 2T1-01-10-210017.413T1-01-15-215025.914T1-01-6-3300 6012.555T1-01-10-310018.576T1-01-10-315027.077T1-01-6-44006018.708T1-01-10-410022.729T1-01-15-415028.2210T1-01-6-5500 6020.88高度 h 为 150 时，每端 12 只连接孔 12 holes ineither end of such cable tray with a height 60mm and 150mm 11T1-01-10-510023.8812T1-01-15-515029.3813T1-01-6-66006022.0314T1-01-10-610025.0315T1-01-15-615030.35 16T1-01-6-8800 6025.34 17T1-01-10-810027.34 18T1-01-15-815032.84注：T1-01 弯通桥架备有护罩，需订护罩请在订货时按型号注明，重量另计。Note:Cover for cable tray Modle T1-01 is available. In making an order ,just indicate the tape of cover whose weight is exclusive.电缆桥架型号表示方法梯级式桥架空间布置示意图 梯级式水平弯通 XQJ-T1-02序 号NO. 型 号Model宽 度(B)Width高 度（H)HeightL重量：kg/节 Weight:kg备注Remarks1T1-02-6-2200604705.89高度 h 为 60、100时，每端 6 只连接孔 6 holes ineither end of such cable tray with a height 60mm and 100mm 2T1-02-10-21006.963T1-02-15-215012.504T1-02-6-3300 605707.465T1-02-10-31008.666T1-02-10-315011.957T1-02-6-4400606707.798T1-02-10-41009.859T1-02-15-415016.7210T1-02-6-5500 6077010.53高度 h 为 150 时，每端 12 只连接孔 12 holes ineither end of such cable tray with a height 60mm and 150mm 11T1-02-10-510012.6112T1-02-15-515019.4013T1-02-6-66006087012.2014T1-02-10-610014.6015T1-02-15-615021.40 16T1-02-6-8800 60107013.59 17T1-02-10-810016.25 18T1-02-15-815025.4注：T1-02 弯通桥架备有护罩，需订护罩请在订货时按型号注明，重量另计。Note:Cover for cable tray Modle T1-02 is available. In making an order ,just indicate the tape of cover whose weight is exclusive.电缆桥架型号表示方法梯级式桥架空间布...
