中兴C320&C300-V2版本OLT开局配置手册

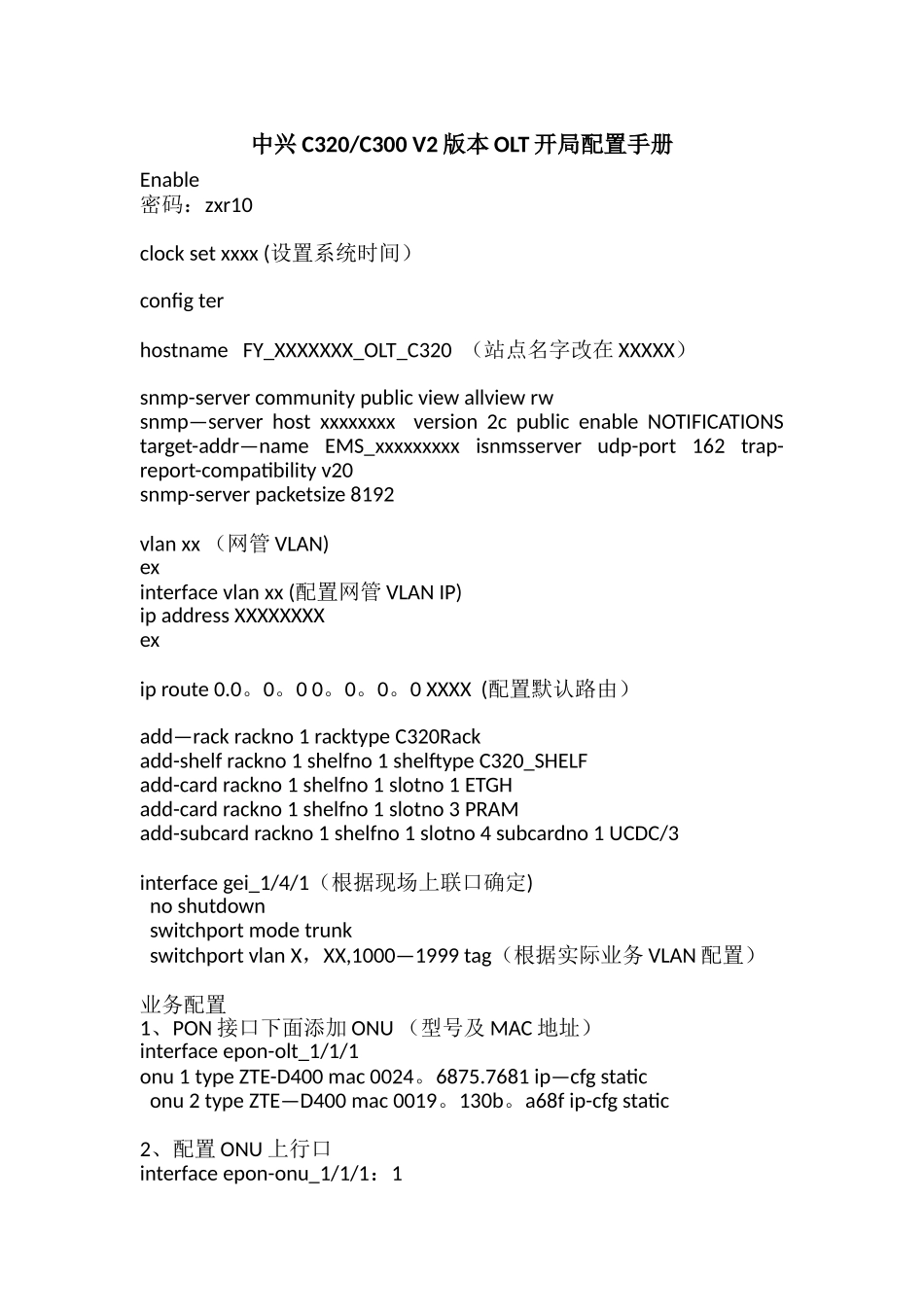

中兴 C320/C300 V2 版本 OLT 开局配置手册Enable密码：zxr10clock set xxxx (设置系统时间）config terhostname FY_XXXXXXX_OLT_C320 （站点名字改在 XXXXX）snmp-server community public view allview rwsnmp—server host xxxxxxxx version 2c public enable NOTIFICATIONS target-addr—name EMS_xxxxxxxxx isnmsserver udp-port 162 trap-report-compatibility v20snmp-server packetsize 8192vlan xx （网管 VLAN)exinterface vlan xx (配置网管 VLAN IP)ip address XXXXXXXXexip route 0.0。0。0 0。0。0。0 XXXX (配置默认路由）add—rack rackno 1 racktype C320Rackadd-shelf rackno 1 shelfno 1 shelftype C320_SHELFadd-card rackno 1 shelfno 1 slotno 1 ETGHadd-card rackno 1 shelfno 1 slotno 3 PRAMadd-subcard rackno 1 shelfno 1 slotno 4 subcardno 1 UCDC/3interface gei_1/4/1（根据现场上联口确定) no shutdown switchport mode trunk switchport vlan X，XX,1000—1999 tag（根据实际业务 VLAN 配置）业务配置1、PON 接口下面添加 ONU （型号及 MAC 地址）interface epon-olt_1/1/1onu 1 type ZTE-D400 mac 0024。6875.7681 ip—cfg static onu 2 type ZTE—D400 mac 0019。130b。a68f ip-cfg static2、配置 ONU 上行口interface epon-onu_1/1/1：1 admin enable switchport mode trunk vport 1 service-port 1 vport 1 user-vlan 1000 vlan 1000 service-port 2 vport 1 user-vlan 1001 vlan 1001 service—port 3 vport 1 user—vlan 1002 vlan 1002 service—port 4 vport 1 user—vlan 1003 vlan 1003 3、配置 ONU 业务端口pon-onu—mng epon—onu_1/1/1：1auto-configvlan port eth_0/1 mode tag vlan 1000 priority 0vlan port eth_0/2 mode tag vlan 1001 priority 0vlan port eth_0/3 mode tag vlan 1002 priority 0vlan port eth_0/4 mode tag vlan 1003 priority 0！ENDWrite (保存配置)网管网元添加：添加网管时选择 C320V2.0/C300V2.0 网元
