常用电缆性能一缆表VIP免费

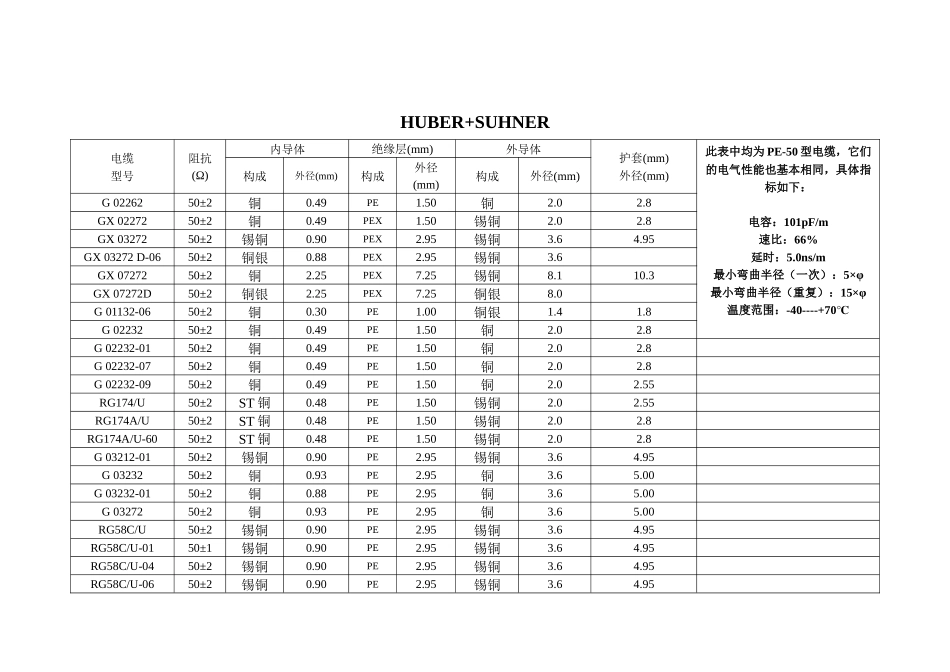

HUBER+SUHNER电缆型号阻抗(Ω)内导体绝缘层(mm)外导体护套(mm)外径(mm)此表中均为PE-50型电缆，它们的电气性能也基本相同，具体指标如下：电容：101pF/m速比：66%延时：5.0ns/m最小弯曲半径（一次）：5×φ最小弯曲半径（重复）：15×φ温度范围：-40----+70℃构成外径(mm)构成外径(mm)构成外径(mm)G0226250±2铜0.49PE1.50铜2.02.8GX0227250±2铜0.49PEX1.50锡铜2.02.8GX0327250±2锡铜0.90PEX2.95锡铜3.64.95GX03272D-0650±2铜银0.88PEX2.95锡铜3.6GX0727250±2铜2.25PEX7.25锡铜8.110.3GX07272D50±2铜银2.25PEX7.25铜银8.0G01132-0650±2铜0.30PE1.00铜银1.41.8G0223250±2铜0.49PE1.50铜2.02.8G02232-0150±2铜0.49PE1.50铜2.02.8G02232-0750±2铜0.49PE1.50铜2.02.8G02232-0950±2铜0.49PE1.50铜2.02.55RG174/U50±2ST铜0.48PE1.50锡铜2.02.55RG174A/U50±2ST铜0.48PE1.50锡铜2.02.8RG174A/U-6050±2ST铜0.48PE1.50锡铜2.02.8G03212-0150±2锡铜0.90PE2.95锡铜3.64.95G0323250±2铜0.93PE2.95铜3.65.00G03232-0150±2铜0.88PE2.95铜3.65.00G0327250±2铜0.93PE2.95铜3.65.00RG58C/U50±2锡铜0.90PE2.95锡铜3.64.95RG58C/U-0150±1锡铜0.90PE2.95锡铜3.64.95RG58C/U-0450±2锡铜0.90PE2.95锡铜3.64.95RG58C/U-0650±2锡铜0.90PE2.95锡铜3.64.95RG58C/U-0750±2锡铜0.90PE2.95锡铜3.64.95RG58C/U-6050±2锡铜0.90PE2.95锡铜3.64.95G0523250±2铜1.5PE4.8铜5.57.4RG213/U50±2铜2.25PE7.25铜8.110.30RG213/U-0150±1铜2.25PE7.25铜8.110.30RG213/U-0450±2铜2.25PE7.25铜8.110.30RG218/U50±2铜5.00PE17.3铜18.522.10G02232D50±2铜0.49PE1.5铜2.03.10G03232D-0150±2锡铜0.90PE2.95锡铜3.65.35RG223/U50±2铜银0.88PE2.95铜银3.65.40RG223/U-0150±1铜银0.88PE2.95铜银3.65.40RG223/U-0250±2铜银0.90PE2.90铜银3.65.30RG223/U-0450±1铜银0.88PE2.95铜银3.65.40RG223/U-6050±2铜银0.88PE2.95锡铜3.65.40RG212/U50±2铜银1.40PE4.70铜银5.48.45G07232D-0650±1铜银2.25PE7.25铜银8.010.80G07232D-0850±2铜银2.25PE7.25铜银8.010.80RG214/U50±2铜银2.25PE7.25铜银8.010.80RG214/U-0150±1铜银2.25PE7.25铜银8.010.80RG214/U-0450±1铜银2.25PE7.25铜银8.010.80RG214/U-6050±2铜银2.25PE7.25锡铜8.010.80RG217/U50±2铜2.68PE9.40铜10.313.8RG215/U50±2铜2.25PE7.25铜8.110.3HUBER+SUHNER电缆型号阻抗(Ω)内导体绝缘层(mm)外导体护套(mm)外径(mm)此表中均为SPE-50型电缆，它们的电气性能也基本相同，具体指标如下：电容：82pF/m速比：82%延时：4.1ns/m最小弯曲半径（一次）：5×φ最小弯曲半径（重复）：15×φ温度范围：-40----+70℃构成外径(mm)构成外径(mm)构成外径(mm)S0213250±2锡铜0.90SPE2.30锡铜2.904.50S0216250±2锡铜0.90SPE2.30锡铜2.904.50S03232-0150±2铜1.20SPE2.95铜3.205.00S0613250±2铜2.25SPE5.85铜6.558.15S0723250±2铜2.68SPE7.25铜8.1010.30S07232-0150±2铜2.85SPE7.25铜8.1010.30S02112D50±2锡铜0.90SPE2.30铜2.904.50S02132D50±2铜银0.88SPE2.30铜银2.904.80S04172D50±2铜银1.40SPE3.75铜银4.205.70S06132D-1050±2铜银2.25SPE5.85铜银6.558.95S03132B-0150±2锡铜1.00SPE2.70铝2.854.90S06132D50±2铜2.17SPE6.25铝6.410.3S06162D50±2铜2.17SPE6.25铝6.410.3S07212BD50±1铜银2.85SPE7.25铜银8.010.8S07262BD50±1铜银2.85SPE7.25铜银8.010.8SX07262BD50±1铜银2.85SPE7.25铜银8.010.8S12272-0450±2铜铝4.20SPE11.50铜11.6015.0SA0727250±2铜2.62SPE7.25——7.810.0SA1227250±2铜铝4.20SPE11.50——12.015.0SA1727250±2铜铝6.20SPE17.30——17.821.4S04272B50±2铜银1.40SPE3.75锡铜铝3.905.5HUBER+SUHNER电缆型号阻抗(Ω)内导体绝缘层(mm)外导体护套(mm)外径(mm)此表中均为PTFE-50型电缆，它们的电气性能也基本相同，具体指标如下：电容（PTFE）：94pF/m电容（PFA/FEP）：96pF/m速比（PTFE）：71%速比（PFA/FEP）：69%延时（PTFE）：4.7ns/m延时（PFA/FEP）：4.8ns/m最小弯曲半径（一次）：5×φ最小弯曲半径（重复）：15×φ温度...
