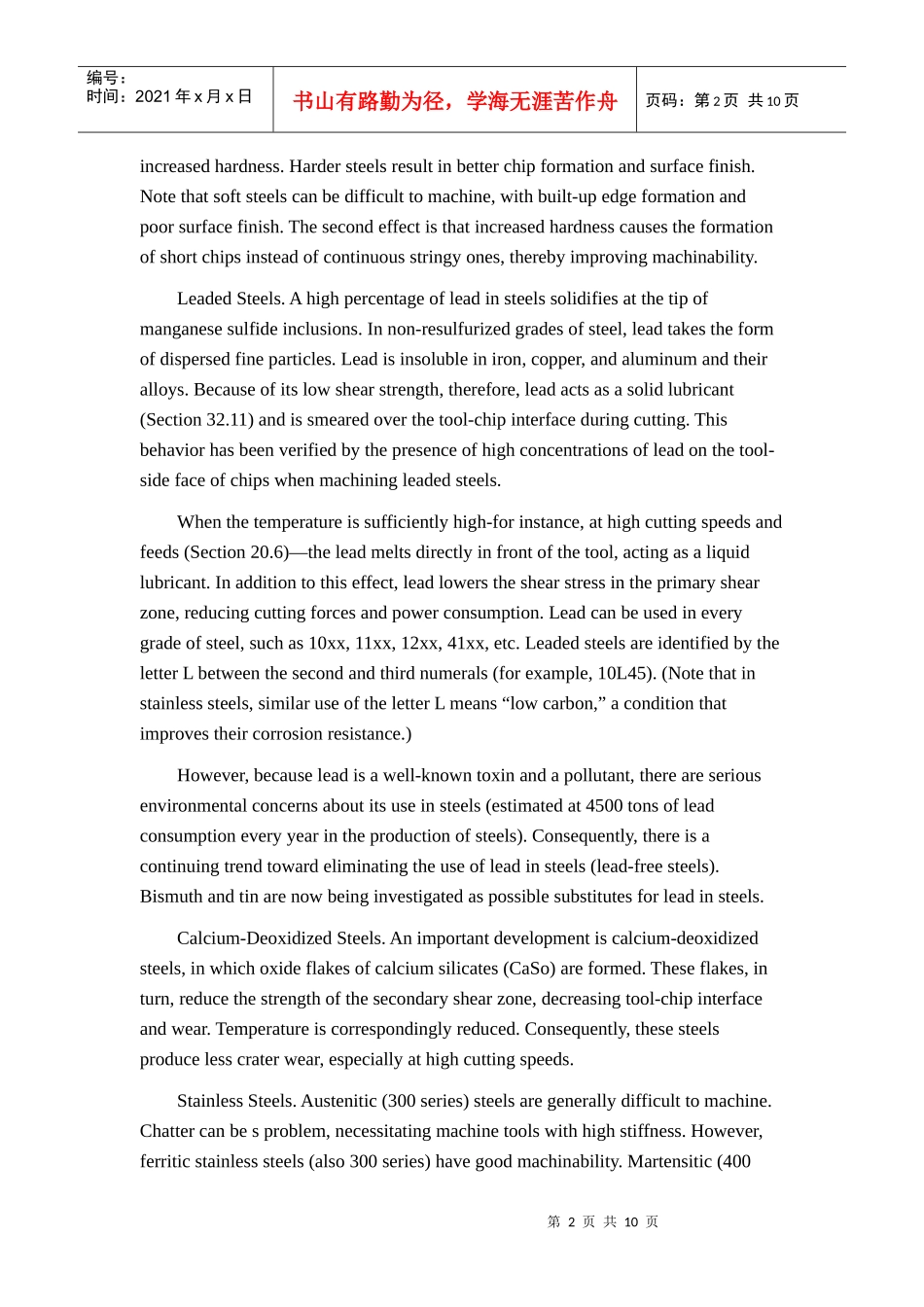

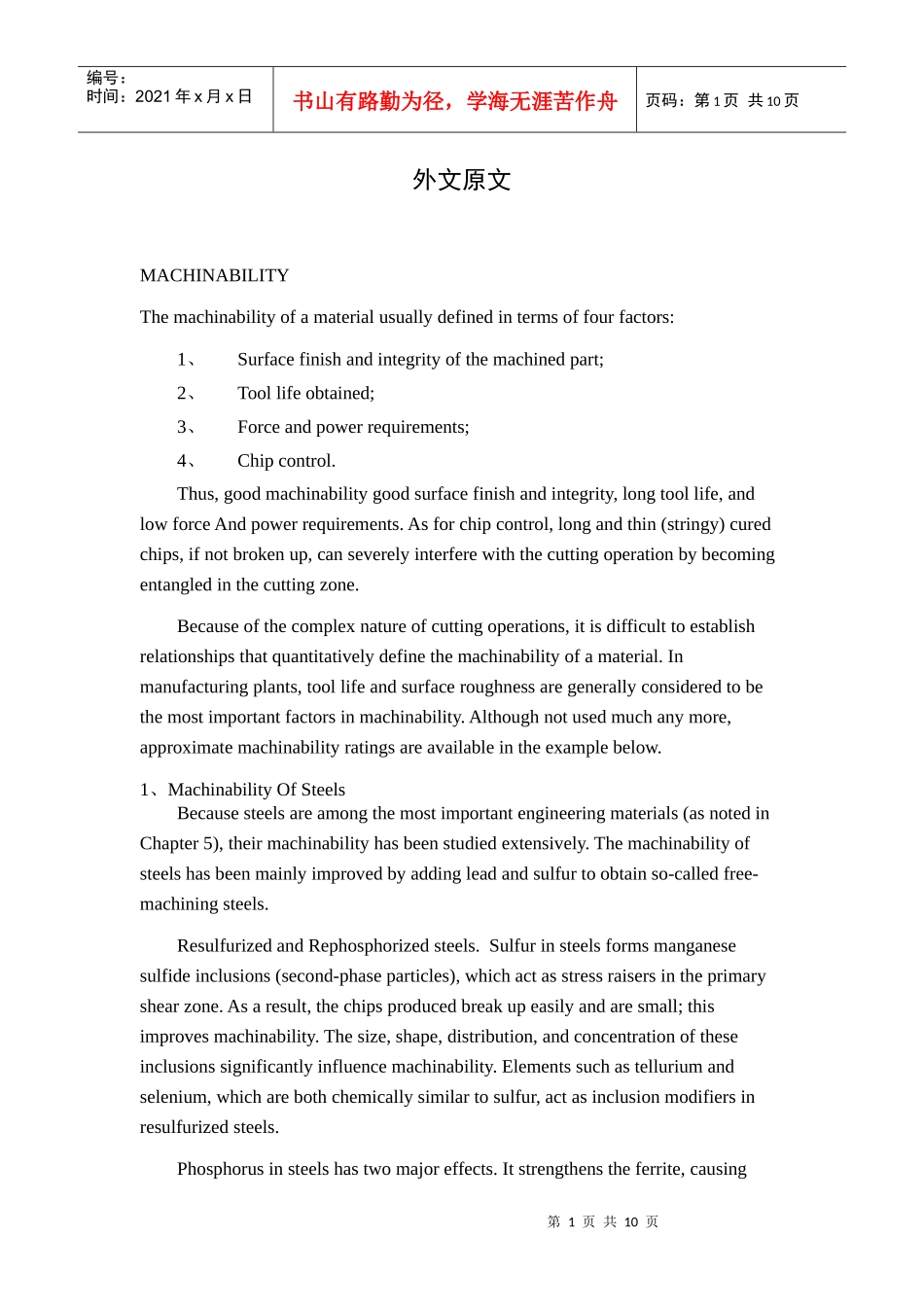

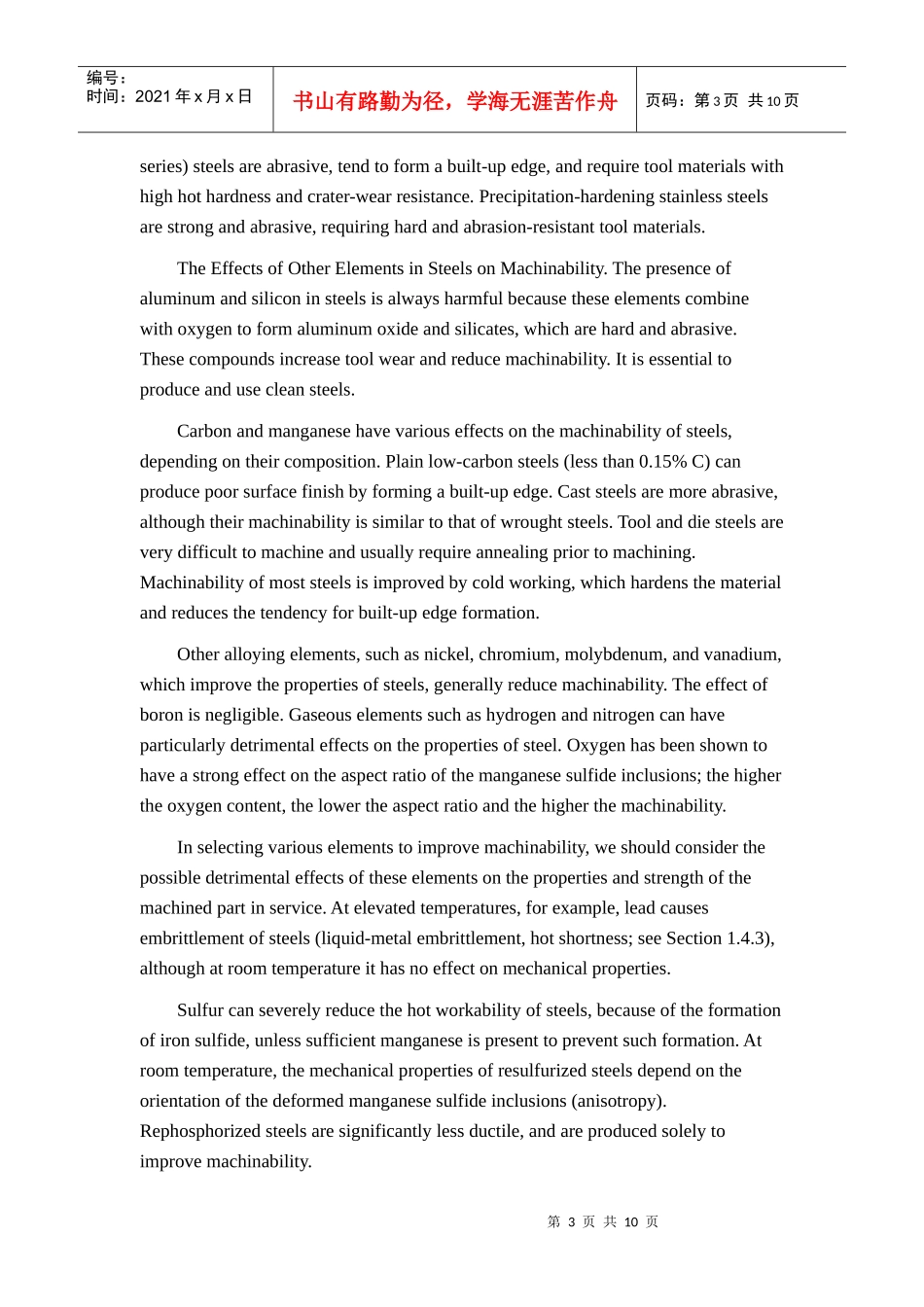

第1页共10页编号：时间：2021年x月x日书山有路勤为径，学海无涯苦作舟页码：第1页共10页外文原文MACHINABILITYThemachinabilityofamaterialusuallydefinedintermsoffourfactors:1、Surfacefinishandintegrityofthemachinedpart;2、Toollifeobtained;3、Forceandpowerrequirements;4、Chipcontrol.Thus,goodmachinabilitygoodsurfacefinishandintegrity,longtoollife,andlowforceAndpowerrequirements.Asforchipcontrol,longandthin(stringy)curedchips,ifnotbrokenup,canseverelyinterferewiththecuttingoperationbybecomingentangledinthecuttingzone.Becauseofthecomplexnatureofcuttingoperations,itisdifficulttoestablishrelationshipsthatquantitativelydefinethemachinabilityofamaterial.Inmanufacturingplants,toollifeandsurfaceroughnessaregenerallyconsideredtobethemostimportantfactorsinmachinability.Althoughnotusedmuchanymore,approximatemachinabilityratingsareavailableintheexamplebelow.1、MachinabilityOfSteelsBecausesteelsareamongthemostimportantengineeringmaterials(asnotedinChapter5),theirmachinabilityhasbeenstudiedextensively.Themachinabilityofsteelshasbeenmainlyimprovedbyaddingleadandsulfurtoobtainso-calledfree-machiningsteels.ResulfurizedandRephosphorizedsteels.Sulfurinsteelsformsmanganesesulfideinclusions(second-phaseparticles),whichactasstressraisersintheprimaryshearzone.Asaresult,thechipsproducedbreakupeasilyandaresmall;thisimprovesmachinability.Thesize,shape,distribution,andconcentrationoftheseinclusionssignificantlyinfluencemachinability.Elementssuchastelluriumandselenium,whicharebothchemicallysimilartosulfur,actasinclusionmodifiersinresulfurizedsteels.Phosphorusinsteelshastwomajoreffects.Itstrengthenstheferrite,causing第2页共10页第1页共10页编号：时间：2021年x月x日书山有路勤为径，学海无涯苦作舟页码：第2页共10页increasedhardness.Hardersteelsresultinbetterchipformationandsurfacefinish.Notethatsoftsteelscanbedifficulttomachine,withbuilt-upedgeformationandpoorsurfacefinish.Thesecondeffectisthatincreasedhardnesscausestheformationofshortchipsinsteadofcontinuousstringyones,therebyimprovingmachinability.LeadedSteels.Ahighpercentageofleadinsteelssolidifiesatthetipofmanganesesulfideinclusions.Innon-resulfurizedgradesofsteel,leadtakestheformofdispersedfineparticles.Leadisinsolubleiniron,copper,andaluminumandtheiralloys.Becauseofitslowshearstrength,therefore,leadactsasasolidlubricant(Section32.11)andissmearedoverthetool-chipinterfaceduringcutting.Thisbehaviorhasbeenverifiedbythepresenceofhighconcentrationsofleadonthetool-sidefaceofchipswhenmachiningleadedsteels.Whenthetemperatureissufficientlyhigh-forinstance,athighcuttingspeedsandfeeds(Section20.6)—theleadmeltsdirectlyinfrontofthetool,actingasaliquidlubricant.Inadditiontothiseffect,leadlowerstheshearstressintheprimaryshearzone,reducingcuttingforcesandpowerconsumption.Leadcanbeusedineverygradeofsteel,suchas10xx,11xx,12xx,41xx,etc.LeadedsteelsareidentifiedbytheletterLbetweenthesecondandthirdnumerals(forexample,10L45).(Notethatinstainlesssteels,similaruseoftheletterLmeans“lowcarbon,”aconditionthatimprovestheircorrosionresistance.)However,becauseleadisawell-knowntoxinandapollutant,thereareseriousenvironmentalconcernsaboutitsuseinsteels(estimatedat4500tonsofleadconsumptioneveryyearintheproductionofsteels).Consequently,thereisacontinuingtrendtowardeliminatingtheuseofleadinsteels(lead-freesteels).Bismuthandtinarenowbeinginvestigatedaspossiblesubstitutesforleadinsteels.Calciu...
