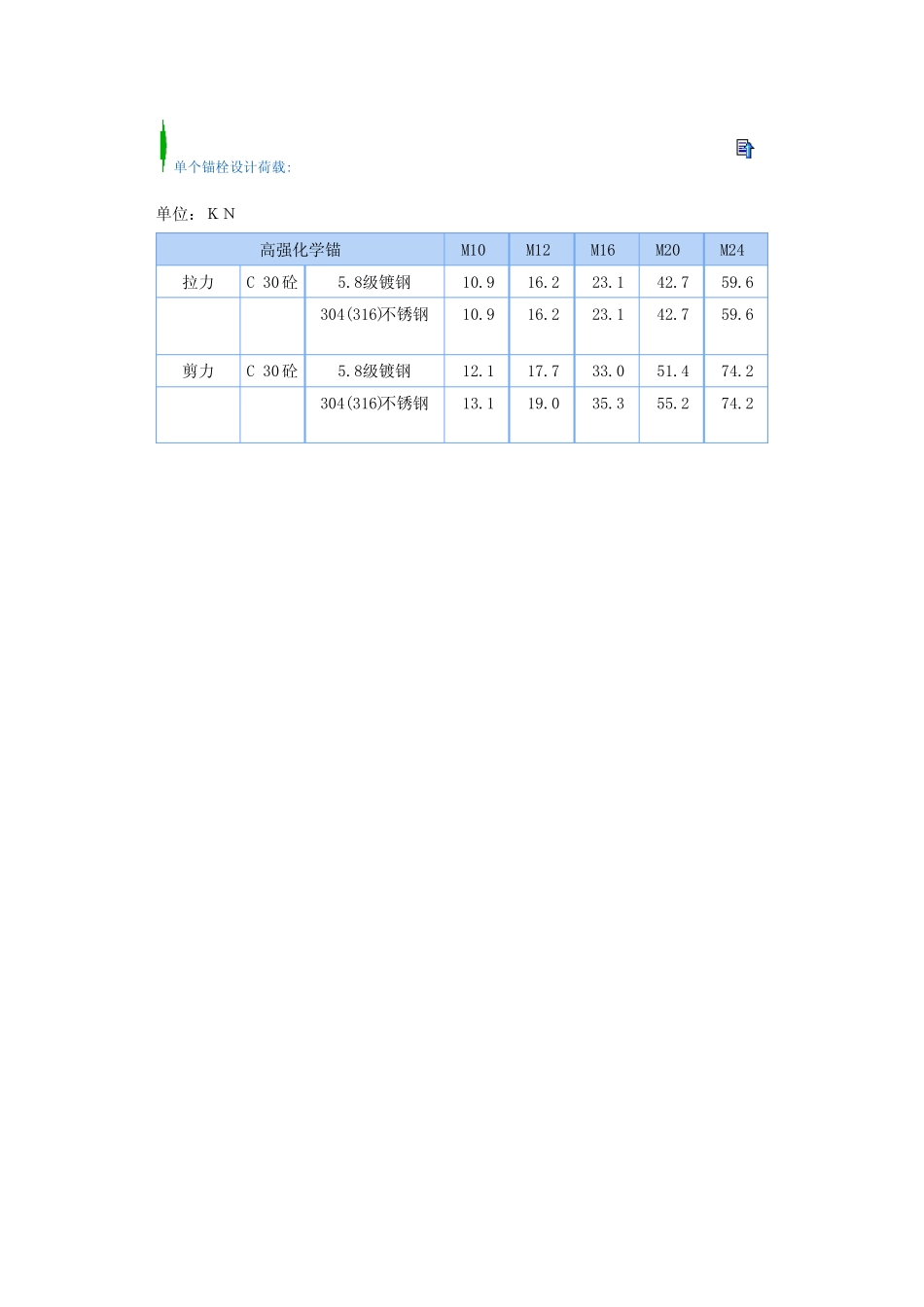

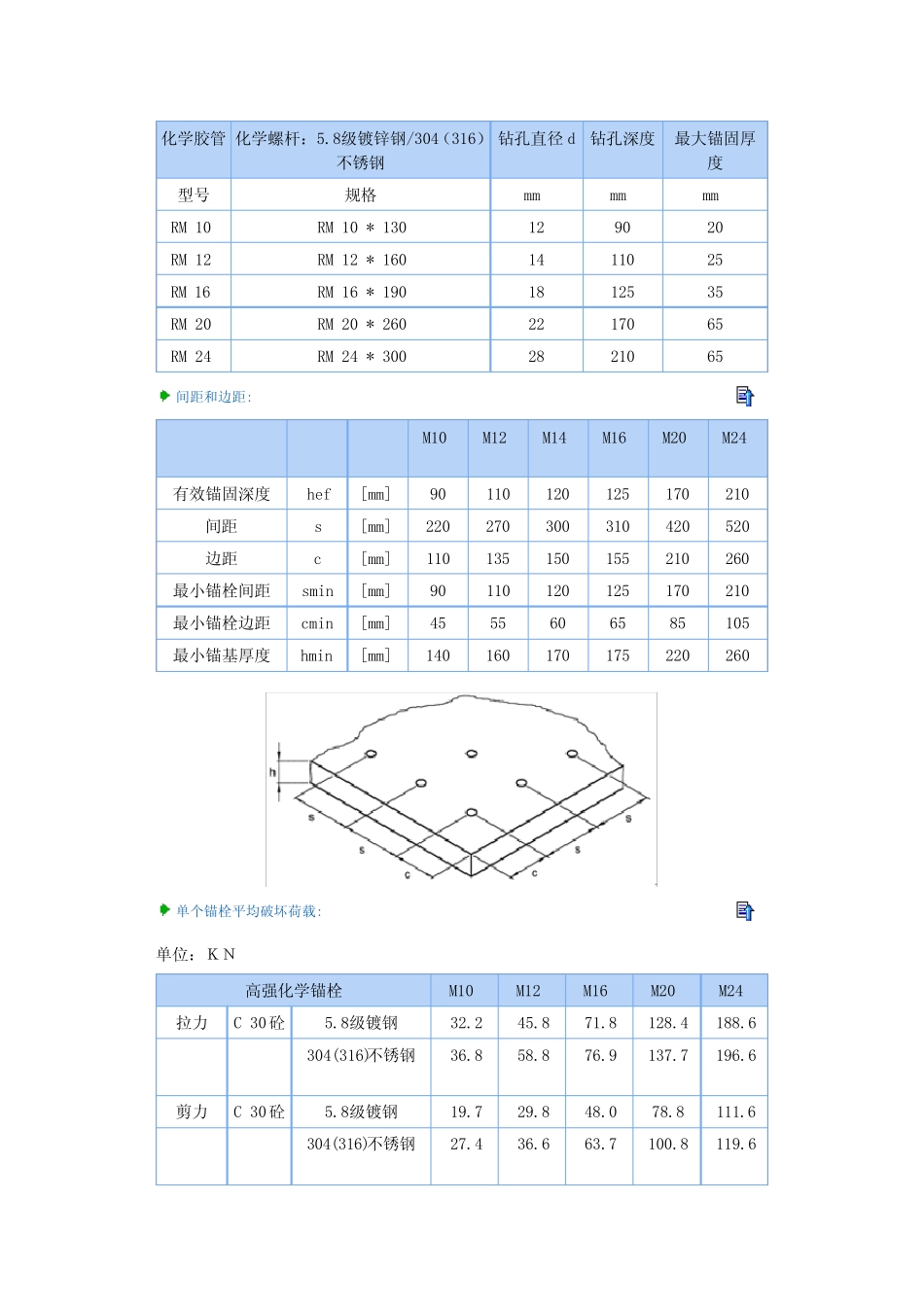

化学胶管化学螺杆：5.8级镀锌钢/304（316）不锈钢钻孔直径d钻孔深度最大锚固厚度型号规格mmmmmmRM10RM10*130129020RM12RM12*1601411025RM16RM16*1901812535RM20RM20*2602217065RM24RM24*3002821065间距和边距:M10M12M14M16M20M24有效锚固深度hef[mm]90110120125170210间距s[mm]220270300310420520边距c[mm]110135150155210260最小锚栓间距smin[mm]90110120125170210最小锚栓边距cmin[mm]4555606585105最小锚基厚度hmin[mm]140160170175220260单个锚栓平均破坏荷载:单位：ＫＮ高强化学锚栓M10M12M16M20M24拉力C30砼5.8级镀钢32.245.871.8128.4188.6304(316)不锈钢36.858.876.9137.7196.6剪力C30砼5.8级镀钢19.729.848.078.8111.6304(316)不锈钢27.436.663.7100.8119.6单个锚栓设计荷载:单位：ＫＮ高强化学锚M10M12M16M20M24拉力C30砼5.8级镀钢10.916.223.142.759.6304(316)不锈钢10.916.223.142.759.6剪力C30砼5.8级镀钢12.117.733.051.474.2304(316)不锈钢13.119.035.355.274.2
