基坑支护毕业设计计算书VIP免费

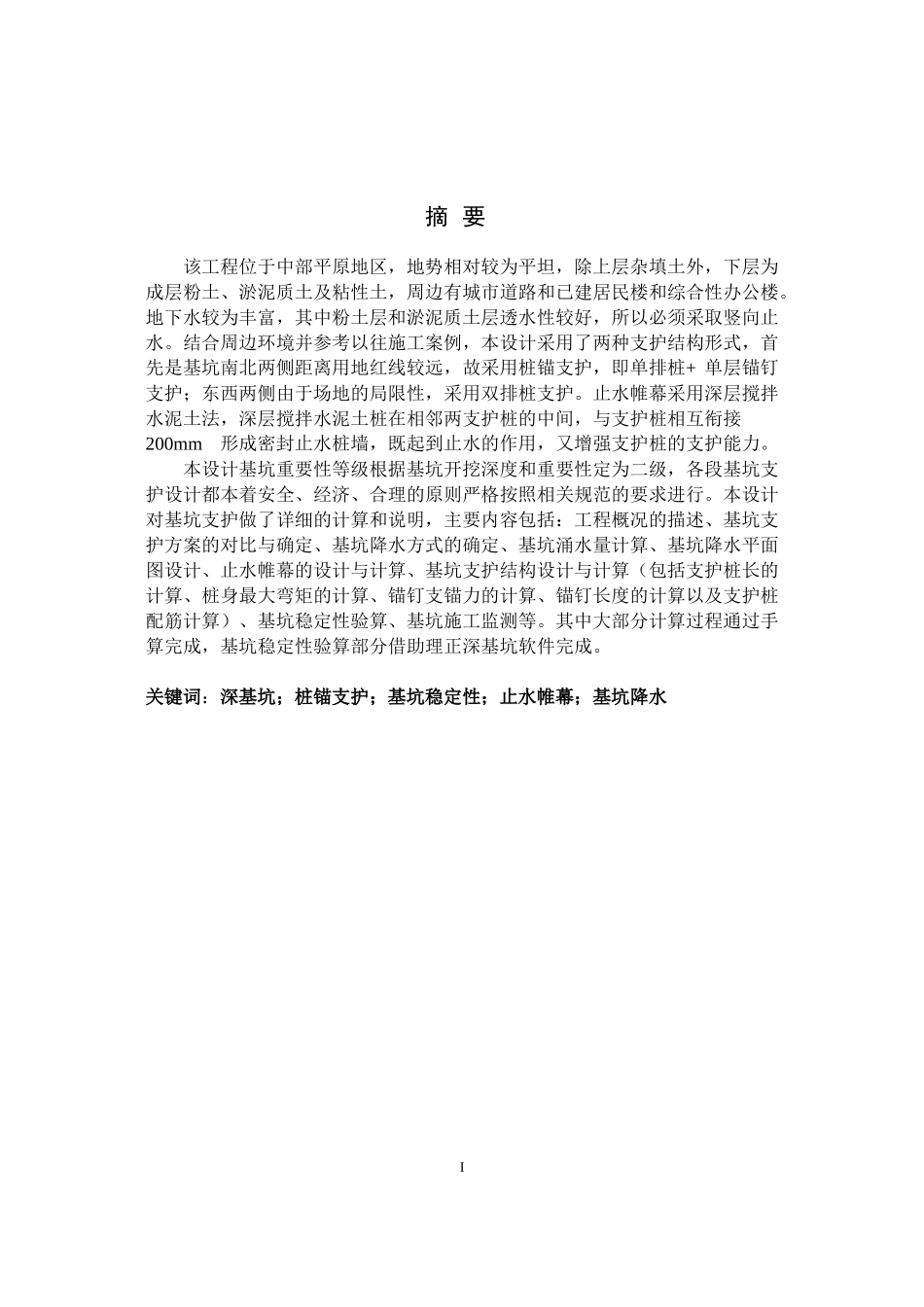

基坑支护毕业设计计算书_第1页
1/77
基坑支护毕业设计计算书_第2页
2/77
基坑支护毕业设计计算书_第3页
3/77
摘要该工程位于中部平原地区,地势相对较为平坦,除上层杂填土外,下层为成层粉土、淤泥质土及粘性土,周边有城市道路和已建居民楼和综合性办公楼。地下水较为丰富,其中粉土层和淤泥质土层透水性较好,所以必须采取竖向止水。结合周边环境并参考以往施工案例,本设计采用了两种支护结构形式,首先是基坑南北两侧距离用地红线较远,故采用桩锚支护,即单排桩+单层锚钉支护;东西两侧由于场地的局限性,采用双排桩支护。止水帷幕采用深层搅拌水泥土法,深层搅拌水泥土桩在相邻两支护桩的中间,与支护桩相互衔接200mm形成密封止水桩墙,既起到止水的作用,又增强支护桩的支护能力。本设计基坑重要性等级根据基坑开挖深度和重要性定为二级,各段基坑支护设计都本着安全、经济、合理的原则严格按照相关规范的要求进行。本设计对基坑支护做了详细的计算和说明,主要内容包括:工程概况的描述、基坑支护方案的对比与确定、基坑降水方式的确定、基坑涌水量计算、基坑降水平面图设计、止水帷幕的设计与计算、基坑支护结构设计与计算(包括支护桩长的计算、桩身最大弯矩的计算、锚钉支锚力的计算、锚钉长度的计算以及支护桩配筋计算)、基坑稳定性验算、基坑施工监测等。其中大部分计算过程通过手算完成,基坑稳定性验算部分借助理正深基坑软件完成。关键词:深基坑;桩锚支护;基坑稳定性;止水帷幕;基坑降水IAbstractTheprojectislocatedinthemiddleofplainsareas.Theterrainisrelativelyflat.Exceptfortheuppermiscellaneousfill,thelowermostlylayeredsilt,siltysoilandclaysoil.Thefoundationpitsurroundedbyurbanroadsandbuildingsthathavebeenbuilt.Theareaisrichingroundwaterandthewaterpermeabilityofsiltandmuckysoilisbetter.Soitisnecessarytousetheverticalwaterproofcurtain.Thedesignusestwoformsofsupportstructurecombinedwiththesurroundingenvironmentandwithreferencetootherconstructioncases.Thenorthandsouthsidesofthefoundationpitisfarawayfromtheredline.SothePile-anchorSupportisusedthatissinglerowpilesingletaganchorsupport;Duetothelimitationsofspace,doublerowpilessupportisusedoneastandwestsides.Eementdeepmixingmethodisusedtodevelopwaterproofcurtain.Itplaysaroleinwaterstop,butalsoenhancethesupportcapabilityofsupportpileswhenthedeepmixingcementpileslinkinthemiddleoftwoadjacentsoldierpiles200mmwhichformingasealedsealwaterstop.Accordingtoexcavationpitdepthandimportancethelevelofimportanceofthedesignisasecondary.Eachsegmentoftheexcavationdesignarestrictaccordancewiththerequirementsoftherelevantnormsdevelopinasafe,economicalandreasonableprinciple.Thedesignmadeadetailedcalculationandexplanationaboutthefoundationpit,themaincontentsinclude:adescriptionoftheprojectoverview,schemecomparisonandselectionoftheFoundationPitSupport,determiningofFoundationPitDewateringMethods,calculationoffoundationinflow,thedesignofFoundationPitprecipitationplanview,designandcalculationofwaterproofcurtain,thedesignandcalculationsofFoundationPitsupportstructure(includingthelongthcalculationofsupportingpiles,thecalculationofmaximumbendingmoment,thecalculationtaganchortensionandcalculationofthelengthoftaganchorandthereinforcementcalculationForsupportingpiles),thecheckingforfoundationstability,FoundationPitconstructionmonitoring.Keyword:DeepFoundation;Pile-anchorSupport;stabilityofFoundationPit;WaterstopCurtain;foundationpitdewateringII目录摘要........................................................................................................................IAbstract....................................................................................................................II第1章绪论........................................
