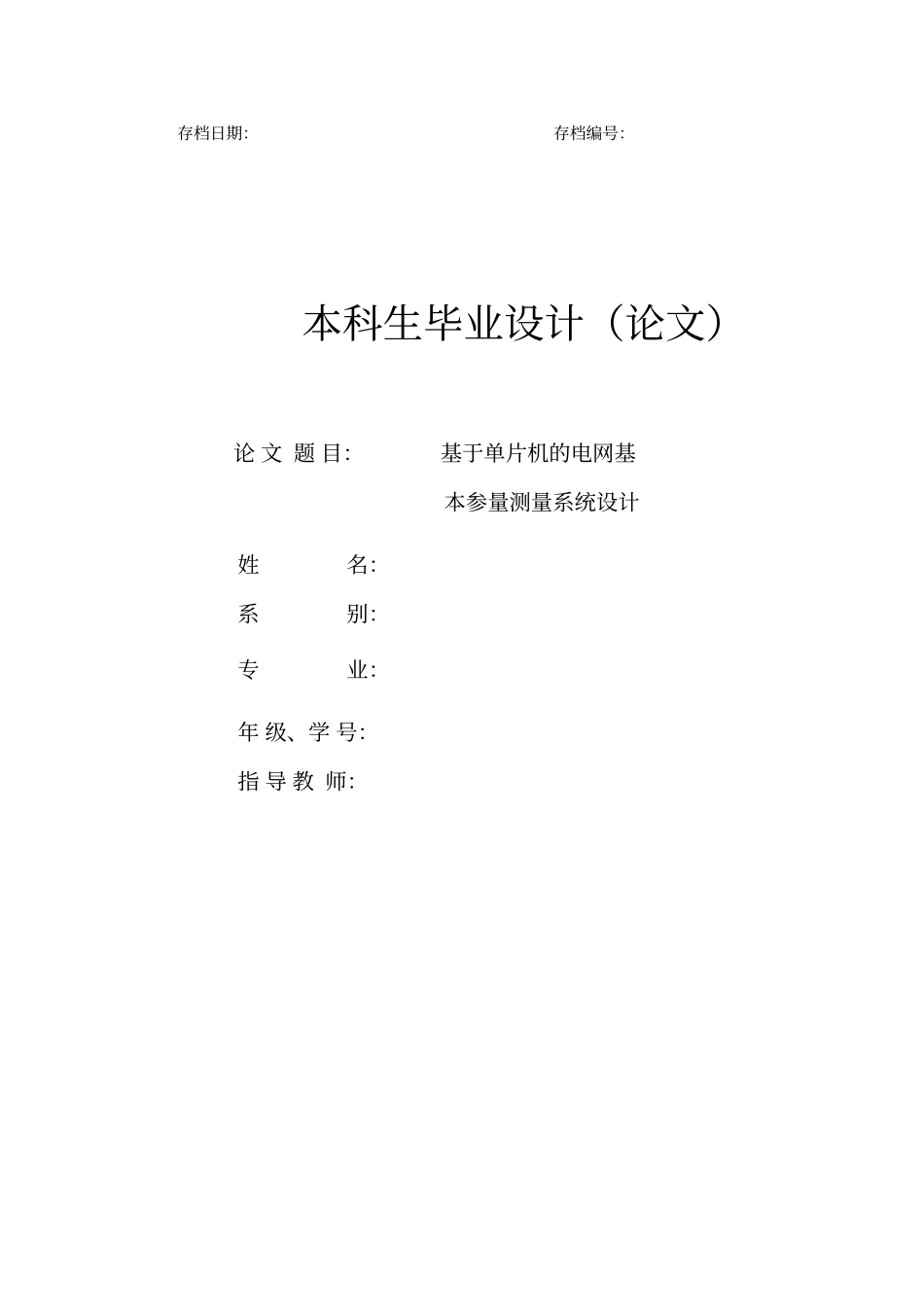

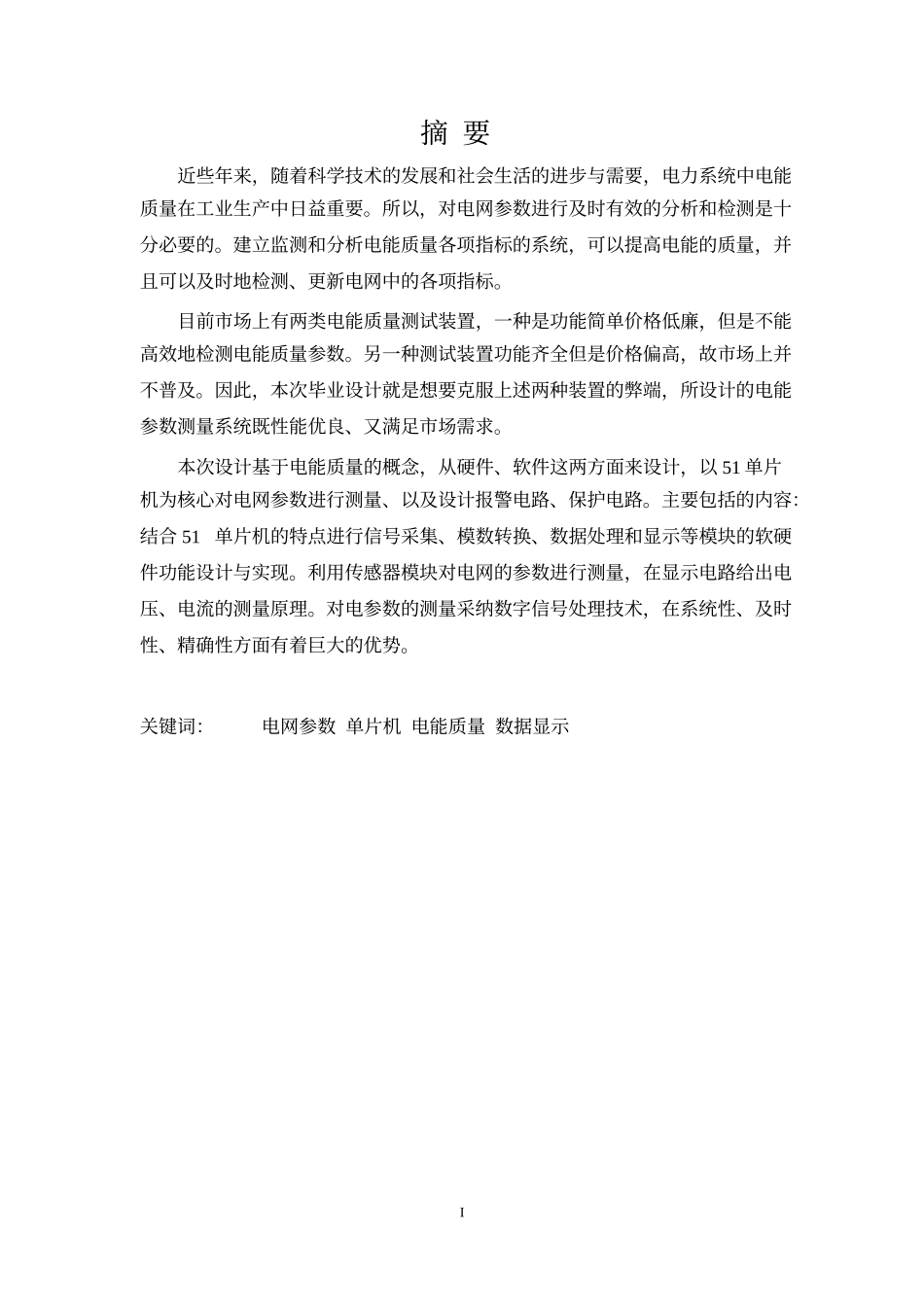

存档日期:存档编号:本科生毕业设计(论文)论文题目:基于单片机的电网基本参量测量系统设计姓系专名:别:业:年级、学号:指导教师:摘要近些年来,随着科学技术的发展和社会生活的进步与需要,电力系统中电能质量在工业生产中日益重要。所以,对电网参数进行及时有效的分析和检测是十分必要的。建立监测和分析电能质量各项指标的系统,可以提高电能的质量,并且可以及时地检测、更新电网中的各项指标。目前市场上有两类电能质量测试装置,一种是功能简单价格低廉,但是不能高效地检测电能质量参数。另一种测试装置功能齐全但是价格偏高,故市场上并不普及。因此,本次毕业设计就是想要克服上述两种装置的弊端,所设计的电能参数测量系统既性能优良、又满足市场需求。本次设计基于电能质量的概念,从硬件、软件这两方面来设计,以51单片机为核心对电网参数进行测量、以及设计报警电路、保护电路。主要包括的内容:结合51单片机的特点进行信号采集、模数转换、数据处理和显示等模块的软硬件功能设计与实现。利用传感器模块对电网的参数进行测量,在显示电路给出电压、电流的测量原理。对电参数的测量采纳数字信号处理技术,在系统性、及时性、精确性方面有着巨大的优势。关键词:电网参数单片机电能质量数据显示IAbstractFollowthefastevolutionofnationaleconomyandhighstandardoflivingonpowersystemhigherandhigherrequirementforqualityofpowerenergyandindustrialproduction.So,inreal-timedetectionandanalysisofpowerparameterhasimportantsignificance.Inordercompletethepowerquality,thefirsttoestablishtheindicatorsofthepowerqualitymonitoringandanalysissystem,realtimeupdateofdataacquisitionandmeasurementofvariousindexinpowersystem.OnthemarketuseofenergyqualityteachingInstallationisdividedintotwocategories,generalusersisgoodtofinditdifficulttoasaccept.Anotheristhatcheapbutsimplefunction,couldnotfullyrashthevariouskilometersofqualityofelectricenergy.So,thisdesignistodesignafull-featured,suitableforthemarketdemandofpowerparametermeasurementsystem.Inthispaper,onthebasisofdiscussingtheconceptofqualityofelectricenergy,introducedtheresearchofpowerparametersystemwith51microcontrollerasthecoreofthehardwaredesign,softwaredesign.Theyaremainlyasfollows:Thesoftwareandhardwaredesignwiththecharacteristicsofthe51singlechipmicrocomputerforpowerdistribution,digitalcoversion,datamodule.Theparametersweremeasuredusinginstrumenttransformerchipmoduleonthegrid,theprincipleofmesurementofvoltage,current,frequencycircuitisgivenavalueisIIdisplayed.Measurementofparametersusingsignalprocessingtechnology,inordertoimprovetheaccuracy,real-timeandsystemlevelhasuniqueadvantage.Keywords:gridparameterssinglechipmicrocomputerpowerqualitydatashowIII目录摘要........................................................IAbstract....................................................IV1绪论........................................................11.1研究背景.................................................11.1.1课题研究背景及意义.................................11.1.2电能质量的定义.....................................11.1.3电网质量问题的研究现状.............................11.1.4现阶段电网质量测量装置的调查.......................31.2研究目的和意义..........................................31.3研究方法和构想..........................................41.3.1总体设计思路理论综述:.............................41.3.2总体设计思路原理框图:.............................42电网参量测量系统硬件电路设计............................62.1互感器(变压器)模块....................................62.1.1互感器介绍.......................................
