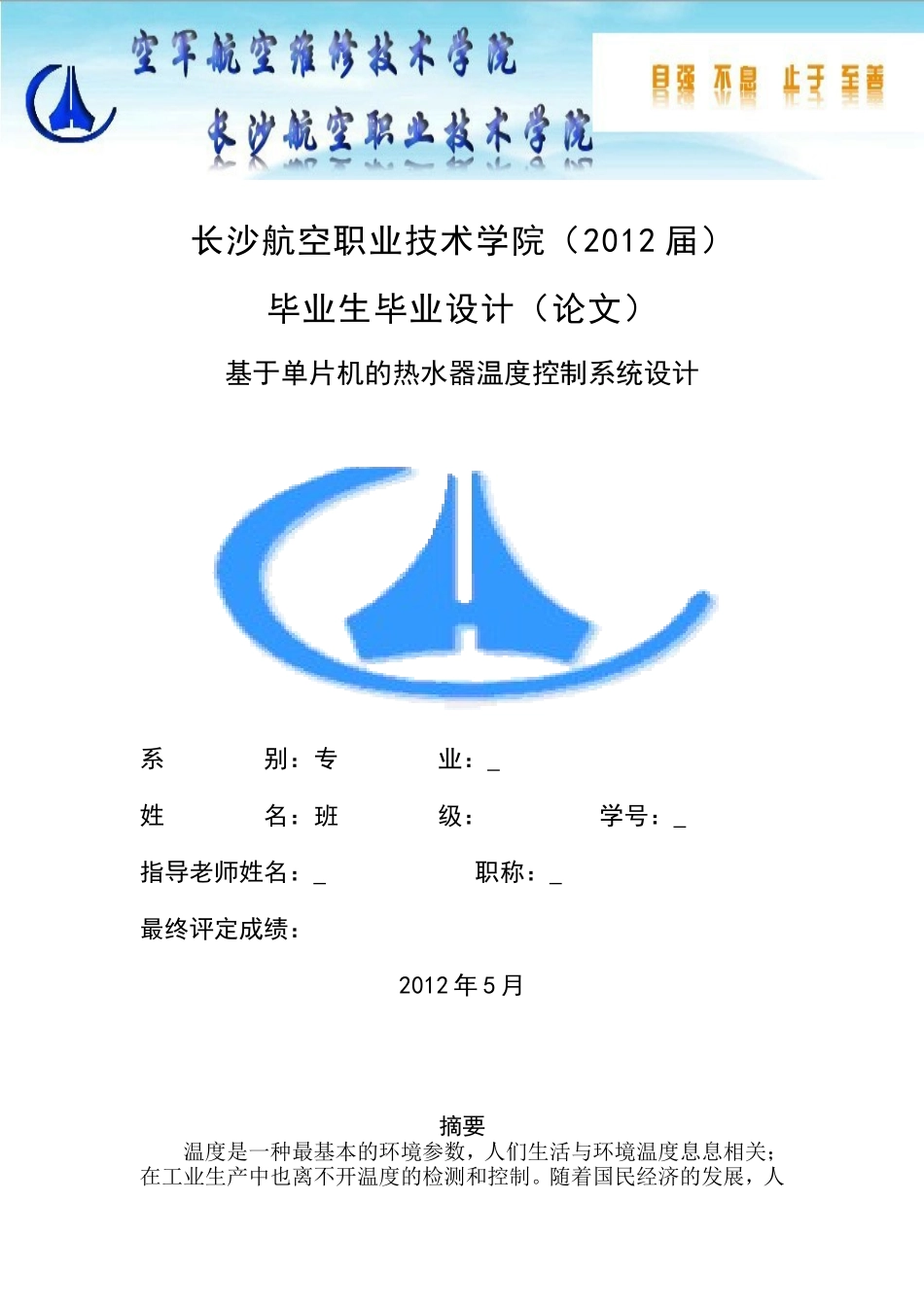

基于单片机的热水器温度控制系统设计_第1页
1/42

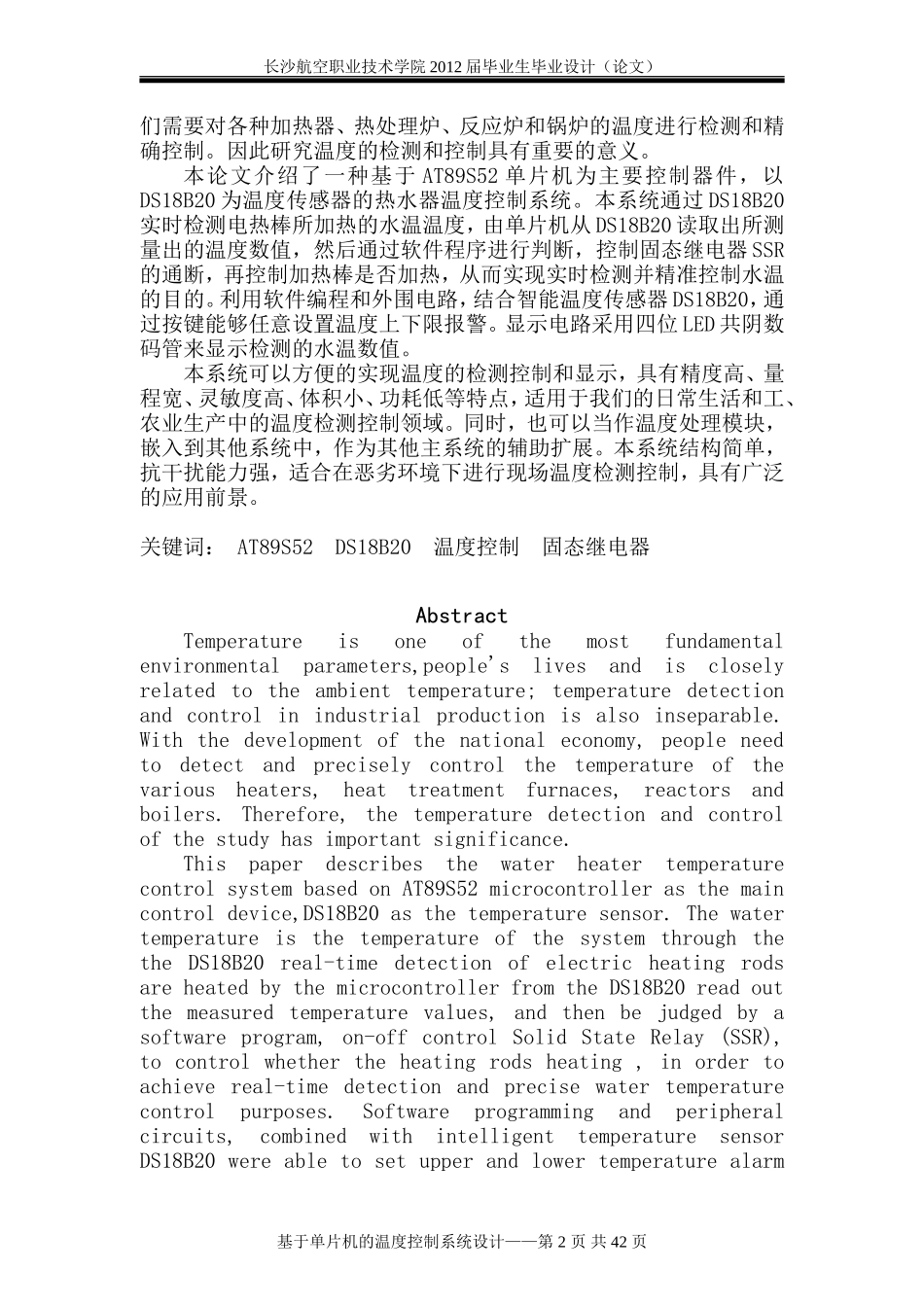

基于单片机的热水器温度控制系统设计_第2页
2/42

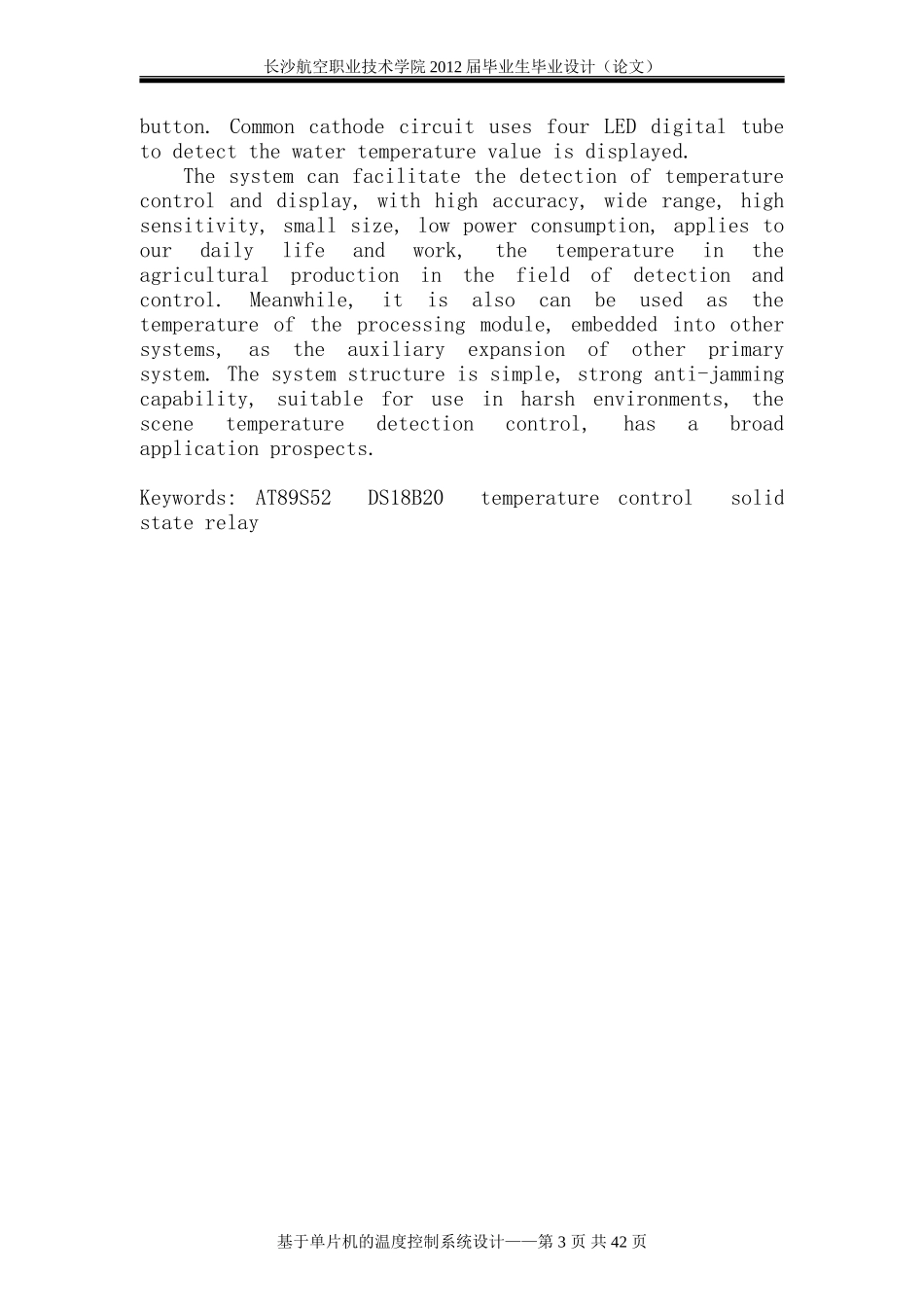

基于单片机的热水器温度控制系统设计_第3页
3/42
长沙航空职业技术学院(2012届)毕业生毕业设计(论文)基于单片机的热水器温度控制系统设计系别:专业:姓名:班级:学号:指导老师姓名:职称:最终评定成绩:2012年5月摘要温度是一种最基本的环境参数,人们生活与环境温度息息相关;在工业生产中也离不开温度的检测和控制。随着国民经济的发展,人长沙航空职业技术学院2012届毕业生毕业设计(论文)们需要对各种加热器、热处理炉、反应炉和锅炉的温度进行检测和精确控制。因此研究温度的检测和控制具有重要的意义。本论文介绍了一种基于AT89S52单片机为主要控制器件,以DS18B20为温度传感器的热水器温度控制系统。本系统通过DS18B20实时检测电热棒所加热的水温温度,由单片机从DS18B20读取出所测量出的温度数值,然后通过软件程序进行判断,控制固态继电器SSR的通断,再控制加热棒是否加热,从而实现实时检测并精准控制水温的目的。利用软件编程和外围电路,结合智能温度传感器DS18B20,通过按键能够任意设置温度上下限报警。显示电路采用四位LED共阴数码管来显示检测的水温数值。本系统可以方便的实现温度的检测控制和显示,具有精度高、量程宽、灵敏度高、体积小、功耗低等特点,适用于我们的日常生活和工、农业生产中的温度检测控制领域。同时,也可以当作温度处理模块,嵌入到其他系统中,作为其他主系统的辅助扩展。本系统结构简单,抗干扰能力强,适合在恶劣环境下进行现场温度检测控制,具有广泛的应用前景。关键词:AT89S52DS18B20温度控制固态继电器AbstractTemperatureisoneofthemostfundamentalenvironmentalparameters,people'slivesandiscloselyrelatedtotheambienttemperature;temperaturedetectionandcontrolinindustrialproductionisalsoinseparable.Withthedevelopmentofthenationaleconomy,peopleneedtodetectandpreciselycontrolthetemperatureofthevariousheaters,heattreatmentfurnaces,reactorsandboilers.Therefore,thetemperaturedetectionandcontrolofthestudyhasimportantsignificance.ThispaperdescribesthewaterheatertemperaturecontrolsystembasedonAT89S52microcontrollerasthemaincontroldevice,DS18B20asthetemperaturesensor.ThewatertemperatureisthetemperatureofthesystemthroughthetheDS18B20real-timedetectionofelectricheatingrodsareheatedbythemicrocontrollerfromtheDS18B20readoutthemeasuredtemperaturevalues,andthenbejudgedbyasoftwareprogram,on-offcontrolSolidStateRelay(SSR),tocontrolwhethertheheatingrodsheating,inordertoachievereal-timedetectionandprecisewatertemperaturecontrolpurposes.Softwareprogrammingandperipheralcircuits,combinedwithintelligenttemperaturesensorDS18B20wereabletosetupperandlowertemperaturealarm基于单片机的温度控制系统设计——第2页共42页长沙航空职业技术学院2012届毕业生毕业设计(论文)button.CommoncathodecircuitusesfourLEDdigitaltubetodetectthewatertemperaturevalueisdisplayed.Thesystemcanfacilitatethedetectionoftemperaturecontrolanddisplay,withhighaccuracy,widerange,highsensitivity,smallsize,lowpowerconsumption,appliestoourdailylifeandwork,thetemperatureintheagriculturalproductioninthefieldofdetectionandcontrol.Meanwhile,itisalsocanbeusedasthetemperatureoftheprocessingmodule,embeddedintoothersystems,astheauxiliaryexpansionofotherprimarysystem.Thesystemstructureissimple,stronganti-jammingcapability,suitableforuseinharshenvironments,thescenetemperaturedetectioncontrol,hasabroadapplicationprospects.Keywords:AT89S52DS18B20temperaturecontrolsolidstaterelay基于单片机的温度控制系统设计——第3页共42页长沙航空职业技术学院2012届毕业生毕业设计(论文)目录目录............................................................................................................................4第1章绪论.....................................................
