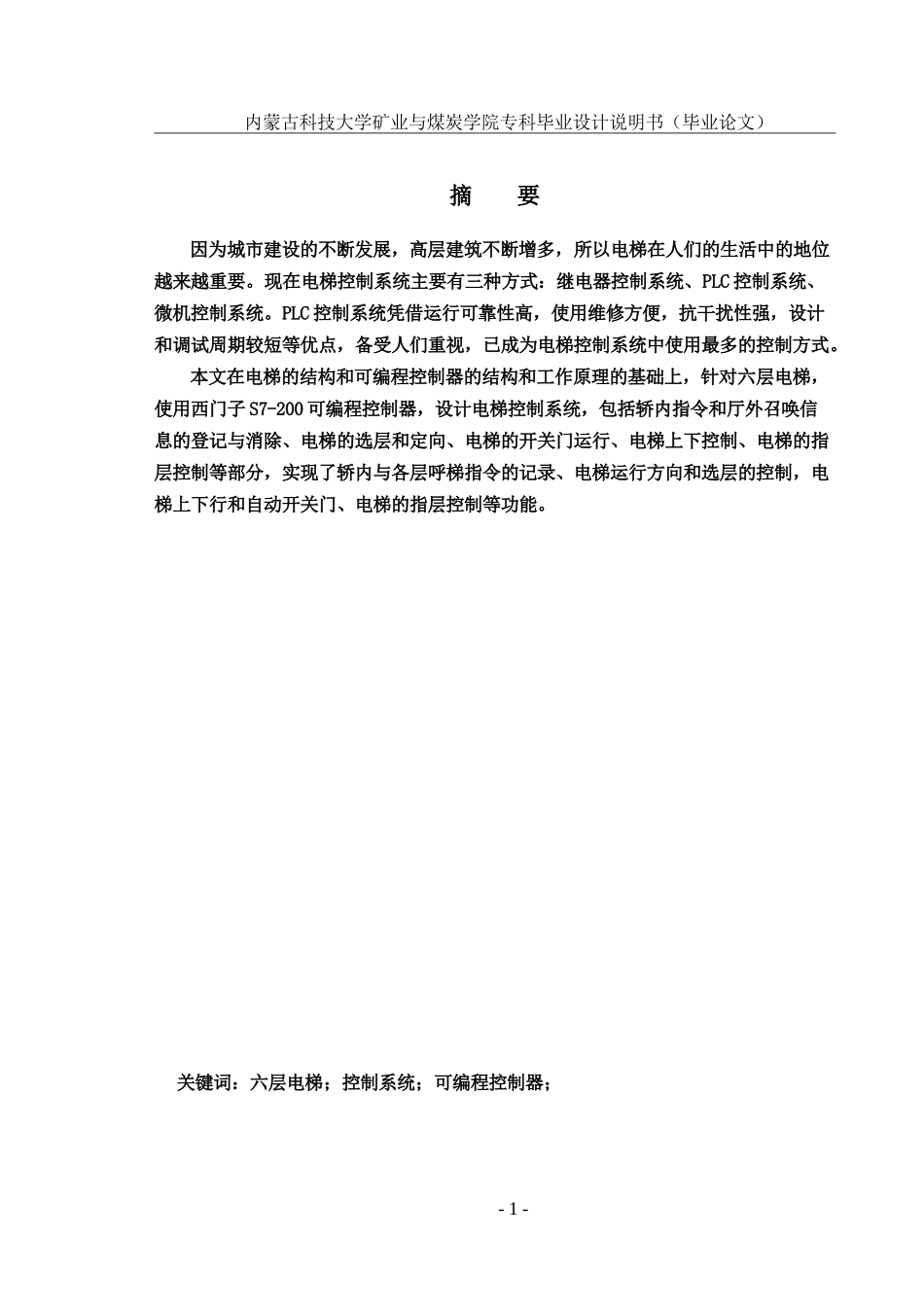

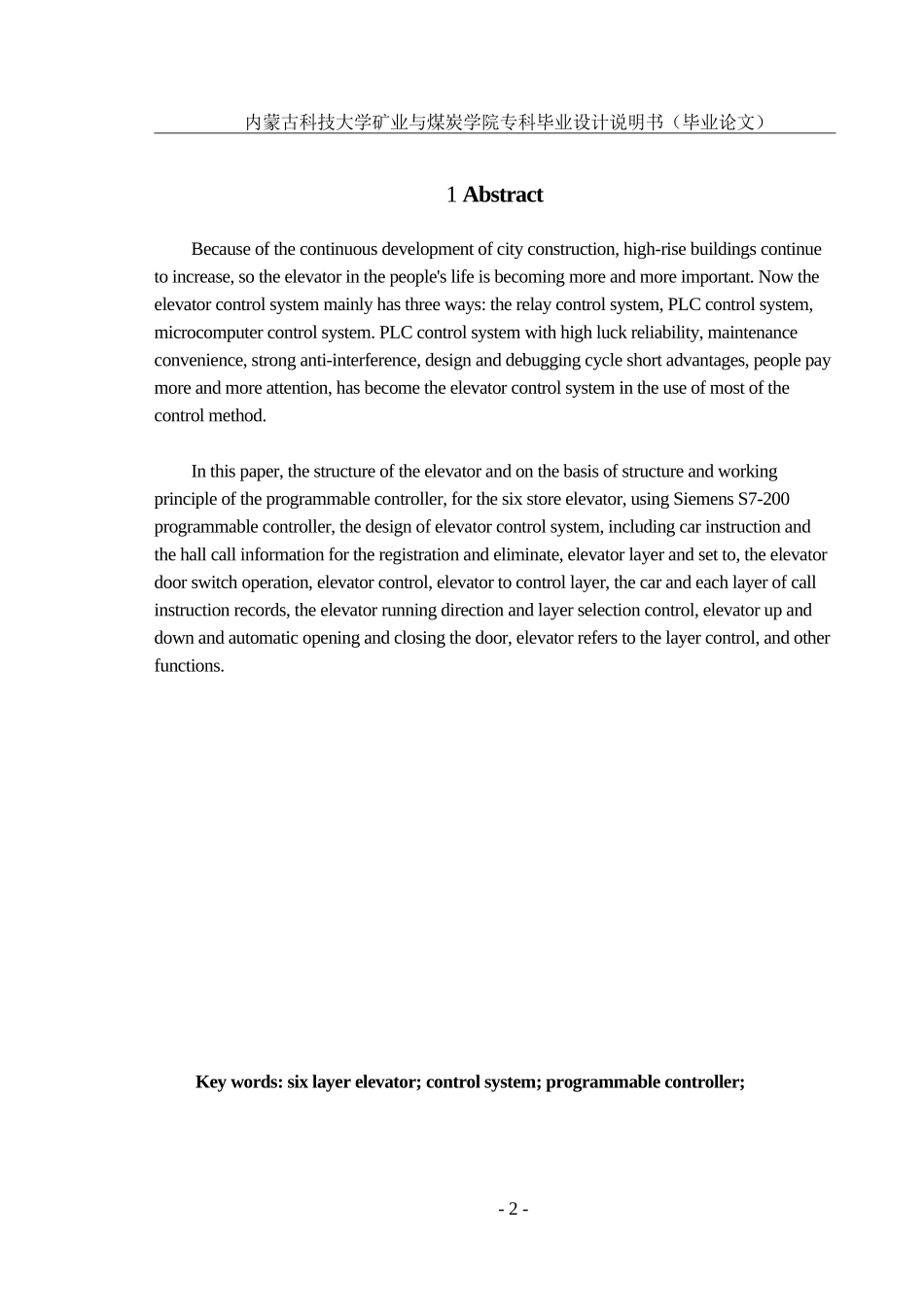

内蒙古科技大学矿业与煤炭学院专科毕业设计说明书(毕业论文)摘要因为城市建设的不断发展,高层建筑不断增多,所以电梯在人们的生活中的地位越来越重要。现在电梯控制系统主要有三种方式:继电器控制系统、PLC控制系统、微机控制系统。PLC控制系统凭借运行可靠性高,使用维修方便,抗干扰性强,设计和调试周期较短等优点,备受人们重视,已成为电梯控制系统中使用最多的控制方式。本文在电梯的结构和可编程控制器的结构和工作原理的基础上,针对六层电梯,使用西门子S7-200可编程控制器,设计电梯控制系统,包括轿内指令和厅外召唤信息的登记与消除、电梯的选层和定向、电梯的开关门运行、电梯上下控制、电梯的指层控制等部分,实现了轿内与各层呼梯指令的记录、电梯运行方向和选层的控制,电梯上下行和自动开关门、电梯的指层控制等功能。-1-关键词:六层电梯;控制系统;可编程控制器;内蒙古科技大学矿业与煤炭学院专科毕业设计说明书(毕业论文)1AbstractBecauseofthecontinuousdevelopmentofcityconstruction,high-risebuildingscontinuetoincrease,sotheelevatorinthepeople'slifeisbecomingmoreandmoreimportant.Nowtheelevatorcontrolsystemmainlyhasthreeways:therelaycontrolsystem,PLCcontrolsystem,microcomputercontrolsystem.PLCcontrolsystemwithhighluckreliability,maintenanceconvenience,stronganti-interference,designanddebuggingcycleshortadvantages,peoplepaymoreandmoreattention,hasbecometheelevatorcontrolsystemintheuseofmostofthecontrolmethod.Inthispaper,thestructureoftheelevatorandonthebasisofstructureandworkingprincipleoftheprogrammablecontroller,forthesixstoreelevator,usingSiemensS7-200programmablecontroller,thedesignofelevatorcontrolsystem,includingcarinstructionandthehallcallinformationfortheregistrationandeliminate,elevatorlayerandsetto,theelevatordoorswitchoperation,elevatorcontrol,elevatortocontrollayer,thecarandeachlayerofcallinstructionrecords,theelevatorrunningdirectionandlayerselectioncontrol,elevatorupanddownandautomaticopeningandclosingthedoor,elevatorreferstothelayercontrol,andotherfunctions.-2-Keywords:sixlayerelevator;controlsystem;programmablecontroller;内蒙古科技大学矿业与煤炭学院专科毕业设计说明书(毕业论文)目录摘要........................................................................................................................1Abstract...........................................................................................................................1绪论................................................................................................................................11.1电梯的概述........................................................................................................11.1.1电梯的分类..............................................................................................11.1.2电梯的组成..............................................................................................21.1.3电梯的工作原理......................................................................................21.1.4电梯的国内外发展状况..........................................................................31.2PLC控制电梯的优势........................................................................................51.3电梯的发展趋势................................................................................................61.4一般控制要求....................................................................................................61.5课题研究内容..........................................................
