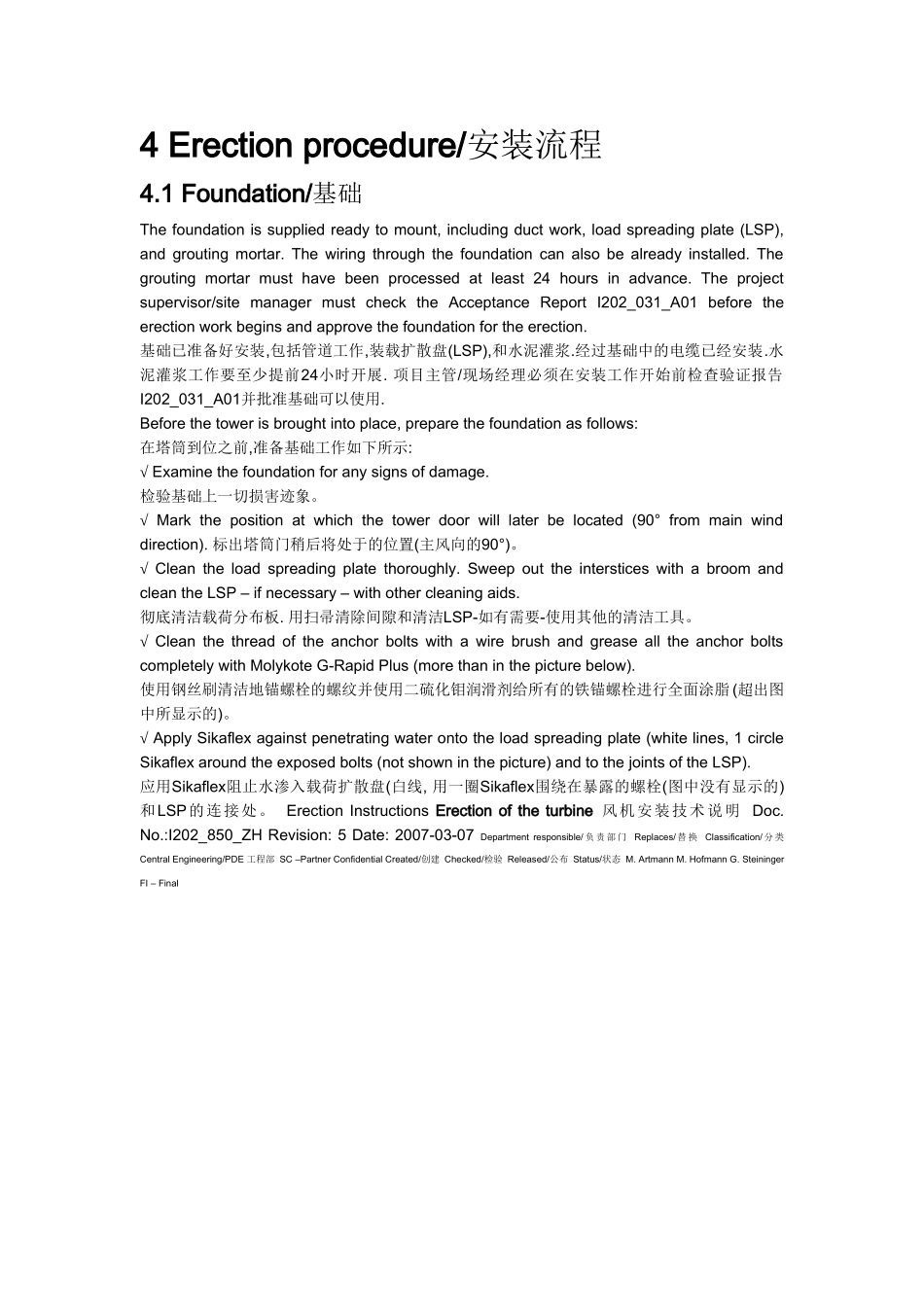

4Erectionprocedure/安装流程4.1Foundation/基础Thefoundationissuppliedreadytomount,includingductwork,loadspreadingplate(LSP),andgroutingmortar.Thewiringthroughthefoundationcanalsobealreadyinstalled.Thegroutingmortarmusthavebeenprocessedatleast24hoursinadvance.Theprojectsupervisor/sitemanagermustchecktheAcceptanceReportI202_031_A01beforetheerectionworkbeginsandapprovethefoundationfortheerection.基础已准备好安装,包括管道工作,装载扩散盘(LSP),和水泥灌浆.经过基础中的电缆已经安装.水泥灌浆工作要至少提前24小时开展.项目主管/现场经理必须在安装工作开始前检查验证报告I202_031_A01并批准基础可以使用.Beforethetowerisbroughtintoplace,preparethefoundationasfollows:在塔筒到位之前,准备基础工作如下所示:√Examinethefoundationforanysignsofdamage.检验基础上一切损害迹象。√Markthepositionatwhichthetowerdoorwilllaterbelocated(90°frommainwinddirection).标出塔筒门稍后将处于的位置(主风向的90°)。√Cleantheloadspreadingplatethoroughly.SweepouttheintersticeswithabroomandcleantheLSP–ifnecessary–withothercleaningaids.彻底清洁载荷分布板.用扫帚清除间隙和清洁LSP-如有需要-使用其他的清洁工具。√CleanthethreadoftheanchorboltswithawirebrushandgreasealltheanchorboltscompletelywithMolykoteG-RapidPlus(morethaninthepicturebelow).使用钢丝刷清洁地锚螺栓的螺纹并使用二硫化钼润滑剂给所有的铁锚螺栓进行全面涂脂(超出图中所显示的)。√ApplySikaflexagainstpenetratingwaterontotheloadspreadingplate(whitelines,1circleSikaflexaroundtheexposedbolts(notshowninthepicture)andtothejointsoftheLSP).应用Sikaflex阻止水渗入载荷扩散盘(白线,用一圈Sikaflex围绕在暴露的螺栓(图中没有显示的)和LSP的连接处。ErectionInstructionsErectionoftheturbine风机安装技术说明Doc.No.:I202_850_ZHRevision:5Date:2007-03-07Departmentresponsible/负责部门Replaces/替换Classification/分类CentralEngineering/PDE工程部SC–PartnerConfidentialCreated/创建Checked/检验Released/公布Status/状态M.ArtmannM.HofmannG.SteiningerFI–Final√Placethewashersandnutsclosetohand.Inalltowers,asaprinciple,sphericalwashersareused(conewasher/ballwasher).垫圈和螺母预先放置。在所有塔筒里,根据规定使用球状垫圈(圆锥体垫圈/球芯垫圈)。Fig.4Preparedfoundationandsphericalwashers准备好的基础和球形垫圈4.2Erectionofthelowertowersegment/安装底层塔段Makesurealltowersegmentsarecompleteandnotdamaged.Spotchecktheplatformfasteningsandmetalsheetsforsecureattachment.确保所有塔筒的部分都完整无损。为了安全添加,当场应检查平台的紧固和金属板的安全。4.2.1Transformerinthetower/塔筒内的变压器Ifthetransformerisinstalledinthetower,thetransformermustbeplacedonthefoundationbeforethefirsttowersegmentisbroughtintoplace.Followtheinstructionsinthehandbook"TransformerintheTower".如果塔筒内安装了变压器,那么变压器需要在第一节塔筒到位前放置在基础上.遵循手册”塔筒变压器”的使用说明.√Markthepositionofthetransformer"onthefoundation,startingfromthepositionofthedoor.在基础上标出变压器的位置,从门开始.√Ifthetransformerisanoil-immersedtransformer,placeandpositionthedripbasinonthefoundationfirst.如果变压器属于油浸式,要在基础上先放置一个脸盆.√Fastenthetransformerwithshacklesandchainslingstothehoistingringandpositionitonthefoundation(ifitisanoil-immersedtransformer:intothedripbasin).Alignthetransformer.用锚链和链式吊索将变压器固定在起重环上并将它放置在基础上(如果是油浸式变压器,要放在滴水盆中),对齐变压器Afterthelowesttowersegmentisinplace,youmustfirstpositionthemediumvoltage(MV)switchingsystem#onthelowestplatform.当最低部分的塔筒到位时,必...
