气密门说明书VIP免费

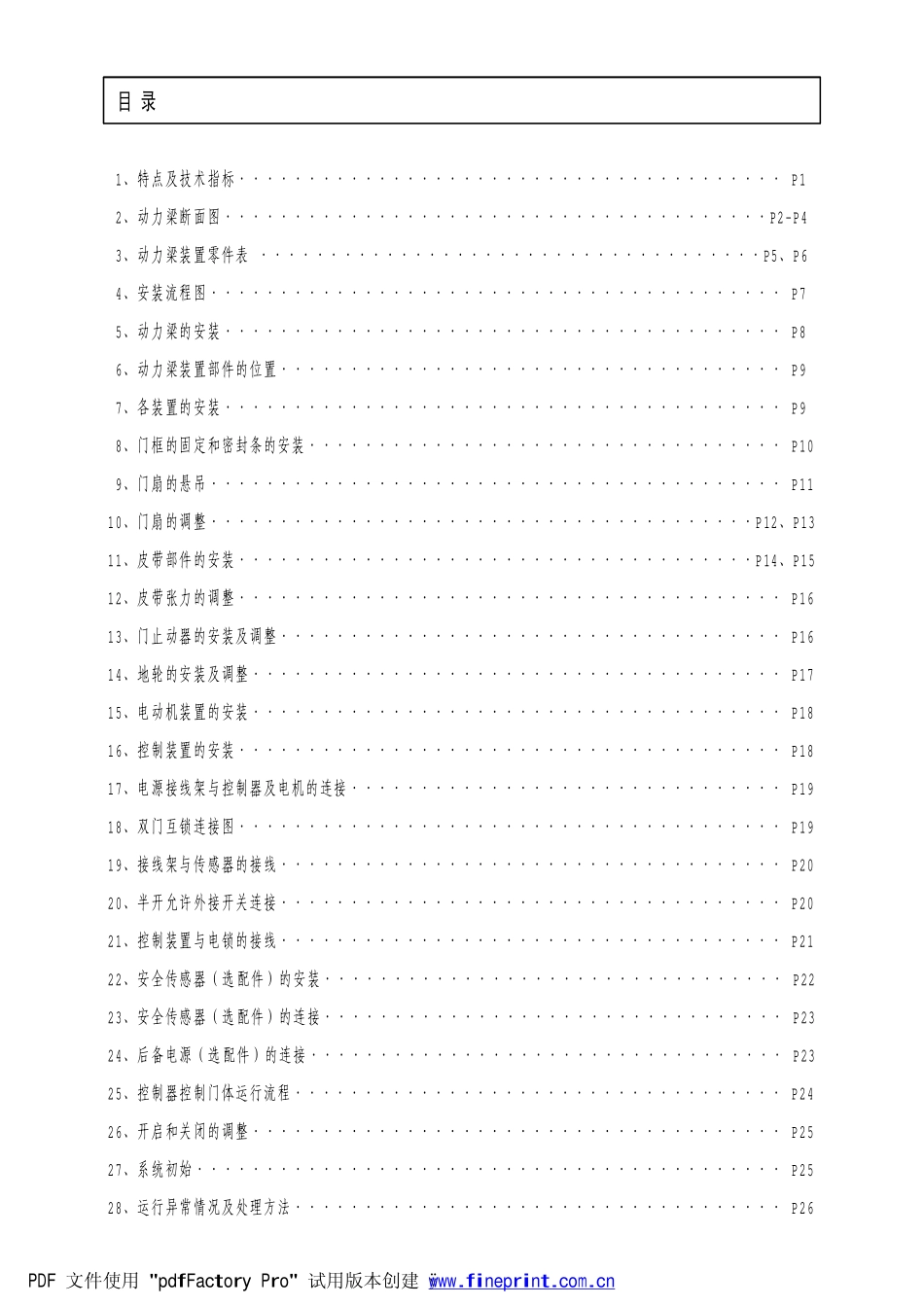

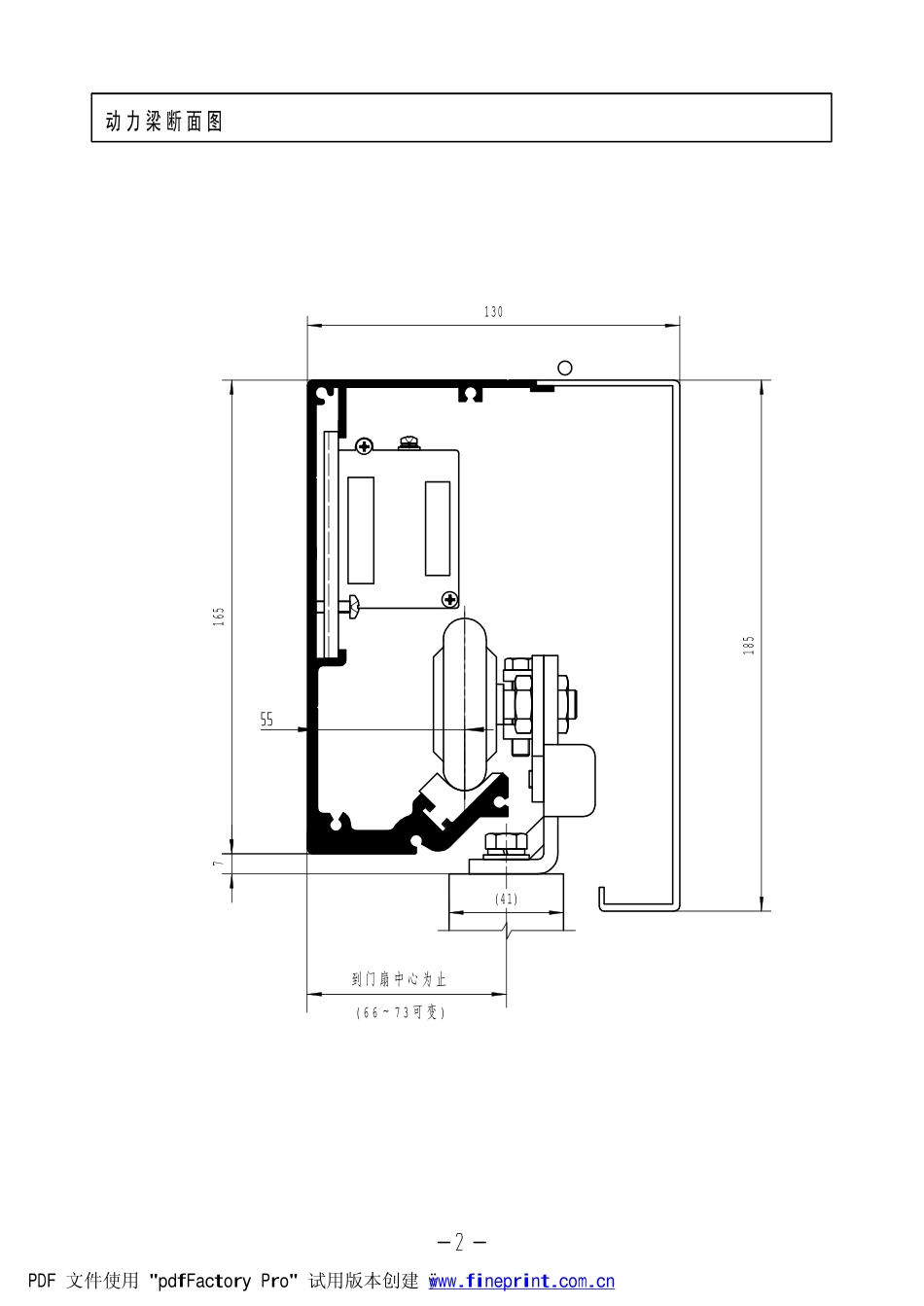

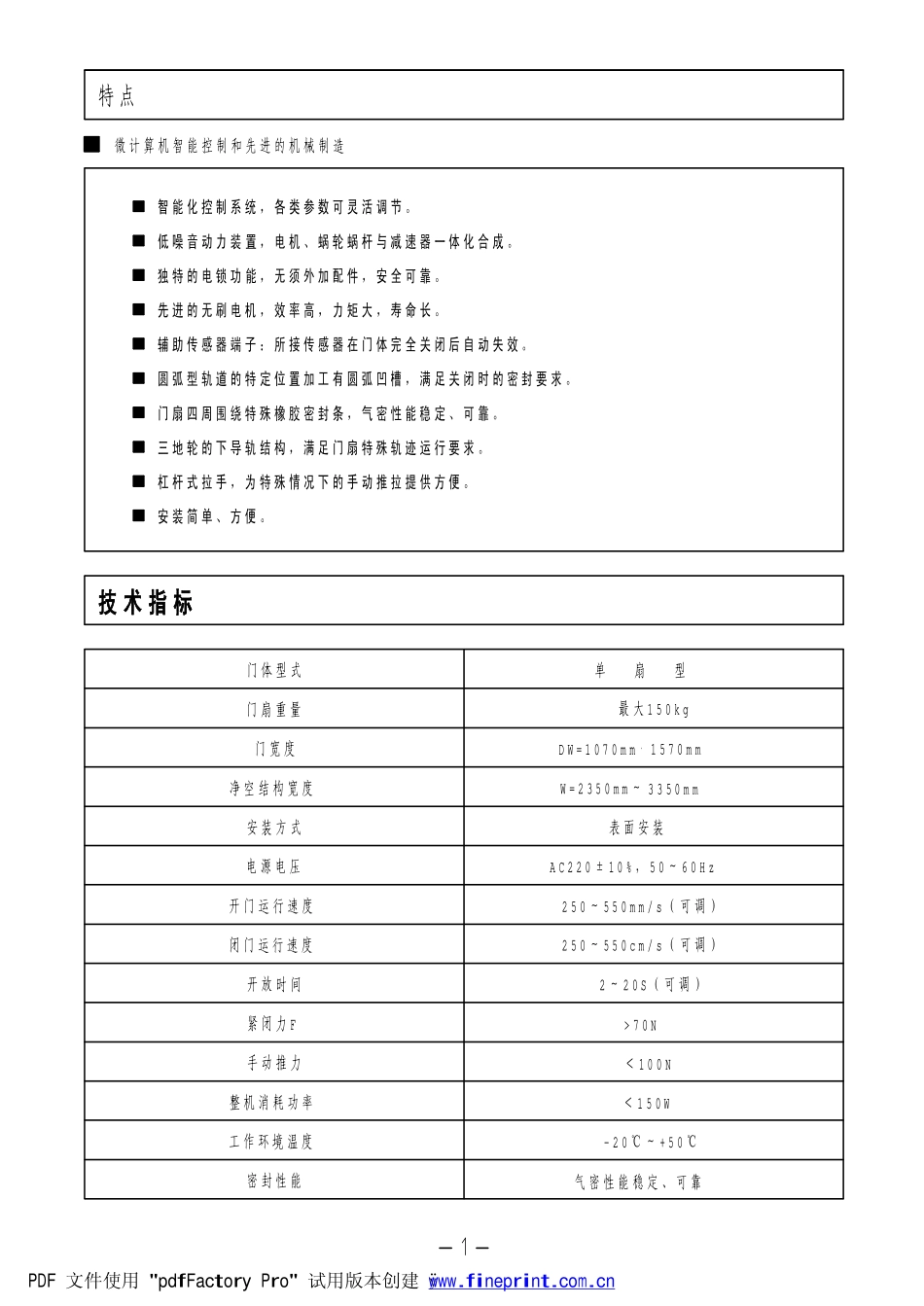

1、特点及技术指标·······································P12、动力梁断面图·······································P2-P43、动力梁装置零件表····································P5、P64、安装流程图·········································P75、动力梁的安装········································P86、动力梁装置部件的位置····································P97、各装置的安装········································P98、门框的固定和密封条的安装··································P109、门扇的悬吊·········································P1110、门扇的调整·······································P12、P1311、皮带部件的安装·····································P14、P1512、皮带张力的调整·······································P1613、门止动器的安装及调整····································P1614、地轮的安装及调整······································P1715、电动机装置的安装······································P1816、控制装置的安装·······································P1817、电源接线架与控制器及电机的连接·······························P1918、双门互锁连接图·······································P1919、接线架与传感器的接线····································P2020、半开允许外接开关连接····································P2021、控制装置与电锁的接线····································P2122、安全传感器（选配件）的安装·································P2223、安全传感器（选配件）的连接·································P2324、后备电源（选配件）的连接··································P2325、控制器控制门体运行流程···································P2426、开启和关闭的调整······································P2527、系统初始··········································P2528、运行异常情况及处理方法···································P26目录PDF文件使用"pdfFactoryPro"试用版本创建ÿwww.fineprint.com.cn特点手动推力整机消耗功率工作环境温度-20℃～+50℃密封性能气密性能稳定、可靠门扇重量门宽度净空结构宽度安装方式电源电压开门运行速度闭门运行速度开放时间DW=1070mm～W=2350mm～表面安装单扇型门体型式AC220±10%，50～60Hz紧闭力F＜150W2～20S（可调）250～550mm/s（可调）250～550cm/s（可调）先进的无刷电机，效率高，力矩大，寿命长。门扇四周围绕特殊橡胶密封条，气密性能稳定、可靠。三地轮的下导轨结构，满足门扇特殊轨迹运行要求。杠杆式拉手，为特殊情况下的手动推拉提供方便。圆弧型轨道的特定位置加工有圆弧凹槽，满足关闭时的密...
