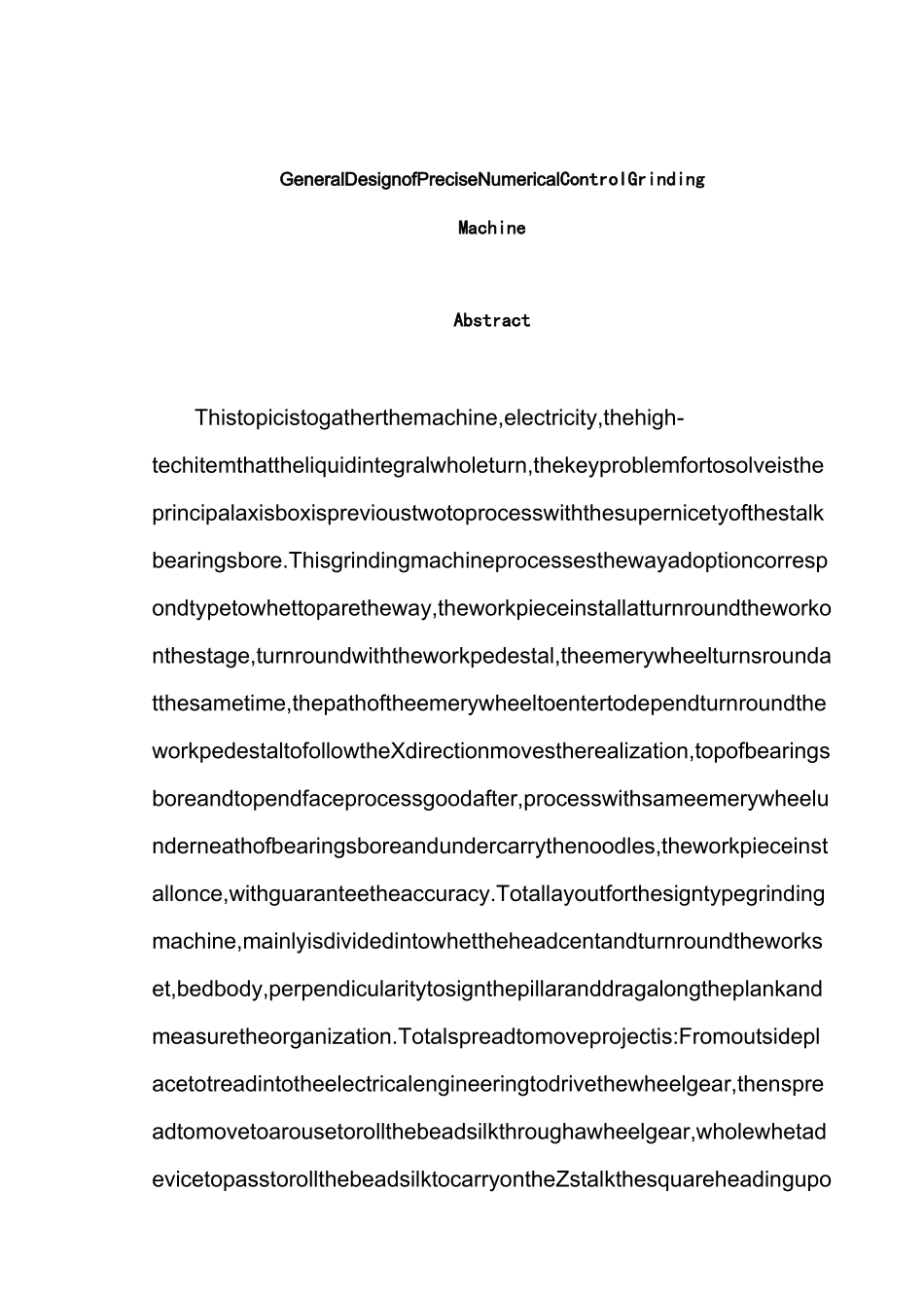

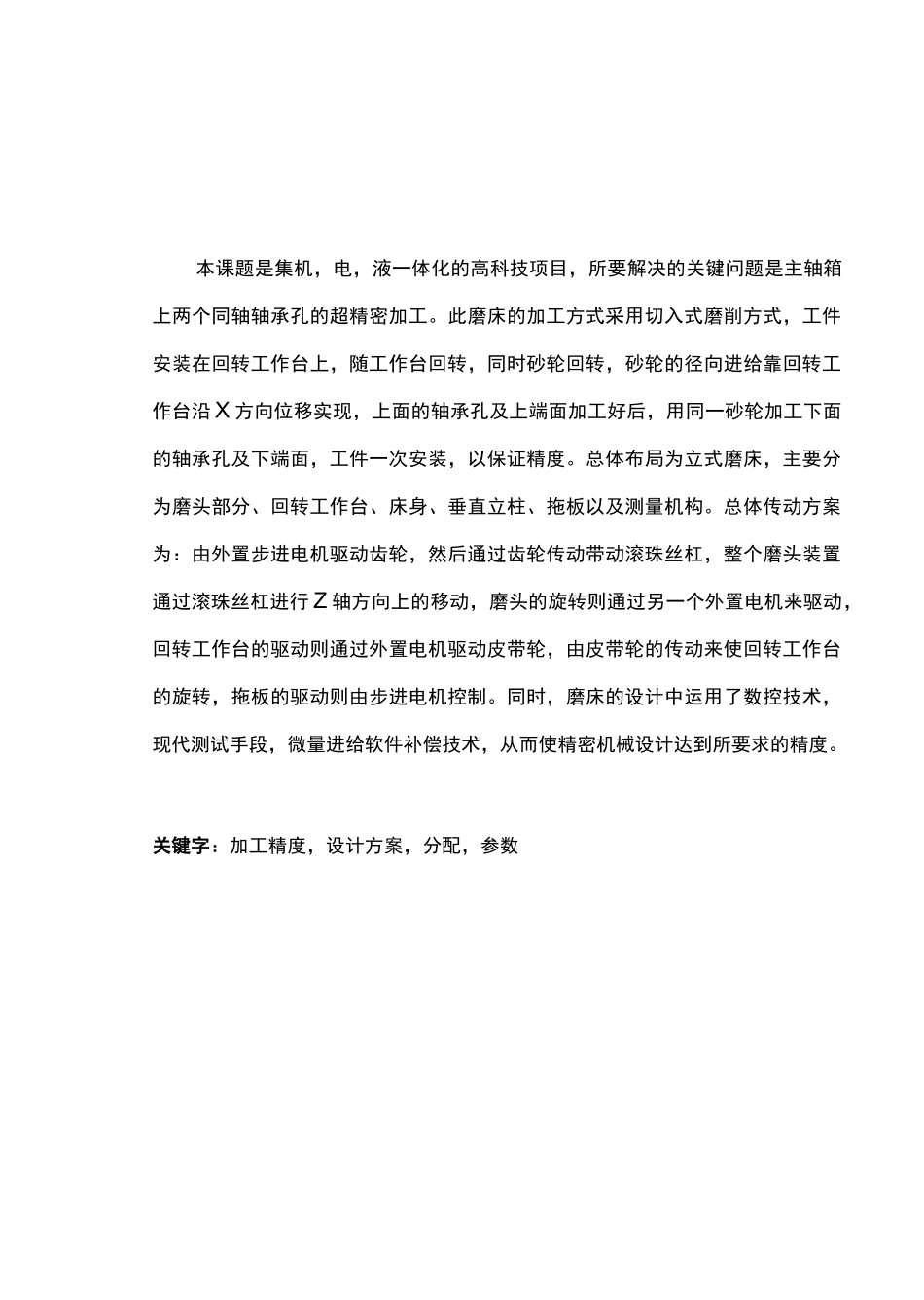

多年的企业咨询顾问经验,经过实战验证可以落地执行的卓越管理方案,值得您下载拥有本课题是集机,电,液一体化的高科技项目,所要解决的关键问题是主轴箱上两个同轴轴承孔的超精密加工。此磨床的加工方式采用切入式磨削方式,工件安装在回转工作台上,随工作台回转,同时砂轮回转,砂轮的径向进给靠回转工作台沿X方向位移实现,上面的轴承孔及上端面加工好后,用同一砂轮加工下面的轴承孔及下端面,工件一次安装,以保证精度。总体布局为立式磨床,主要分为磨头部分、回转工作台、床身、垂直立柱、拖板以及测量机构。总体传动方案为:由外置步进电机驱动齿轮,然后通过齿轮传动带动滚珠丝杠,整个磨头装置通过滚珠丝杠进行Z轴方向上的移动,磨头的旋转则通过另一个外置电机来驱动,回转工作台的驱动则通过外置电机驱动皮带轮,由皮带轮的传动来使回转工作台的旋转,拖板的驱动则由步进电机控制。同时,磨床的设计中运用了数控技术,现代测试手段,微量进给软件补偿技术,从而使精密机械设计达到所要求的精度。关键字:加工精度,设计方案,分配,参数GeneralDesignofPreciseNumericalControlGrindingMachineAbstractThistopicistogatherthemachine,electricity,thehigh-techitemthattheliquidintegralwholeturn,thekeyproblemfortosolveistheprincipalaxisboxisprevioustwotoprocesswiththesupernicetyofthestalkbearingsbore.Thisgrindingmachineprocessesthewayadoptioncorrespondtypetowhettoparetheway,theworkpieceinstallatturnroundtheworkonthestage,turnroundwiththeworkpedestal,theemerywheelturnsroundatthesametime,thepathoftheemerywheeltoentertodependturnroundtheworkpedestaltofollowtheXdirectionmovestherealization,topofbearingsboreandtopendfaceprocessgoodafter,processwithsameemerywheelunderneathofbearingsboreandundercarrythenoodles,theworkpieceinstallonce,withguaranteetheaccuracy.Totallayoutforthesigntypegrindingmachine,mainlyisdividedintowhettheheadcentandturnroundtheworkset,bedbody,perpendicularitytosignthepillaranddragalongtheplankandmeasuretheorganization.Totalspreadtomoveprojectis:Fromoutsideplacetotreadintotheelectricalengineeringtodrivethewheelgear,thenspreadtomovetoarousetorollthebeadsilkthroughawheelgear,wholewhetadevicetopasstorollthebeadsilktocarryontheZstalkthesquareheadingupofambulation,whettheheadtorevolvetothenpassanotheroutsideplacetheelectricalengineeringtodrive,turnroundtheworkpedestaltodrivethenthroughanoutsideplacetheelectricalengineeringtodrivetheleatherbeltround,fromtheleatherbeltroundspreadtomovetomaketheturn-overworkpedestalrevolve,dragalongtheknotholetodrivethenfromtreadintotheelectricalengineeringtocontrol.Atthesametime,madeuseofnumbertocontrolthetechniqueinthedesignofthegrindingmachine,moderntestmeans,entertocompensatetechniqueforsoftwarelittlebylittle,thusmakeprecisemachinethedesignattainstheaccuracyrequest.KeyWords:AccuracyofProcess,ProjectDesign,Allotment,Parameter精密数控磨床的总体设计0引言回顾即将过去的20世纪,人类取得的每一项重大科技成果,无不与制造技术,尤其与超精密加工技术密切相关。在某种意义上,超精密加工担负着支持最新科学发现和发明的重要使命。超精密加工技术在航天运载工具、武器研制、卫星研制中有着极其重要的作用。有人对海湾战争中美国及盟国武器系统与超精密加工技术的关系做了研究,发现其中在间谍卫星、超视距空对空攻击能力、精确制导的对地攻击能力、夜战能力和电子对抗技术方面,与超精密加工技术有密切的关系。可以说,没有高水平的超精密加工技术,就不会有真正强大的国防。超精密磨床要求其数控系统具有高编程分辨率(1nm)和快速插补功能(插补周期0.1ms)。基于PC机和数字信号处理芯片(DSP)的主从式硬件结构是超精密数控的潮流,如美国的NANOPATH和PRECITECH'SULTRA...
