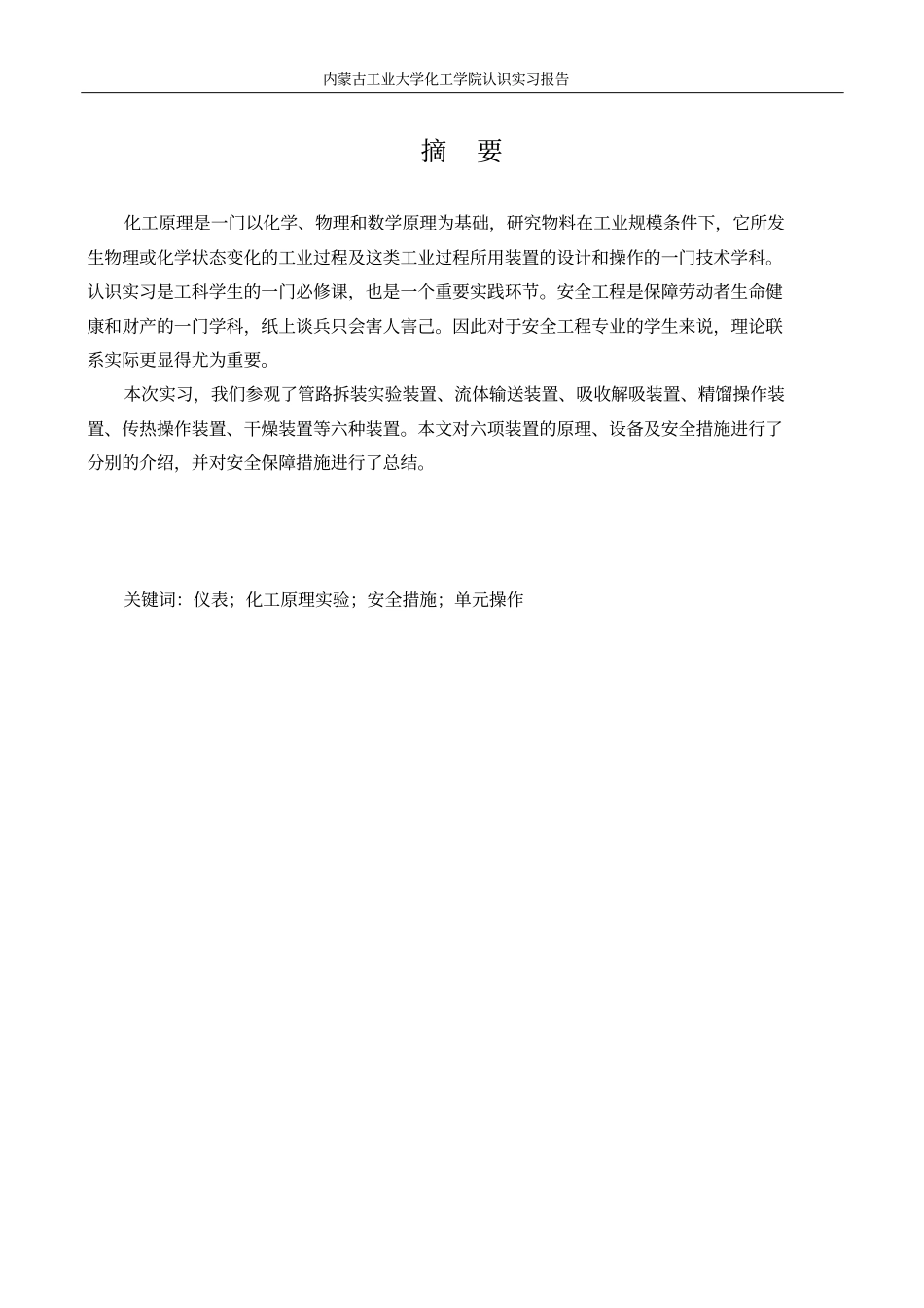

二零一三年一月化工学院本科认识实习报告学生姓名系别：专业：班级：实习地点：化工学院实训中心指导教师：高智老师学校代码：10128学号：201020518026内蒙古工业大学化工学院认识实习报告摘要化工原理是一门以化学、物理和数学原理为基础，研究物料在工业规模条件下，它所发生物理或化学状态变化的工业过程及这类工业过程所用装置的设计和操作的一门技术学科。认识实习是工科学生的一门必修课，也是一个重要实践环节。安全工程是保障劳动者生命健康和财产的一门学科，纸上谈兵只会害人害己。因此对于安全工程专业的学生来说，理论联系实际更显得尤为重要。本次实习，我们参观了管路拆装实验装置、流体输送装置、吸收解吸装置、精馏操作装置、传热操作装置、干燥装置等六种装置。本文对六项装置的原理、设备及安全措施进行了分别的介绍，并对安全保障措施进行了总结。关键词：仪表；化工原理实验；安全措施；单元操作内蒙古工业大学化工学院认识实习报告目录前言······························1第一章管路拆装实验装置······················21.1管件···························21.2阀门···························21.3仪表···························21.31检测仪表·······················21.32仪表的选用与安装···················3第二章流体输送装置························32.1流体输送装置单元操作原理·················32.2流体输送装置单元操作设备·················42.21单元操作主要设备及运行流程··············42.22离心泵结构······················42.3流体输送装置安全措施···················5第三章吸收解吸装置························53.1吸收解吸装置单元操作原理·················53.2吸收解吸装置单元操作设备及运行··············53.3吸收解吸装置安全措施···················6第四章精馏操作装置························64.1精馏操作装置单元操作原理·················64.2精馏操作装置单元操作设备·················74.3精馏操作装置安全措施···················7第五章传热操作装置························75.1传热操作装置单元操作原理·················75.2传热操作装置单元操作设备·················85.3传热操作装置安全措施···················8第六章干燥装置··························86.1干燥装置单元操作原理···················86.2干燥装置单元操作设备···················106.21单元操作主要设备及运行流程··············106.22流化床结构······················10内蒙古工业大学化工学院认识实习报告6.3干燥装置安全措施······················11第七章生产过程中安全措施总结···················127.1操作平台的安全保障措施··················127.2设备的安全保障措施····················127.3工艺流程的安全保障措施··················12生产实习心得体会·························13参考文献·····························14内蒙古工业大学化工学院认识实习报告1前言2013年1月6日，我们在内蒙古工业大学，化工学院实训中心进行了本学期的认识实习。认识实习是工科学生的一门必修课，也是一个重要实践...
