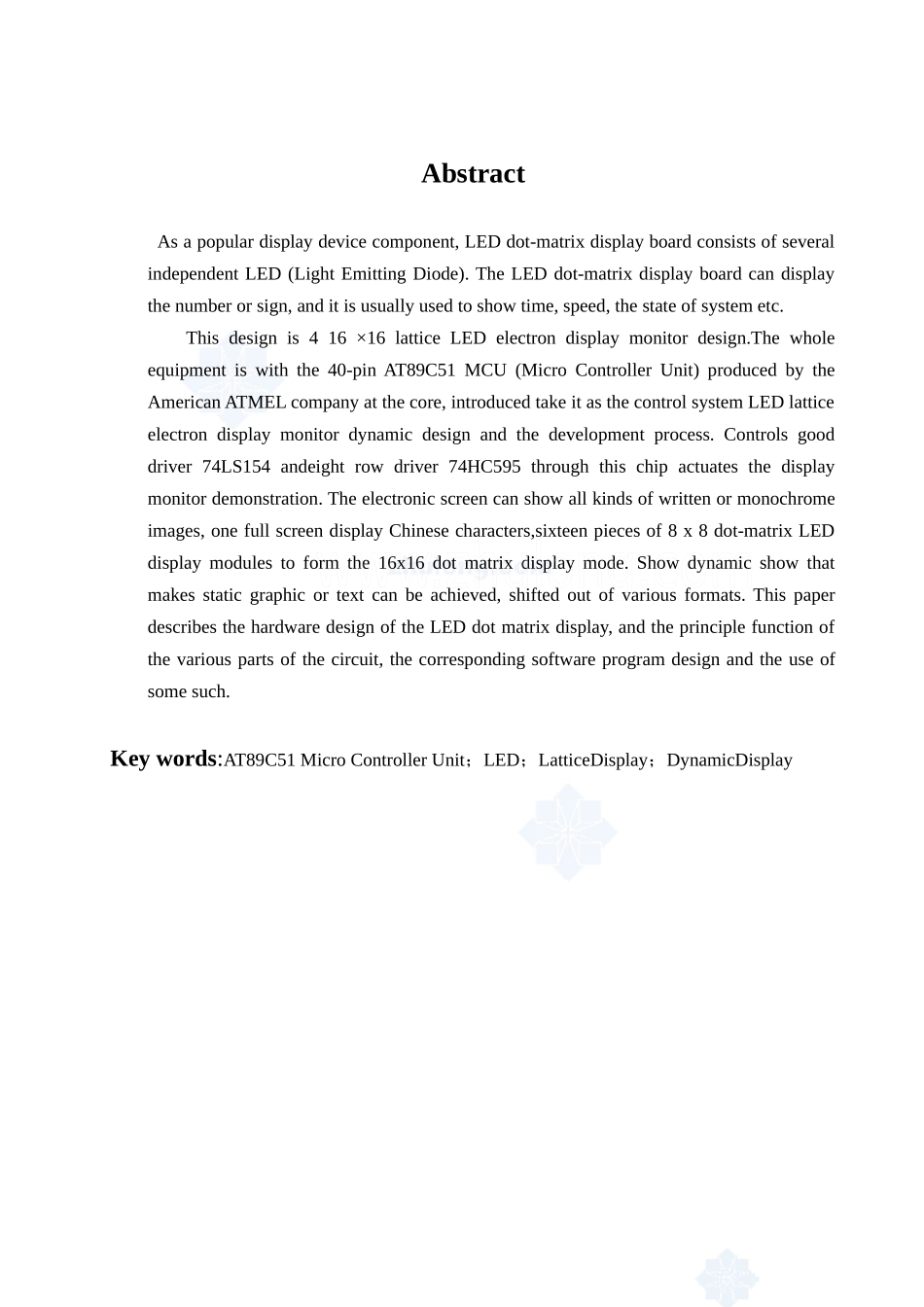

湖南工业职业技术学院 Hunan Industry Polytechnic毕业实践类 别: 工程实训 题 目: LED 电子显示屏的设计 系 名 称: 电气工程系 专业及班级: 电气自动化技术电气 S2008-2 学生姓名: 戴宏民 学 号: 27 号 指导老师: 彭志刚 完成时间 2010 年 月 日摘 要LED 点阵显示屏作为一种新兴的显示器件,是由多个独立的 LED 发光二极管封装而成. LED 点阵显示屏可以显示数字或符号, 通常用来显示时间、速度、系统状态等。本设计是 4 个 16×16 点阵 LED 电子显示屏的设计。整机以美国 ATMEL 公司生产的 40脚单片机 AT89C51 为核心,介绍了以它为控制系统的 LED 点阵电子显示屏的动态设计和开发过程。通过该芯片控制一个行驱动器 74LS154 和八个列驱动器 74HC595 来驱动显示屏显示。该电子显示屏可以显示各种文字或单色图像,全屏能显示 4 个汉字,采用 16 块 8 x 8 点阵 LED 显示模块来组成 4 个 16x16 点阵显示模式。显示采用动态显示,使得图形或文字能够实现静止、移入移出等多种显示方式。文中详细介绍了 LED 点阵显示的硬件设计思路、硬件电路各个部分的功能及原理、相应软件的程序设计,以及使用说明等。关键词:AT89C51 单片机 LED 点阵显示 动态显示Abstract As a popular display device component, LED dot-matrix display board consists of several independent LED (Light Emitting Diode). The LED dot-matrix display board can display the number or sign, and it is usually used to show time, speed, the state of system etc. This design is 4 16 ×16 lattice LED electron display monitor design.The whole equipment is with the 40-pin AT89C51 MCU (Micro Controller Unit) produced by the American ATMEL company at the core, introduced take it as the control system LED lattice electron display monitor dynamic design and the development process. Controls good driver 74LS154 andeight row driver 74HC595 through this chip actuates the display monitor demonstration. The electronic screen can show all kinds of written or monochrome images, one full screen display Chinese chara...
