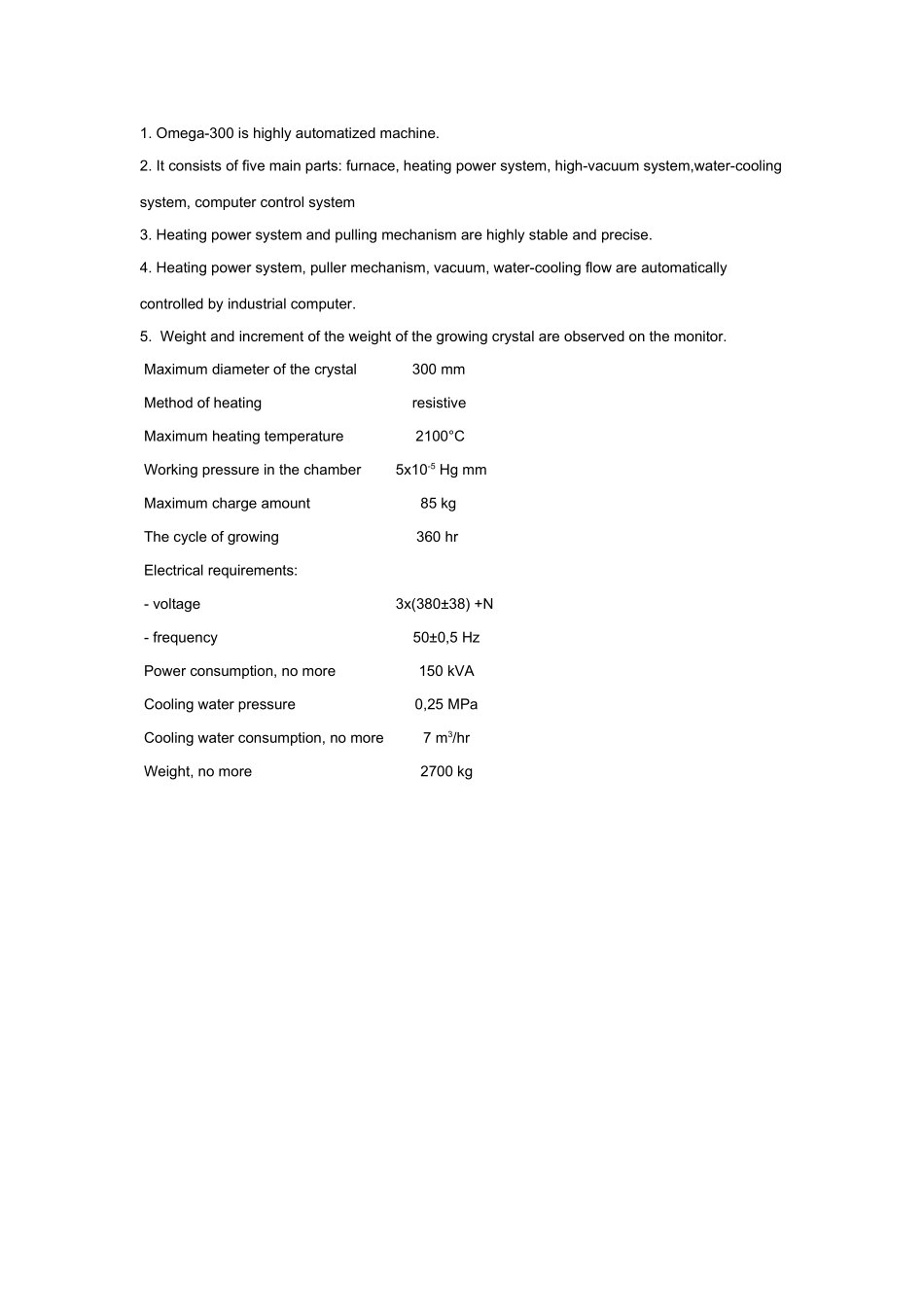

乌克兰国有企业中央设计机械局“顿涅茨”公司Company Name:State Enterprise Central Design Machinery Bureau "Donets" Street Address: 145g, Zveineka City: Lugansk Province/State: Luganskaya oblast Country/Region: Ukraine Zip:91033 Telephone:380-642-719599 Fax: 380-642-719599 Omega - 300 Crystal Growing Furnace"Omega-300" is mainly used for the production large dimension of single crystal of sapphire by the Kyropoulos method. 1. Omega-300 is highly automatized machine.2. It consists of five main parts: furnace, heating power system, high-vacuum system,water-cooling system, computer control system3. Heating power system and pulling mechanism are highly stable and precise.4. Heating power system, puller mechanism, vacuum, water-cooling flow are automatically controlled by industrial computer.5. Weight and increment of the weight of the growing crystal are observed on the monitor. Maximum diameter of the crystal 300 mm Method of heating resistive Maximum heating temperature2100°C Working pressure in the chamber 5x10-5 Hg mm Maximum charge amount 85 kg The cycle of growing 360 hr Electrical requirements: - voltage3x(380±38) +N - frequency50±0,5 Hz Power consumption, no more 150 kVA Cooling water pressure0,25 MPa Cooling water consumption, no more7 m3/hr Weight, no more 2700 kgOmega - 200 Crystal Growing Furnace"Omega-200" is mainly used for the production of single crystal of sapphire by the Kyropoulos method. 1. Omega-200 is highly automatized machine.2. It consists of five main parts: furnace, heating power system, high-vacuum system,water-cooling system, computer control system3. Heating power system and pulling mechanism are highly stable and precise.4. Heating power system, puller mechanism, vacuum, water-cooling flow are automatically ...
