基于单片机和VB的多点温度监控系统方案设计书VIP专享VIP免费

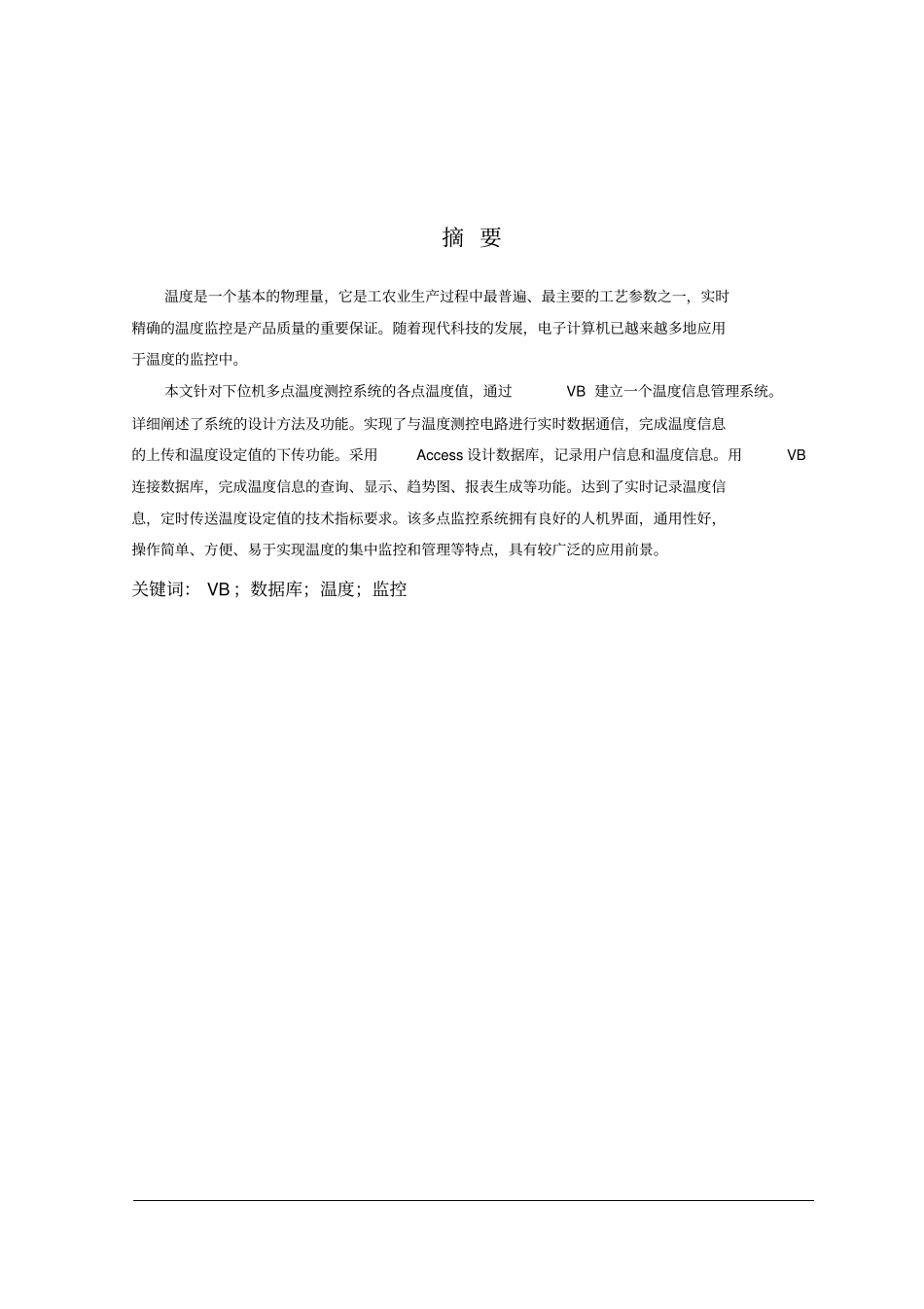

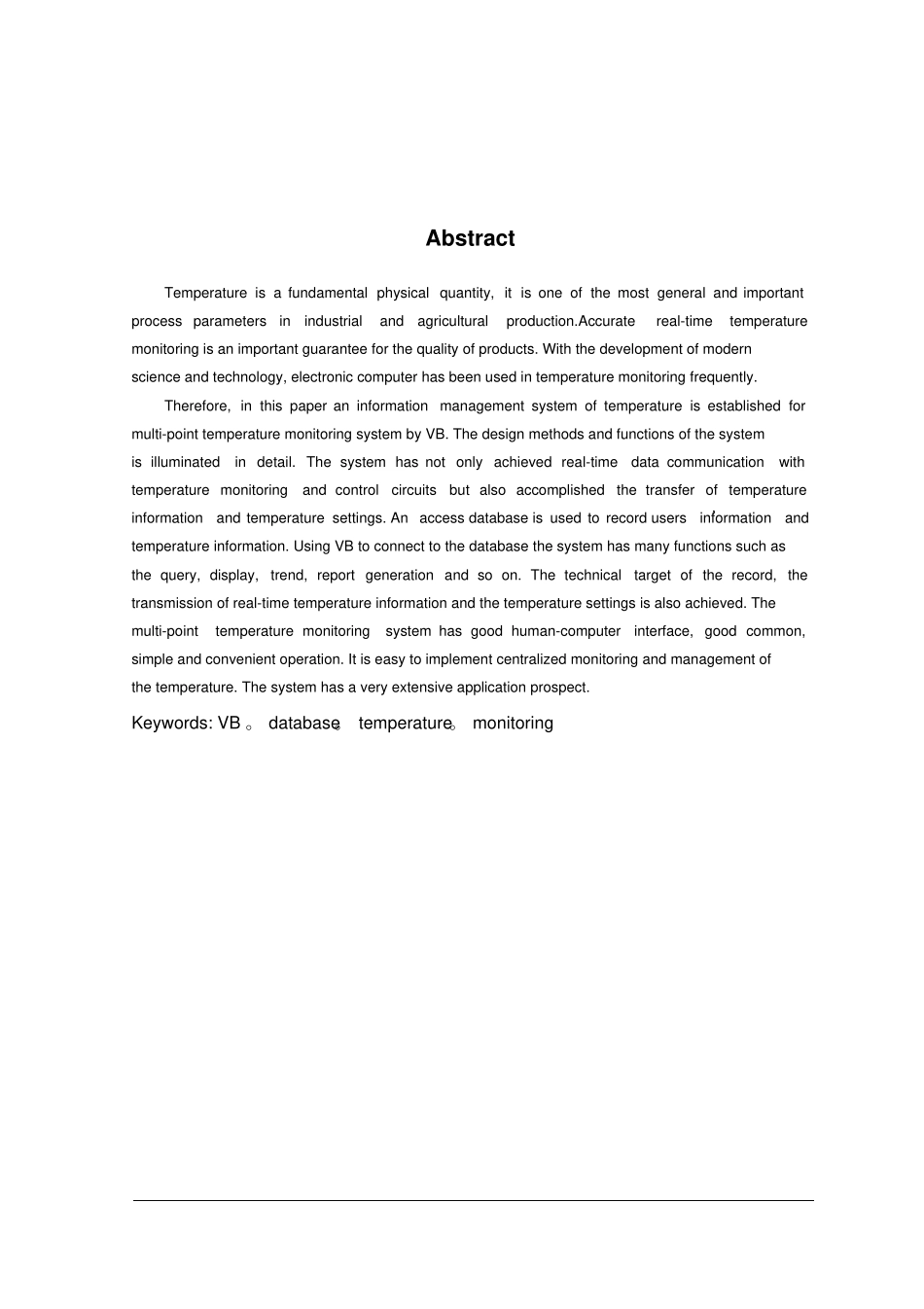

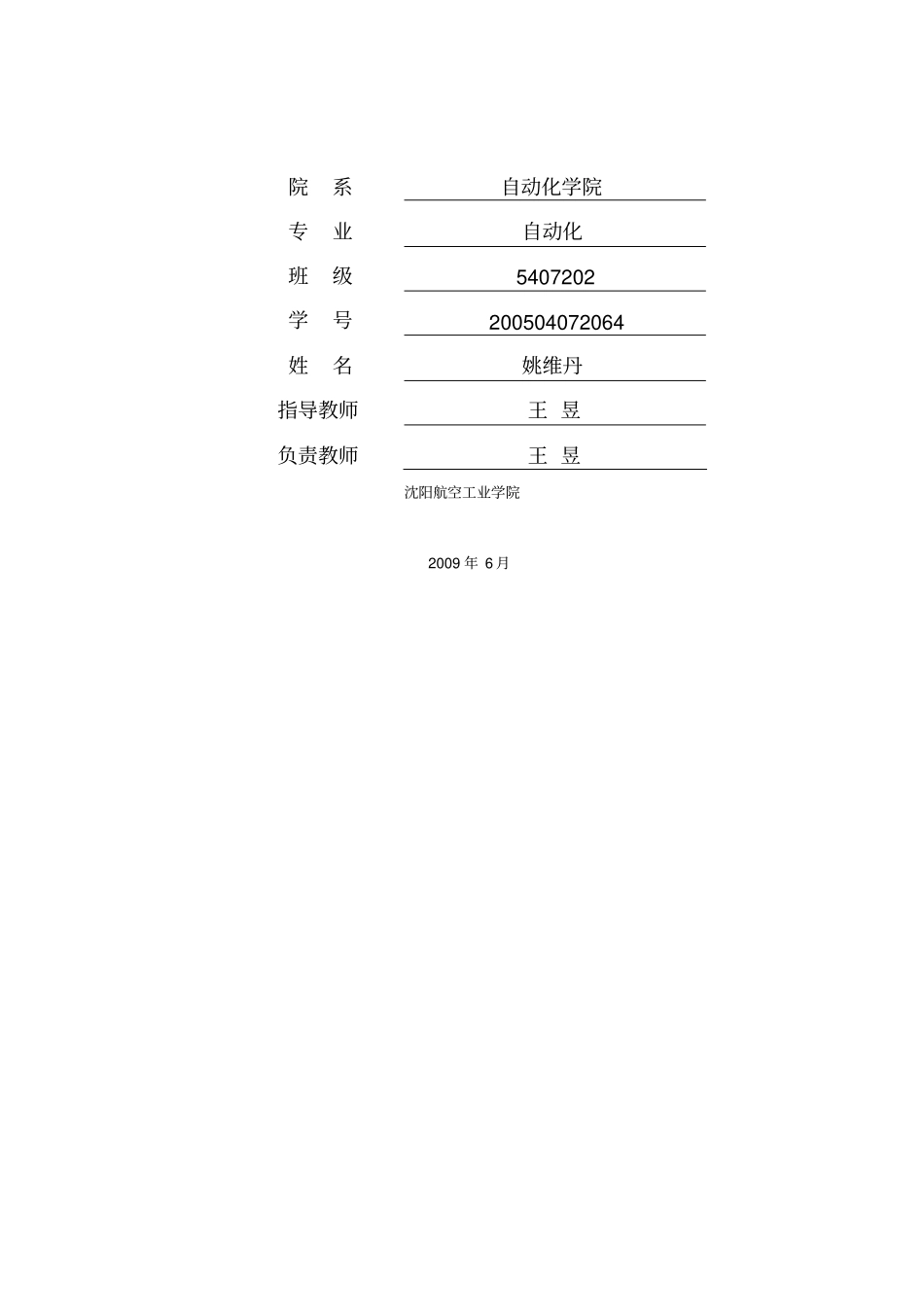

院系自动化学院专业自动化班级5407202 学号200504072064 姓名姚维丹指导教师王 昱负责教师王 昱沈阳航空工业学院2009 年 6 月摘 要温度是一个基本的物理量，它是工农业生产过程中最普遍、最主要的工艺参数之一，实时精确的温度监控是产品质量的重要保证。随着现代科技的发展，电子计算机已越来越多地应用于温度的监控中。本文针对下位机多点温度测控系统的各点温度值，通过VB 建立一个温度信息管理系统。详细阐述了系统的设计方法及功能。实现了与温度测控电路进行实时数据通信，完成温度信息的上传和温度设定值的下传功能。采用Access 设计数据库，记录用户信息和温度信息。用VB连接数据库，完成温度信息的查询、显示、趋势图、报表生成等功能。达到了实时记录温度信息，定时传送温度设定值的技术指标要求。该多点监控系统拥有良好的人机界面，通用性好，操作简单、方便、易于实现温度的集中监控和管理等特点，具有较广泛的应用前景。关键词： VB ；数据库；温度；监控Abstract Temperature is a fundamental physical quantity, it is one of the most general and important process parameters in industrial and agricultural production.Accurate real-time temperature monitoring is an important guarantee for the quality of products. With the development of modern science and technology, electronic computer has been used in temperature monitoring frequently.Therefore, in this paper an information management system of temperature is established for multi-point temperature monitoring system by VB. The design methods and functions of the system is illuminated in detail. The system has not only achieved real-time data communication with temperature monitoring and control circuits but also accomplished the transfer of temperature information and temperature settings. An access database is used to record users’ information and temperature information. Using VB to connect to the database the system has many functions such as the query, display, trend, report generation and so on. The technical targ...
