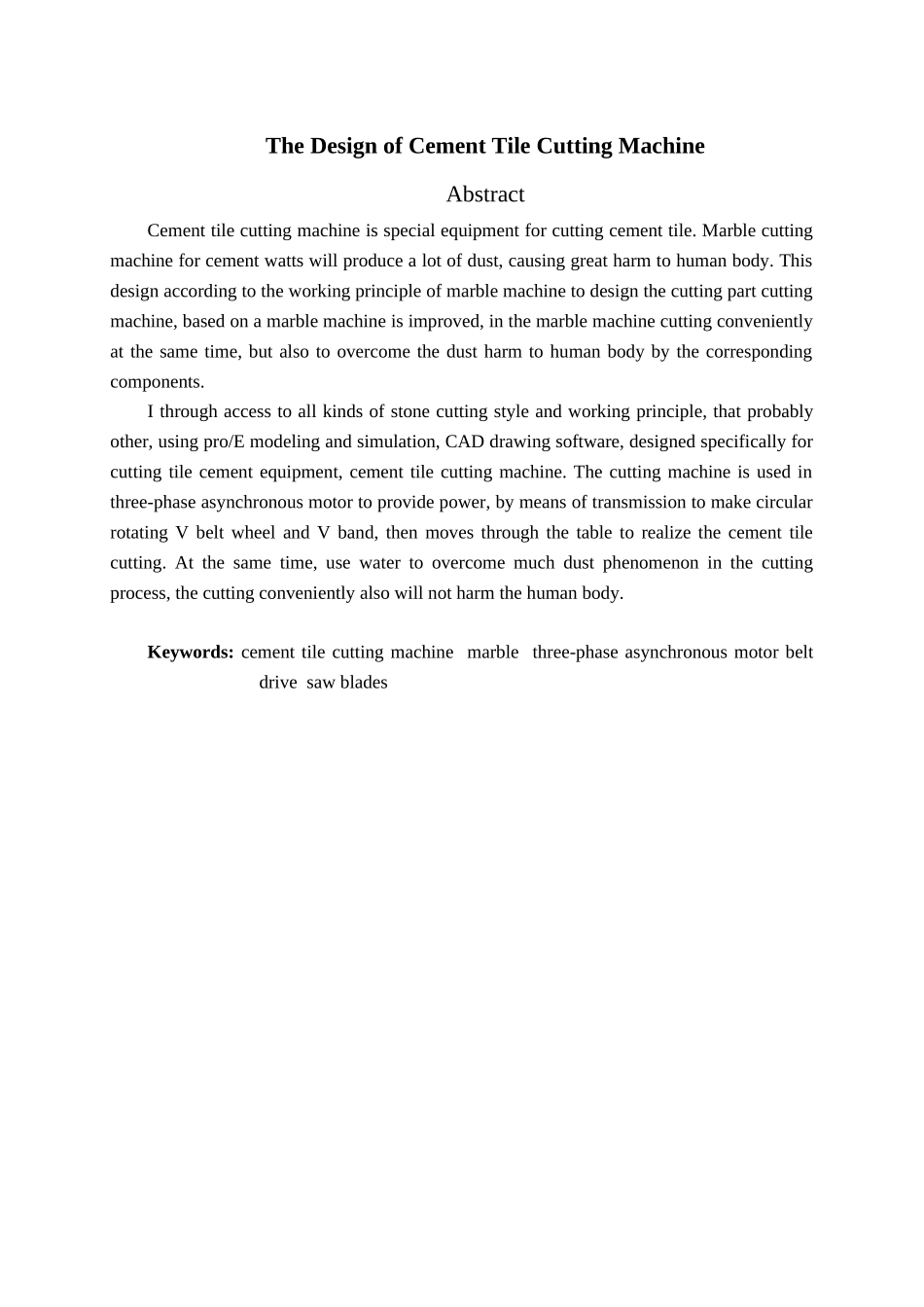

毕 业 论 文论文题目 水泥瓦切割机设计 系 别 电子信息工程系 专 业 机械制造设计及其自动化 班 级 学 号 学生姓名 指导教师（签名） 完成时间 2013 年 5 月摘要水泥瓦切割机是专门用来切割水泥瓦的设备。云石机切割水泥瓦时会产生很多粉尘，对人体造成极大的危害。本设计依照云石机的工作原理来设计切割机的切割部分，在云石机的基础上还做了改进，在保留云石机方便切割的同时，还能通过相应的部件来克服粉尘对人体的危害。本人通过查阅各类石材切割机的造型及工作原理，得出了大概造型，借助 pro/E建模仿真、CAD 绘图等软件，设计出了专门用来切割水泥瓦的设备----水泥瓦切割机。该切割机是用三相异步电动机来提供动力，借助 V 带轮和 V 带的传动来使圆锯片旋转，再通过工作台的移动来实现水泥瓦的切割的。同时用水来克服切割过程中产生的多灰尘现象，在方便切割的同时也不会对人体产生伤害。关键词：水泥瓦切割机； 云石机； 三相异步电机； 带轮传动； 圆锯片The Design of Cement Tile Cutting MachineAbstractCement tile cutting machine is special equipment for cutting cement tile. Marble cutting machine for cement watts will produce a lot of dust, causing great harm to human body. This design according to the working principle of marble machine to design the cutting part cutting machine, based on a marble machine is improved, in the marble machine cutting conveniently at the same time, but also to overcome the dust harm to human body by the corresponding components.I through access to all kinds of stone cutting style and working principle, that probably other, using pro/E modeling and simulation, CAD drawing software, designed specifically for cutting tile cement equipment, cement tile cutting machine. The cutting machine is used in three-phase asynchronous motor to provide power, by means of transmission to make circular rotating V belt wheel and V band, then moves through the table to realize the cement tile cutting. At the same time, use water...
