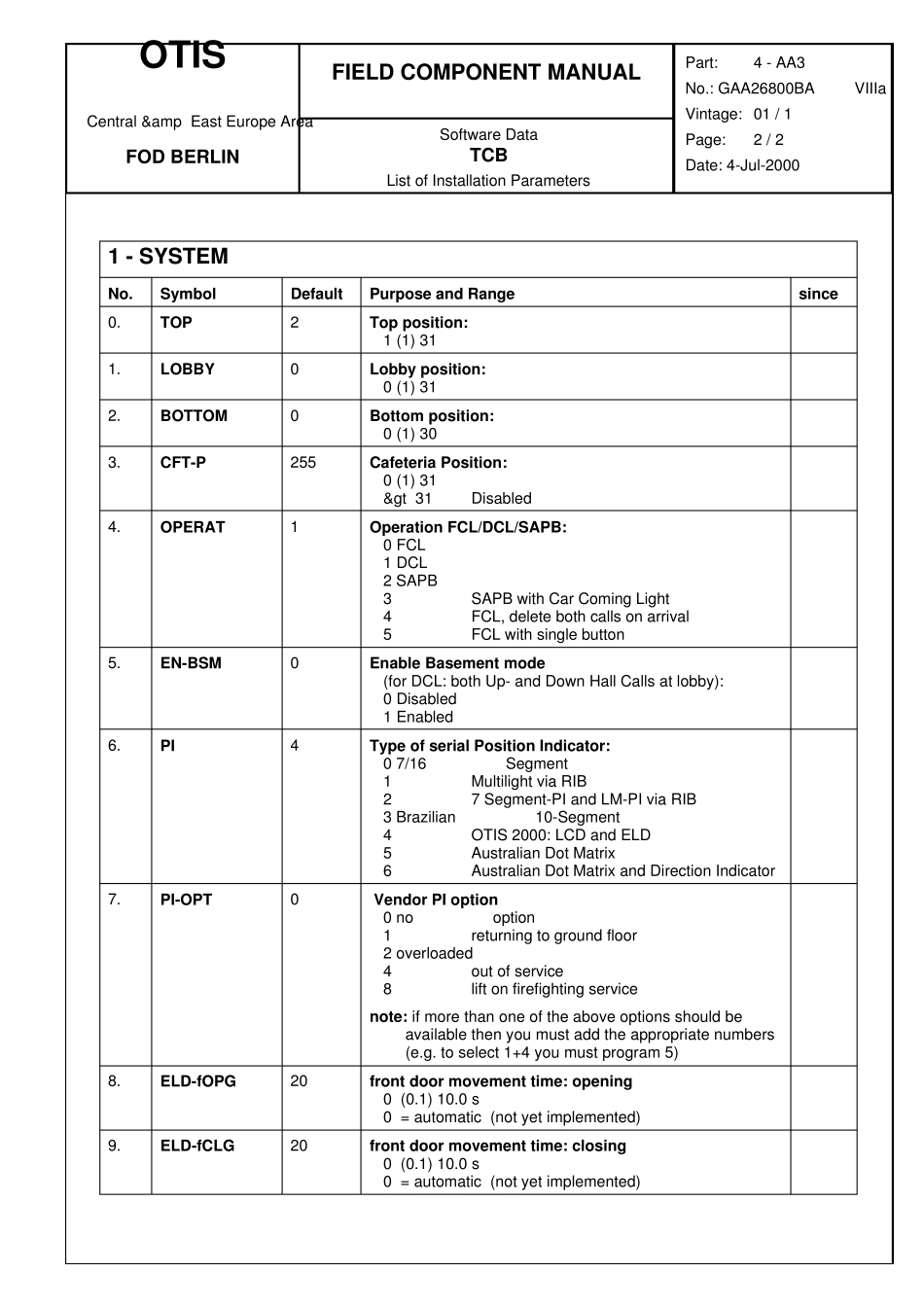

OTIS Central & East Europe Area FOD BERLIN FIELD COMPONENT MANUAL Software Data TCB List of Installation Parameters Part: 4 - AA3 No.: GAA26800BA VIIIaVintage: 01 / 1 Page: 1 / 1 Date: 4-Jul-2000 TCB List of Installation Parameters Copyright 2000, OTIS GmbH & Co. OHG Berlin. No part of this document may be copied or reproduced in any form or by any means without the prior written consent of OTIS GmbH.Authorization Date D1: 29-Feb-2000 Running on PCB: GAA 26800 BA Software Version: GAA 30084 AAB Document Revision : Date Au thor Page Comment 20-Jun-2000 A. Gerwing / G. Priebe 1 - 28 Original Document OTIS Central & East Europe Area FOD BERLIN FIELD COMPONENT MANUAL Software Data TCB List of Installation Parameters Part: 4 - AA3 No.: GAA26800BA VIIIaVintage: 01 / 1 Page: 2 / 2 Date: 4-Jul-2000 1 - SYSTEM No. Symbol Default Purpose and Range since 0. TOP 2 Top position: 1 (1) 31 1. LOBBY 0 Lobby position: 0 (1) 31 2. BOTTOM 0 Bottom position: 0 (1) 30 3. CFT-P 255 Cafeteria Position: 0 (1) 31 > 31 Disabled 4. OPERAT 1 Operation FCL/DCL/SAPB: 0 FCL 1 DCL 2 SAPB 3 SAPB with Car Coming Light 4 FCL, delete both calls on arrival 5 FCL with single button 5. EN-BSM 0 Enable Basement mode (for DCL: both Up- and Down Hall Calls at lobby): 0 Disabled 1 Enabled 6. PI 4 Type of serial Position Indicator: 0 7/16 Segment 1 Multilight via RIB 2 7 Segment-PI and LM-PI via RIB 3 Brazilian 10-Segment 4 OTIS 2000: LCD and ELD 5 Australian Dot Matrix 6 Australian Dot Matrix and Direction Indicator 7. PI-OPT 0 Vendor PI option 0 no option 1 returning to ground floor 2 overloaded 4 out of service 8 lift on firefighting service note: if more than one of the above options should be ava...
